BAKTH-2047FH Detachable & SMBus-Compliant Smart Battery Pack With Global Certifications
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH/OEM/Neutral |
| Certification | Comply with CE/FCC/IEC62133/UN38.3/PSE/UKCA/REACH/RoHS/ (EU) 2023/1542 |
| Model Number | BAKTH-2047FH |
| Minimum Order Quantity | 5-500PCS |
| Price | USD73.1-USD100.35/PC |
| Packaging Details | Standard Export Packing |
| Delivery Time | 10-25 working days |
| Payment Terms | ,T/T |
| Supply Ability | Daily Delivery Capability: Approx. 1,800 units/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
BAKTH-2047FH Detachable & SMBus-Compliant Smart Battery Pack With Global Certifications
The BAKTH-2047FH leverages Panasonic cells, renowned for their industry-leading energy density and stability. This ensures your apparatus operates at peak performance throughout extended examination sessions. With the ability to retain up to 80% of its initial capacity after 500 cycles, the BAKTH-2047FH offers longevity that matches its power.
Specifications
| Nominal voltage | 7.2V | Nominal capacity | 10350mAh |
| Max discharge current | 10A | Cycle life | 500 cycles >80% |
| Max charge current | 7.24A | Max charge voltage | 8.4V |
| Storage temperature | -20°C~50°C(Maximum) -20°C~25°C(Recommend) | ||
| Internal resistance | ≤100mΩ | Weight | 150±10g |

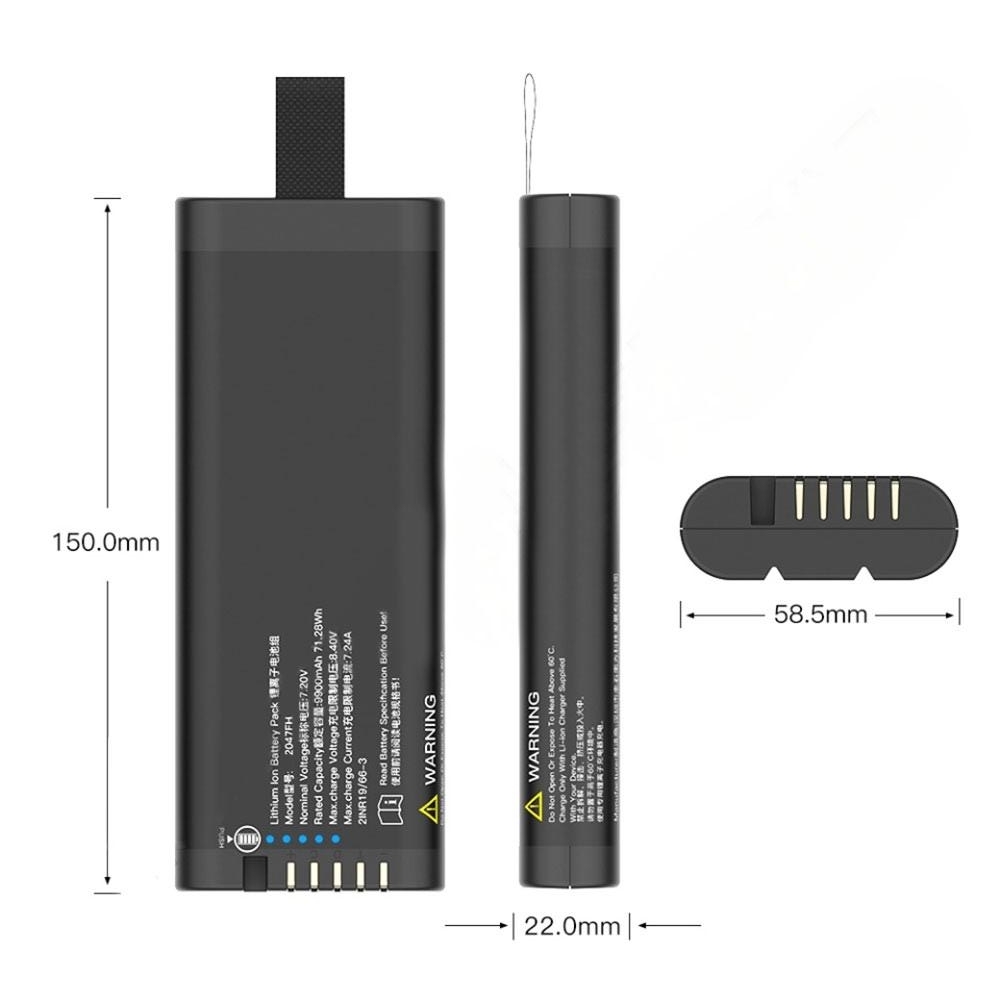

| Dimensions | Length 150.0mm ± 0.3mm Width 58.5mm ± 0.3mm Thickness 22.0mm ± 0.3mm | ||
| Operating temperature | 0-50℃(Charge) -20-60℃(Discharge) | ||
| Interface |  |
||
Key Features
- 2S3P Standard Li-ion Battery Pack
- Detachable Design
- Global Safety and Transport Certified
- SMBus V1.1 Compliant Smart Battery
- Integrated LED Battery Indicator
- Multiple safety redundancy design for fail-safe operation
- Comprehensive protection against over-voltage, over-current, and reverse connection
- Temperature monitoring capability for the host device
- Worldwide approvals including CE/FCC/IEC62133/UN38.3/PSE and UKCA
User-Friendly Design
- 5-pin blade connectors for secure connections
- Easy-to-disassemble design for simple maintenance
- Compatible with CH047D/CH4040/CH40 charger for convenient recharging
Intelligent Power Management
- Multiple product profiles ensure high reliability and adaptability
- Power visualization features for at-a-glance status checks
- Reliable structural design for durability in clinical settings
Global Compliance and Availability
- Certified for use worldwide, meeting international safety standards
- No development, mill, or certification fees
- Stock readily available with no minimum order quantity (MOQ) limit
The 2047FH Standard Battery Pack represents the pinnacle of portable power solutions for apparatus. Its combination of advanced features, robust safety measures, and long-lasting performance make it the go-to choice for medical professionals requiring reliable and high-performance power sources.
Application
Portable equipment, Industry and medical field.
