High-performance 4S1P Detachable Lithium Battery Pack BAKTH-2034DH With Software BMS
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH/OEM/Neutral |
| Certification | Comply with CE/FCC/IEC62133/UN38.3/REACH/RoHS/ (EU) 2023/1542 |
| Model Number | BAKTH-2034DH |
| Minimum Order Quantity | 5-500PCS |
| Price | USD51.2-USD70.25/PC |
| Packaging Details | Standard Export Packing |
| Delivery Time | 10-25 working days |
| Payment Terms | T/T |
| Supply Ability | Daily Delivery Capability: Approx. 1,800 units/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description

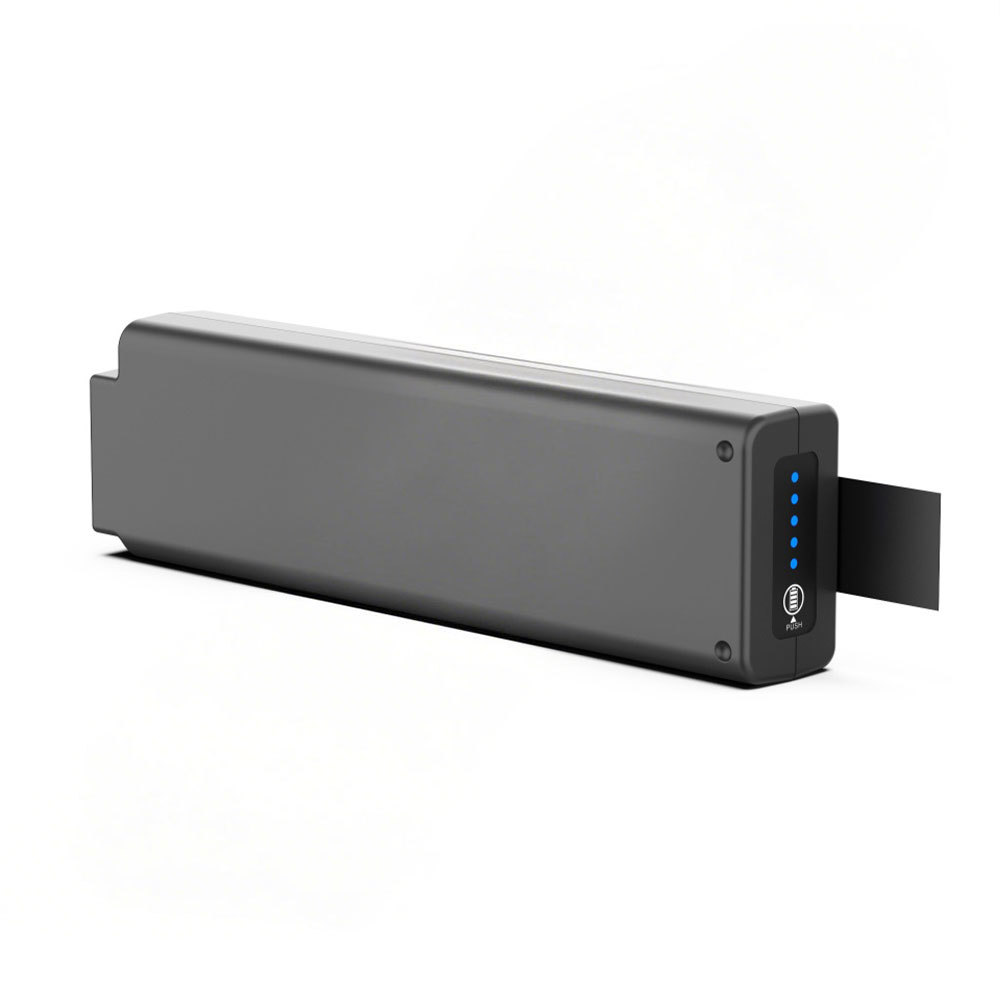

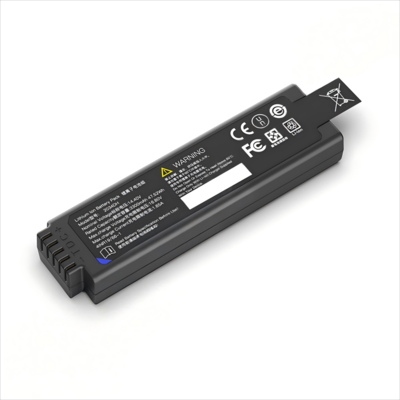

High-performance 4S1P Detachable Lithium Battery Pack BAKTH-2034DH With Software BMS
The BAKTH-2034DH is a professional-grade lithium battery pack featuring a 4S1P removable design with Panasonic's high energy density cells. This combination delivers exceptional stability and market-leading performance while meeting international regulatory compliance standards.
Technical Specifications
| Nominal voltage | 14.4V | Nominal capacity | 3450mAh |
| Max discharge current | 4A | Cycle life | 500 cycles >80% |
| Max charge current | 1.65A | Max charge voltage | 16.8V |

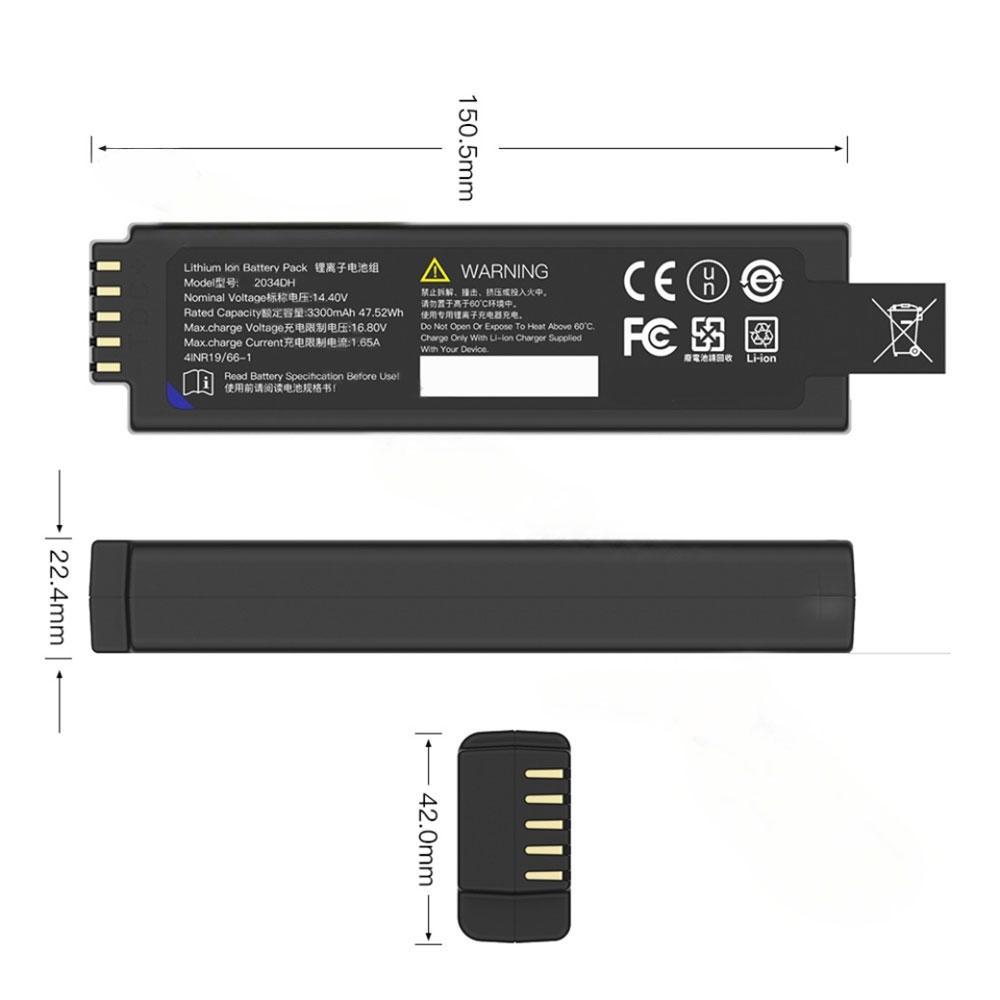

| Weight | 240±10g | Dimensions | 150.5mm ± 0.3mm (L) × 42.0mm ± 0.3mm (W) × 22.4mm ± 0.3mm (H) |
| Storage temperature | -20°C~50°C (Maximum) -20°C~25°C (Recommended) |
Internal resistance | ≤300mΩ |
| Operating temperature | 0-50°C (Charge) -20-60°C (Discharge) |
Interface |  |
Key Features
- 4S1P removable lithium battery configuration for flexible power solutions
- Global regulatory compliance for international applications
- Standard SMBus v1.1 interface for seamless device integration
- Integrated LED status indicator for real-time charge monitoring
- Premium Panasonic cells with exceptional energy density and stability
- JEITA charging optimization for maximum battery health
- Comprehensive protection against overcharge, overdischarge, overcurrent, overtemperature, and short circuit
- Built-in cell equalization function to extend battery lifespan
- TI precision power calculation technology for accurate SOC monitoring
Recommended Applications
- Class III medical devices
- Precision measuring instruments
- Industrial computing systems
- Non-destructive testing equipment
- Portable industrial and medical devices
Frequently Asked Questions
What kind of cell is used in this battery pack? What are the advantages?
The battery pack utilizes Panasonic's high energy density cells, which offer industry-leading stability and performance. These cells are ideal for high-demand applications and have passed multiple international safety certifications.
What is the interface and communication protocol of the battery pack?
The battery features a standard SMBus v1.1 interface, ensuring compatibility with most smart devices. The integrated LED indicators provide real-time state of charge (SOC) visibility.
How to ensure charging safety and battery life?
The battery follows JEITA charging optimization protocols and includes multiple protection mechanisms (overcharge/discharge, overcurrent, short-circuit, overtemperature) plus cell equalization to maximize lifespan.
Does it meet international regulations?
Yes, the design complies with global regulatory standards, making it suitable for international applications and export markets.
How accurate is the power monitoring?
Texas Instruments' precision power calculation technology provides highly accurate SOC monitoring with minimal error, allowing reliable power management through both LED indicators and system data.
