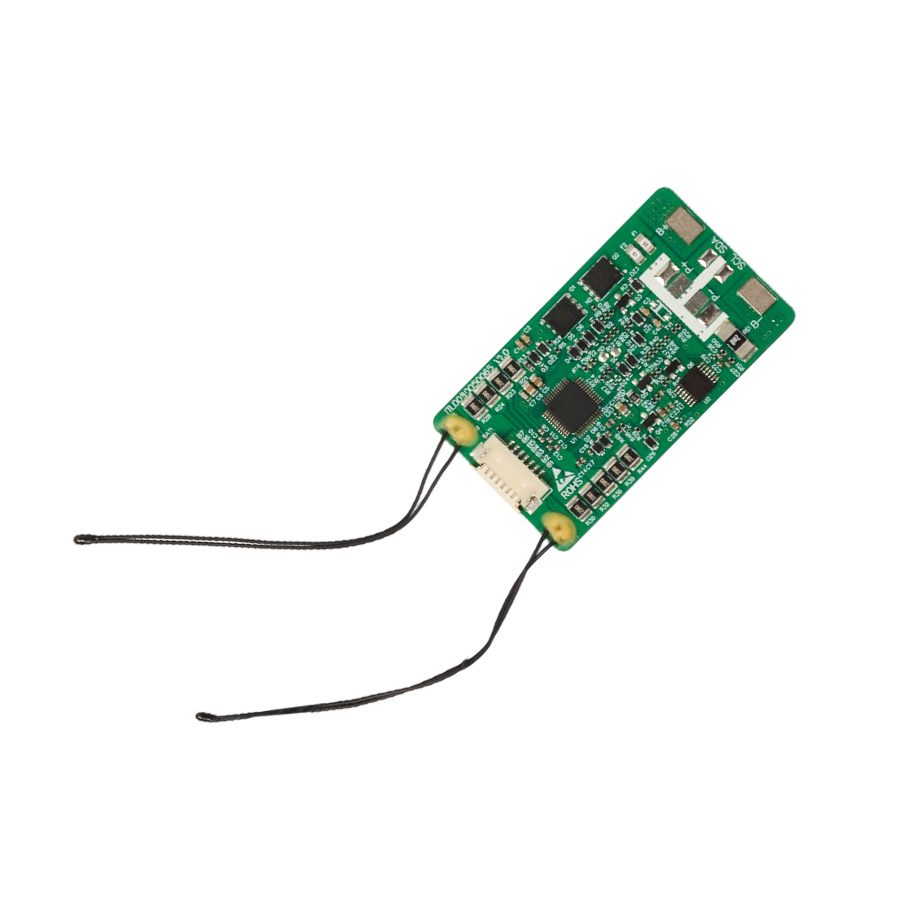

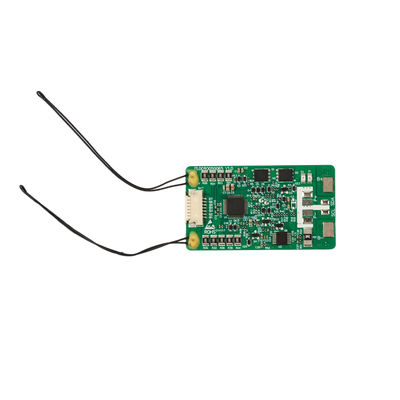

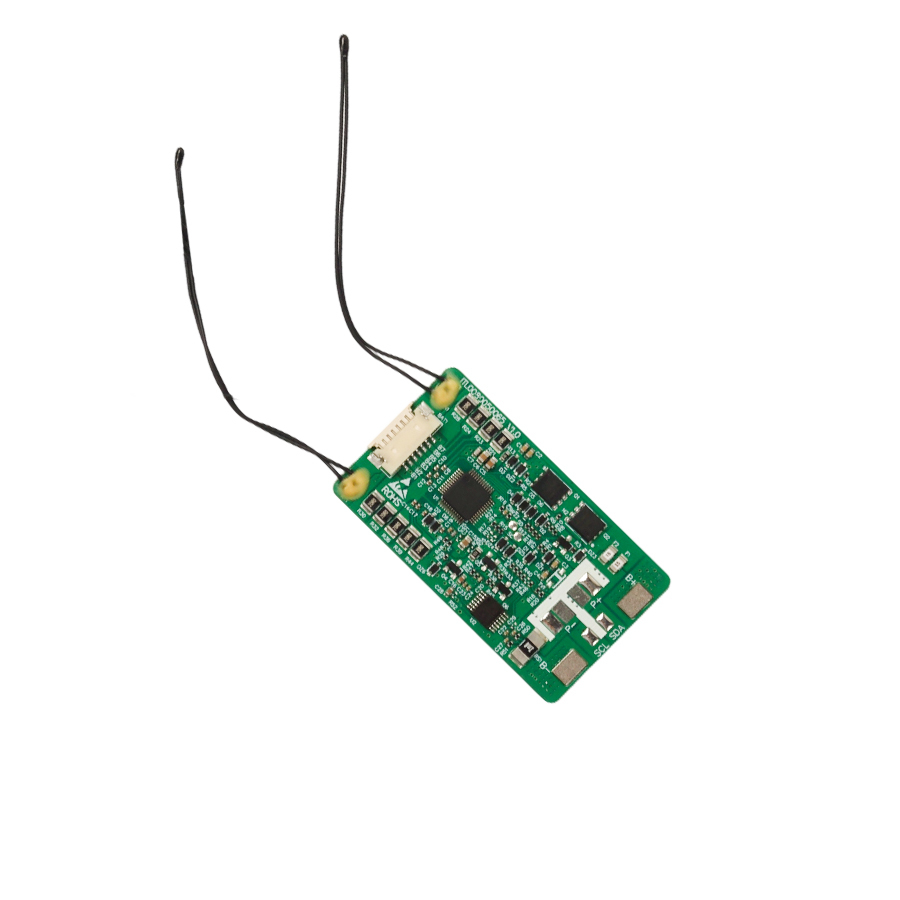

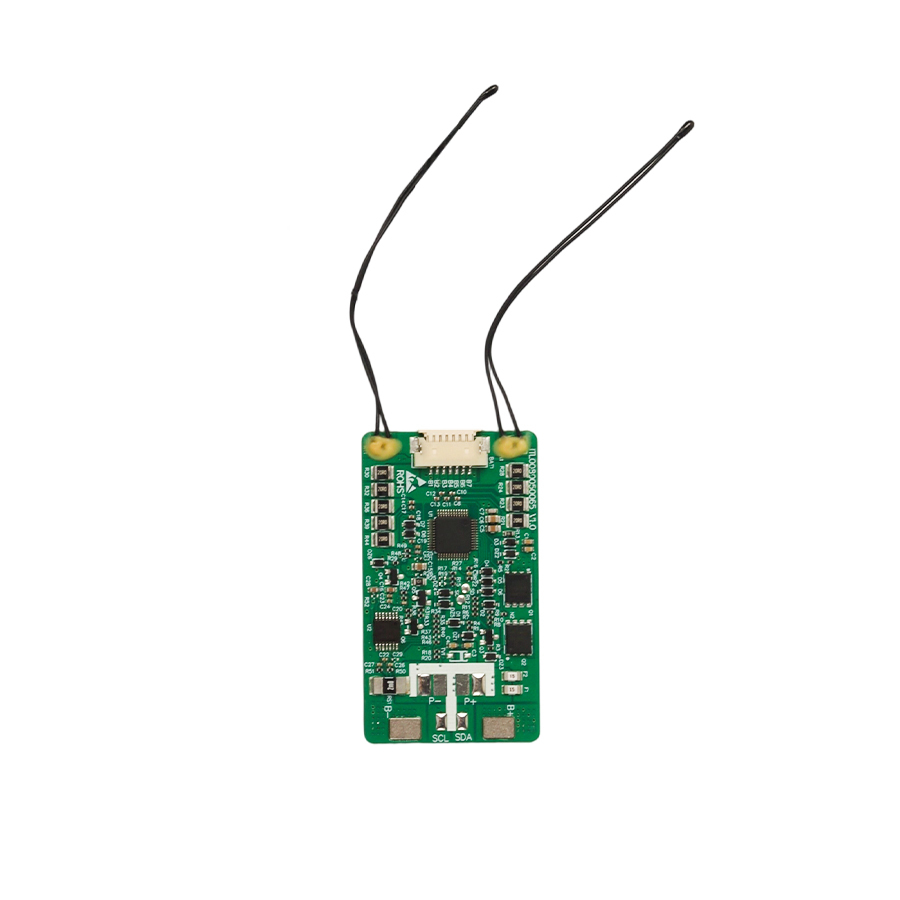

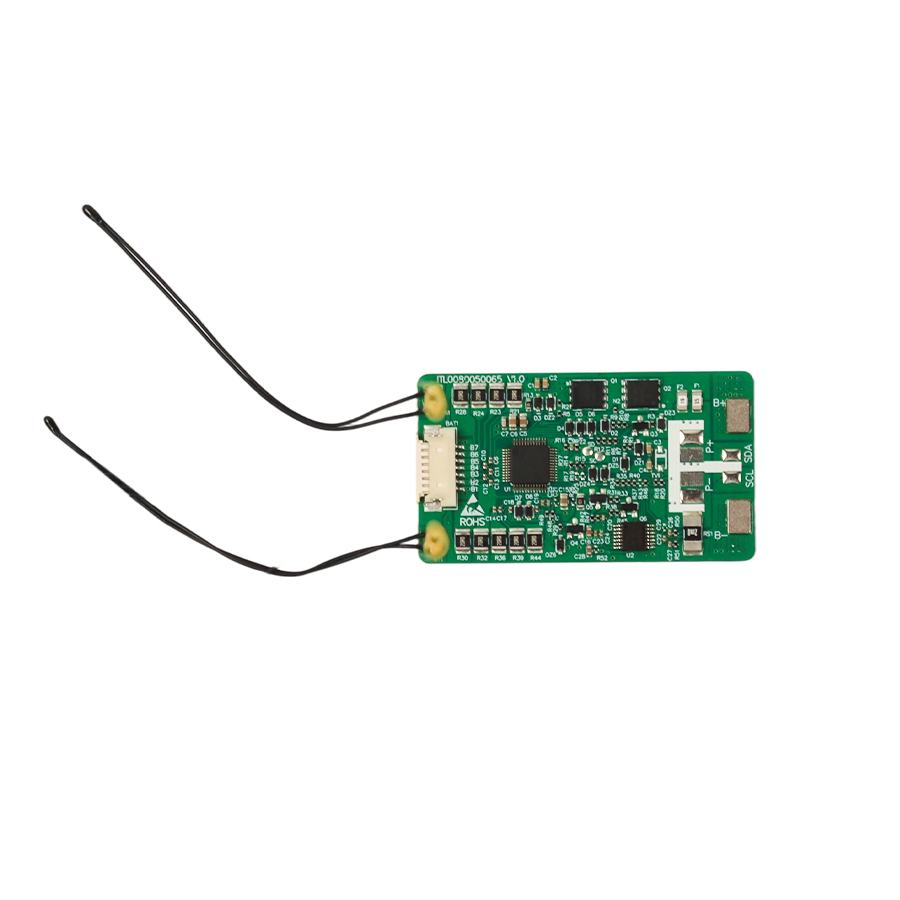

Factory Customized Wide Temperature Range Smart BMS 8S 15A With I2C Protocol
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | BAKTH |
| 모델 번호 | BAKTH-0080050065-01 |
| 최소 주문 수량 | 5PCS |
| 가격 | $18.8 |
| 배달 시간 | 15~18일 |
| 지불 조건 | 티/티 |
| 공급 능력 | 100000PCS/월 |
제품 상세 정보
| 강조하다 | 8S smart BMS with I2C protocol,wide temperature range BMS PCB,customized 15A battery management system |
||
|---|---|---|---|
제품 설명
Product Specifications
| Model Number | BAKTH-0080050065-01 |
|---|---|
| Series Supported | 8S |
| Continuous Discharge Current | 15A |
| Balancing Type | Active Balancing / Passive Balancing (Optional) |
| Customization Available | Yes |
| Warranty | 12 months |
Product Description
The 8S 15A Smart Battery Management System (BMS), featuring I2C communication protocol, offers robust performance across extreme temperatures, with adjustable discharge (-40°C to 65°C) and charge (-5°C to 55°C) ranges. Ideal for electric vehicles (EVs), energy storage systems, drones, and industrial equipment, this BMS ensures reliable operation in harsh environments while enabling precise monitoring and control via I2C.
Technical Specifications
Compatible Interface
I2C
Over Charge Detection
4.250V±0.050V (Adjustable)
Over Discharge Detection
2.83V±0.05V (Adjustable)
Over Current Discharge
18-23A (Adjustable)
Over Current Charge
3-7A (Adjustable)
Discharging Temperature
-40~65℃ (Adjustable)
Charge Temperature
-5~55℃ (Adjustable)
Dimensions
60mm × 34mm × 4.8mm
Certifications
IEC62133, UL2054
Protection Features
OV, UV, OC, SC, OT, Balance
Key Features
- Real-time monitoring of voltage, current, and temperature via I2C protocol for smart battery systems
- Comprehensive protection against over-voltage, under-voltage, short-circuit, over-current, and temperature extremes
- Optional active balancing function to extend battery pack lifespan and improve cell consistency
- Modular design for easy integration into various industrial and solar system applications
Application Scenarios
Energy Storage Systems (ESS)
Electric Power Tools
Home Solar Battery Systems
Drones
DIY Custom Li-ion Battery Packs
