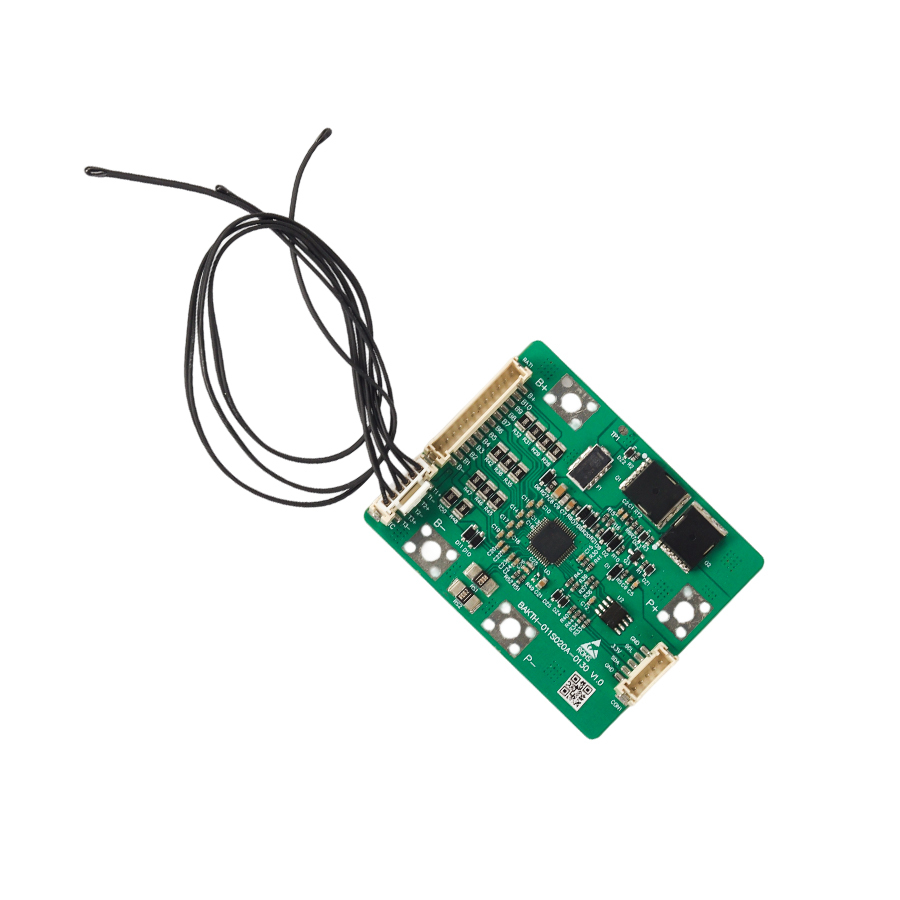

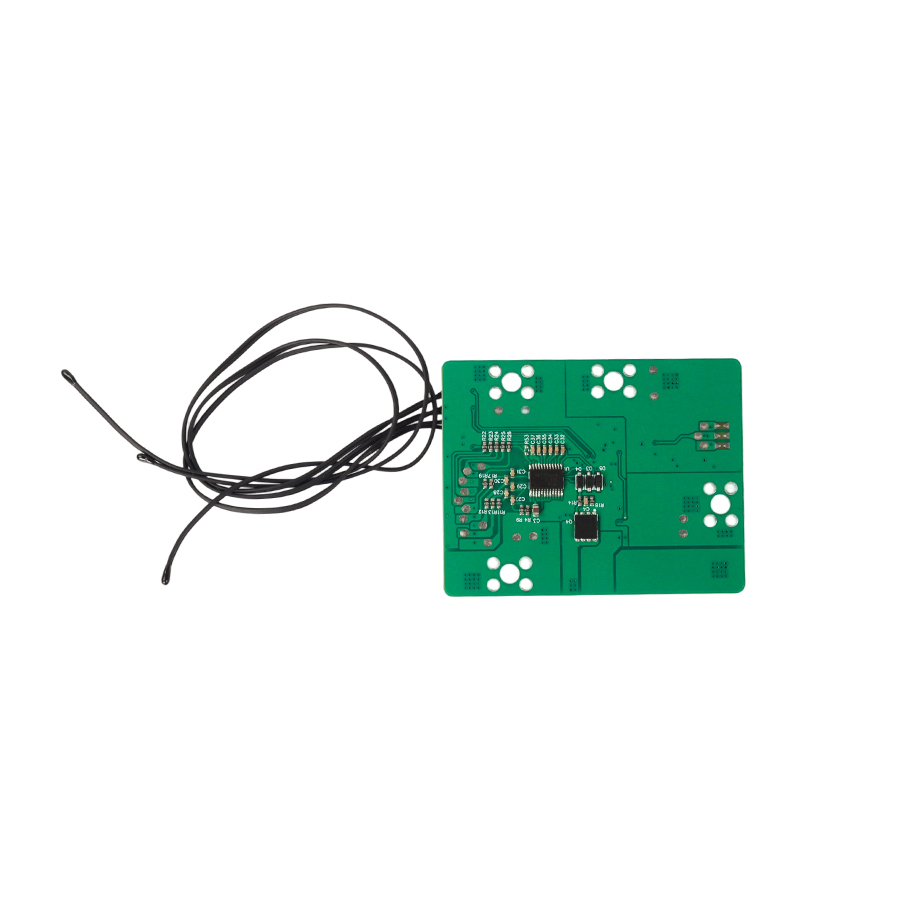

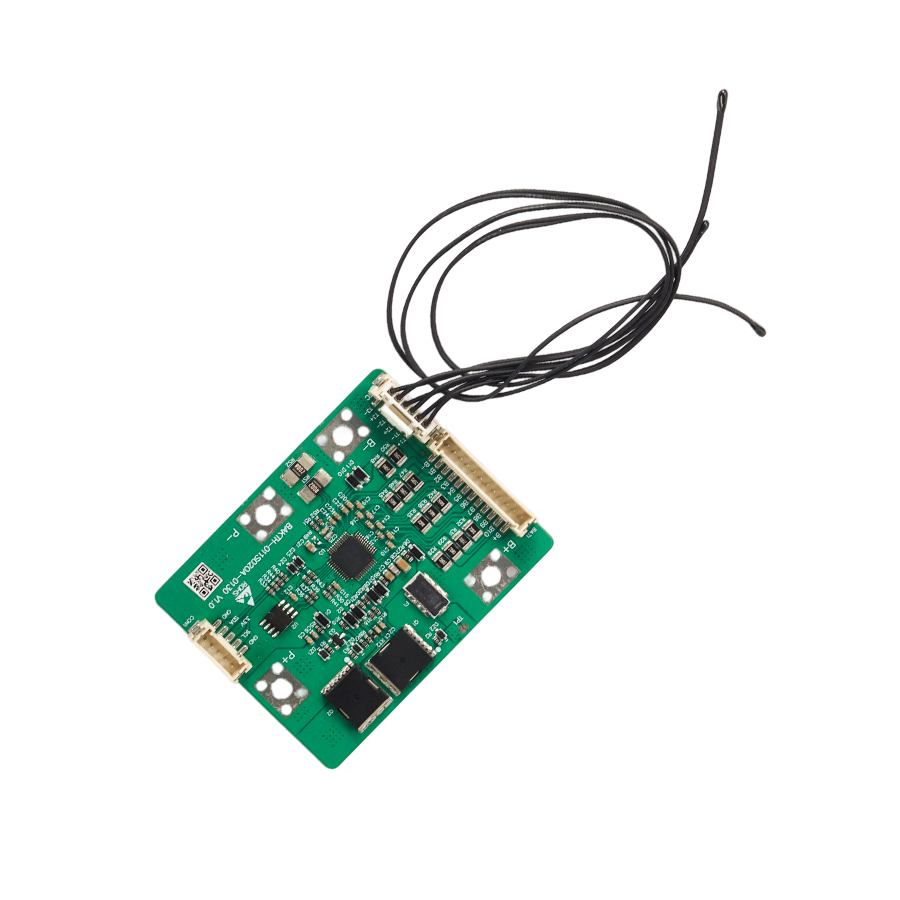

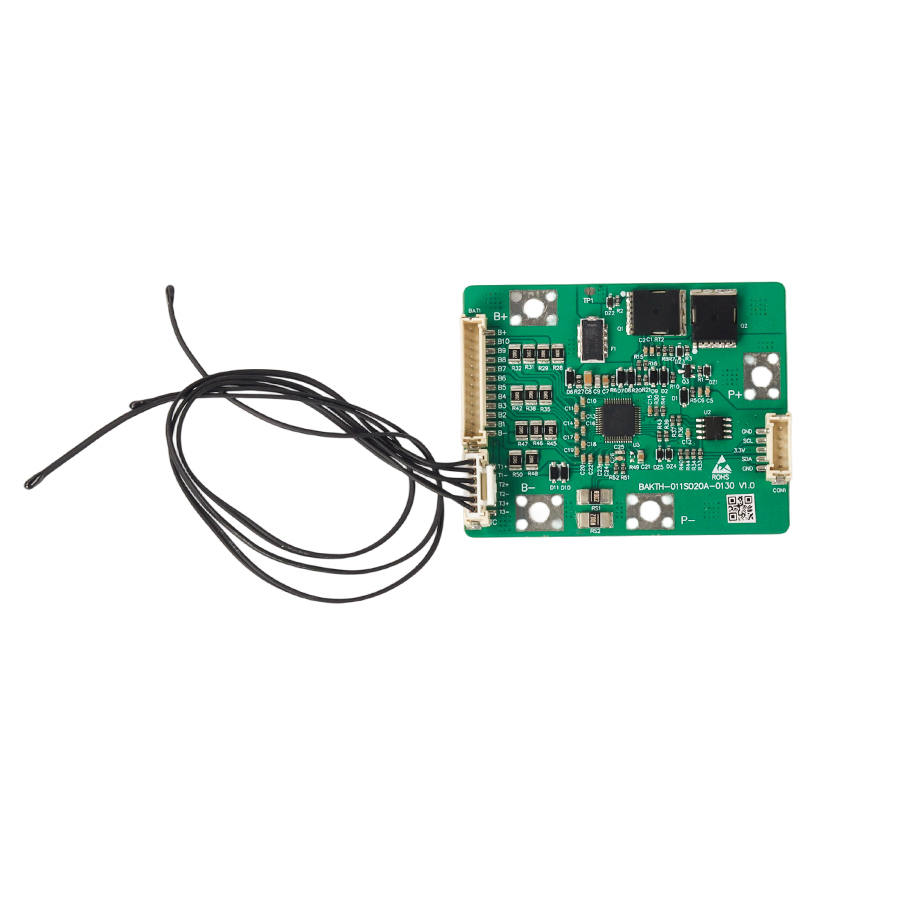

10S 30A Protection Circuit Board With I2C Interface for Multiply Applications
| Place of Origin | CHINA |
|---|---|
| Brand Name | BAKTH |
| Certification | IEC62133 |
| Model Number | BAKTH-011S020A-0130-01 |
| Minimum Order Quantity | 5PCS |
| Price | USD11.25.00~USD14.5.00 |
| Packaging Details | Industrial Paper Carton |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Type | Lithium Ion | Over Charge Detection Voltage(Cell) | 3.70V±0.05V |
|---|---|---|---|
| Over Discharge Detection Voltage(Cell) | 2.30V±0.05V | Compatible Interface | I2C |
| Over Current Discharge | 20±3A | Over Current Charge | 20±3A |
| Max Discharge Current | 15A | Dimension | 70*55*12mm(L*W*H) |
| Operating Temperature | -25~65℃ | ||
| Highlight | 10S 30A BMS PCB,I2C interface protection circuit,multipurpose BMS circuit board |
||
Product Description
10S 30A Protection Circuit Board With I2C Interface for Multiple Applications
Product Specifications
| Attribute | Value |
|---|---|
| Battery Type | Lithium ion |
| Over charge detection voltage (Cell) | 3.70V±0.05V |
| Over Discharge Detection Voltage (Cell) | 2.30V±0.05V |
| Compatible Interface | I2C |
| Over Current Discharge | 20±3A |
| Over Current Charge | 20±3A |
| Max Discharge Current | 15A |
| Dimension | 70*55*12mm (L*W*H) |
| Operating Temperature | -25~65℃ |
Technical Details
Model NO.: BAKTH-011S020A-0130-01
Compliant certification standards: IEC62133
Type of Protective Board: 11S lithium battery protection board
Key Features
- Over-voltage/current protection (<0.1s response)
- Multi-battery compatibility
- I2C interface for easy integration
- Robust protection for lithium-ion battery packs
Applications
- Lithium ion Battery Packs
- Electric Tools
- Industrial battery management systems
- Energy storage solutions
