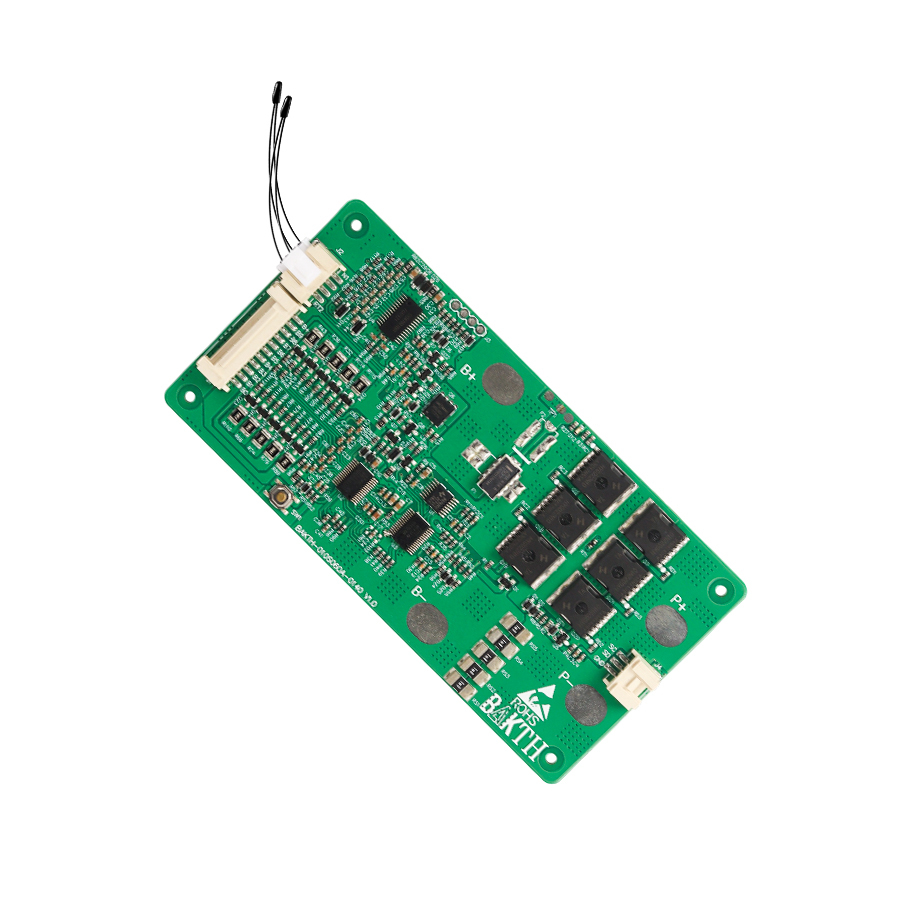

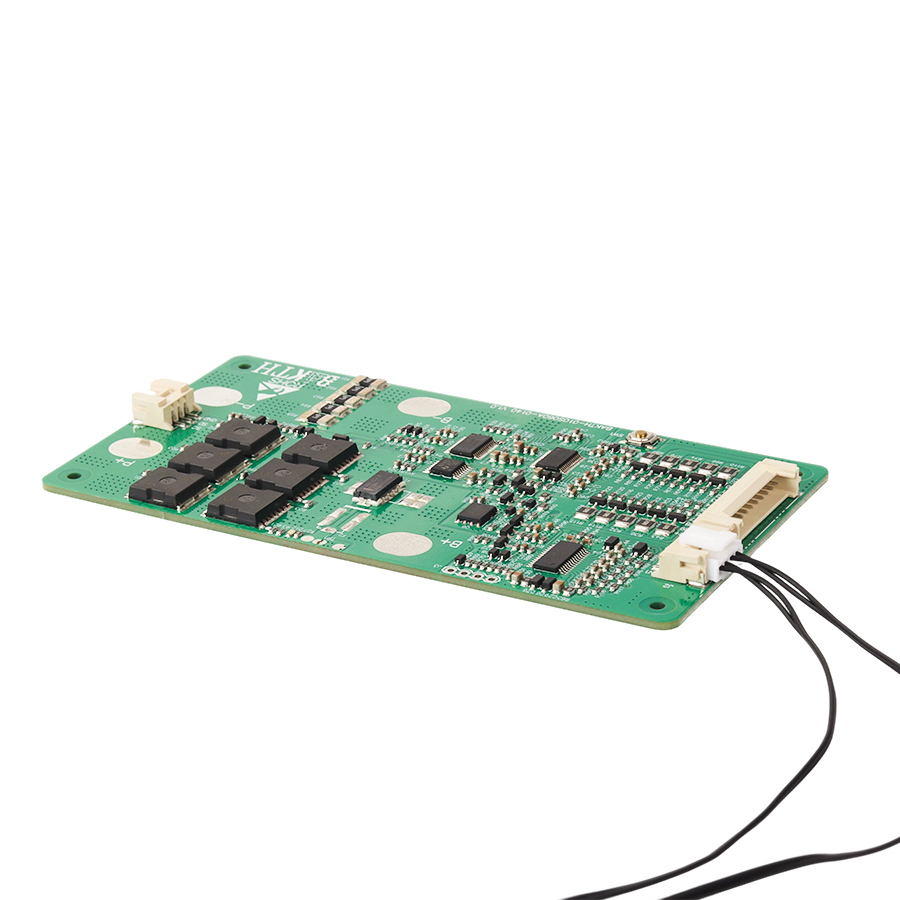

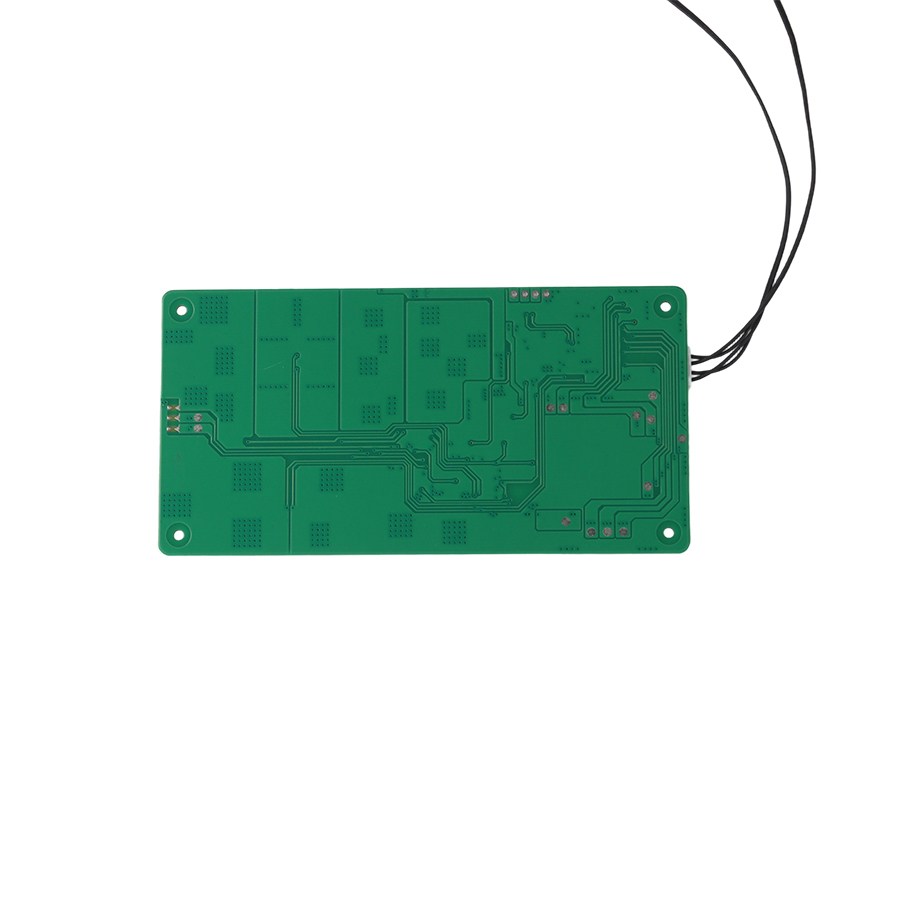

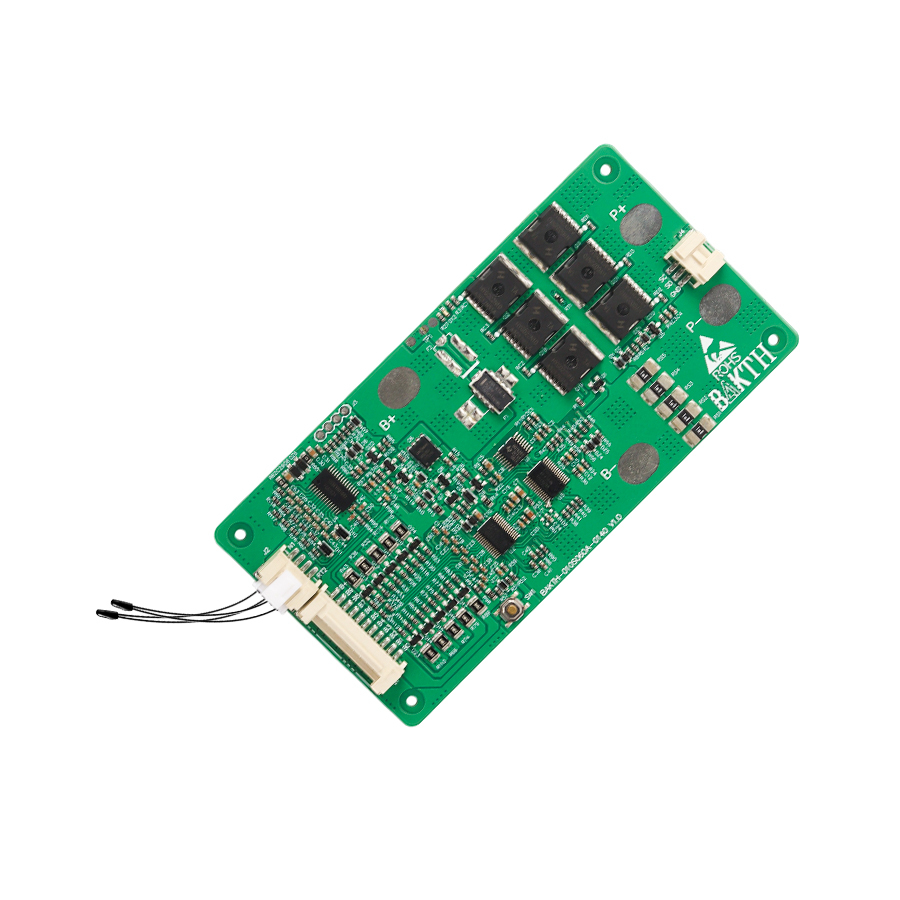

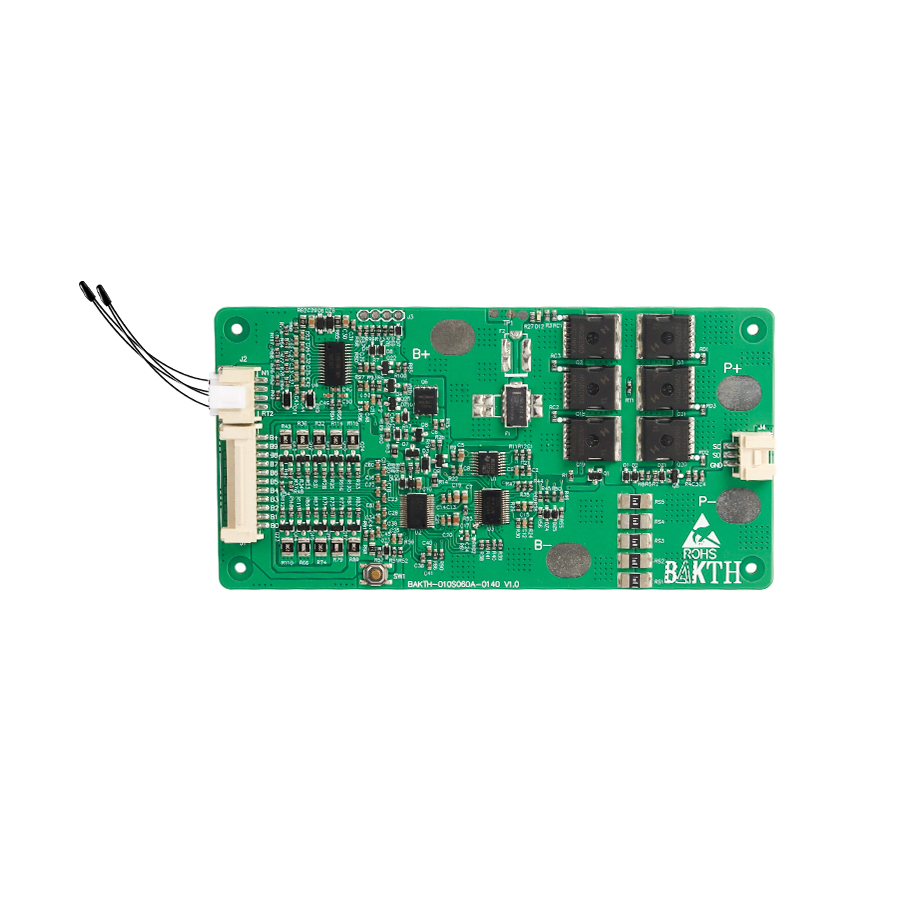

10S 30A Protection Circuit Board With SMBUS Interface for Various Devices
| Place of Origin | CHINA |
|---|---|
| Brand Name | BAKTH |
| Certification | IEC62133 |
| Model Number | BAKTH-010S060A-0140-01 |
| Minimum Order Quantity | 5PCS |
| Price | USD10.85.00~USD14.25.00 |
| Packaging Details | Industrial Paper Carton |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Type | Lithium Ion | Over Charge Detection Voltage(Cell) | 4.250V±0.025V |
|---|---|---|---|
| Over Discharge Detection Voltage(Cell) | 2.500V±0.05V | Compatible Interface | SMBUS |
| Over Current Discharge | 31.5±2A | Over Current Charge | 12±2A |
| Max Discharge Current | 30A | Dimension | 125*64*9mm(L*W*H) |
| Operating Temperature | -25~65℃ | ||
| Highlight | 10S 30A BMS PCB,SMBUS interface protection circuit,BMS board for various devices |
||
Product Description
10S 30A Protection Circuit Board With SMBUS Interface
Product Specifications
| Attribute | Value |
|---|---|
| Battery Type | Lithium ion |
| Over charge detection voltage (Cell) | 4.250V±0.025V |
| Over Discharge Detection Voltage (Cell) | 2.500V±0.05V |
| Compatible Interface | SMBUS |
| Over Current Discharge | 31.5±2A |
| Over Current Charge | 12±2A |
| Max Discharge Current | 30A |
| Dimension | 125*64*9mm (L*W*H) |
| Operating Temperature | -25~65℃ |
Technical Details
Model NO.: BAKTH-010S060A-0140-01
Compliant certification standards: IEC62133
Type of Protective Board: 10S lithium battery protection board
Key Features
- Over-voltage/current protection (<0.1s response)
- Multi-battery compatibility
- Robust SMBUS interface
- Precision voltage detection
Applications
Lithium ion Battery Pack, Electric Tools, and other devices requiring high-current battery protection
