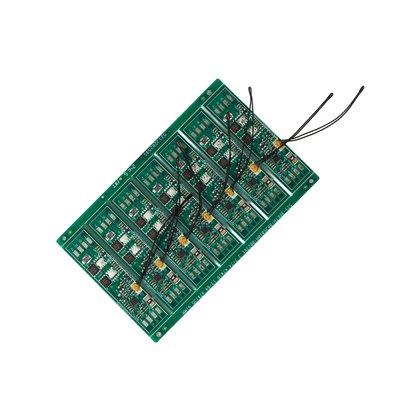

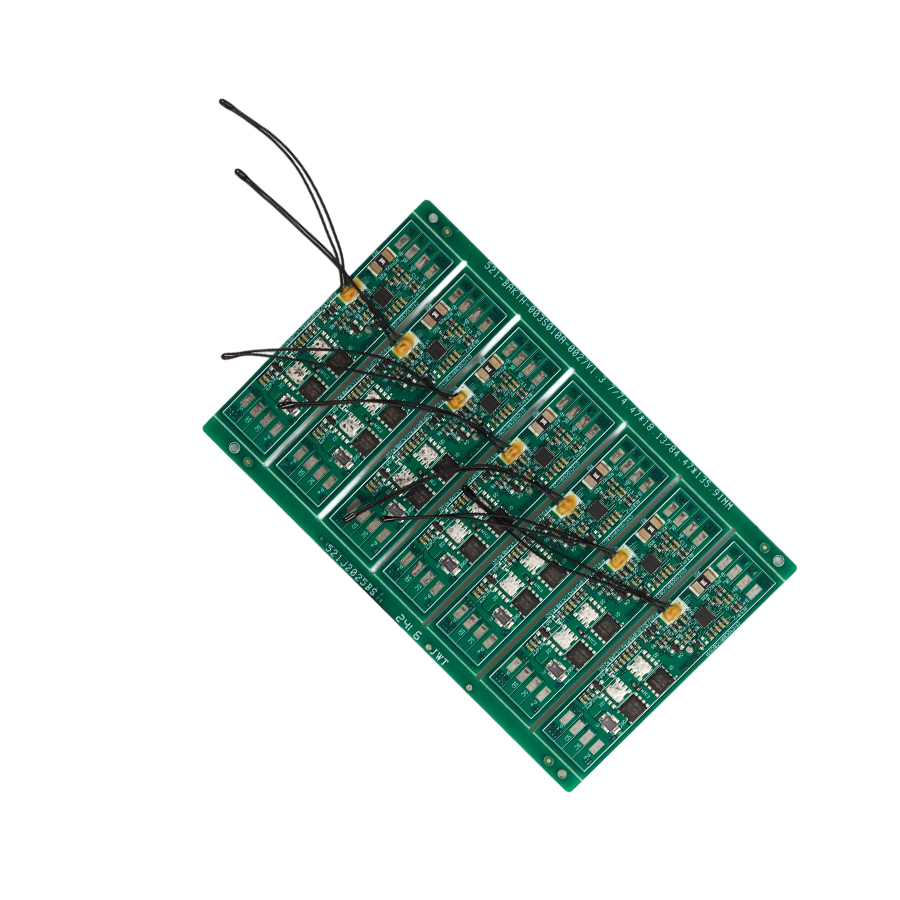

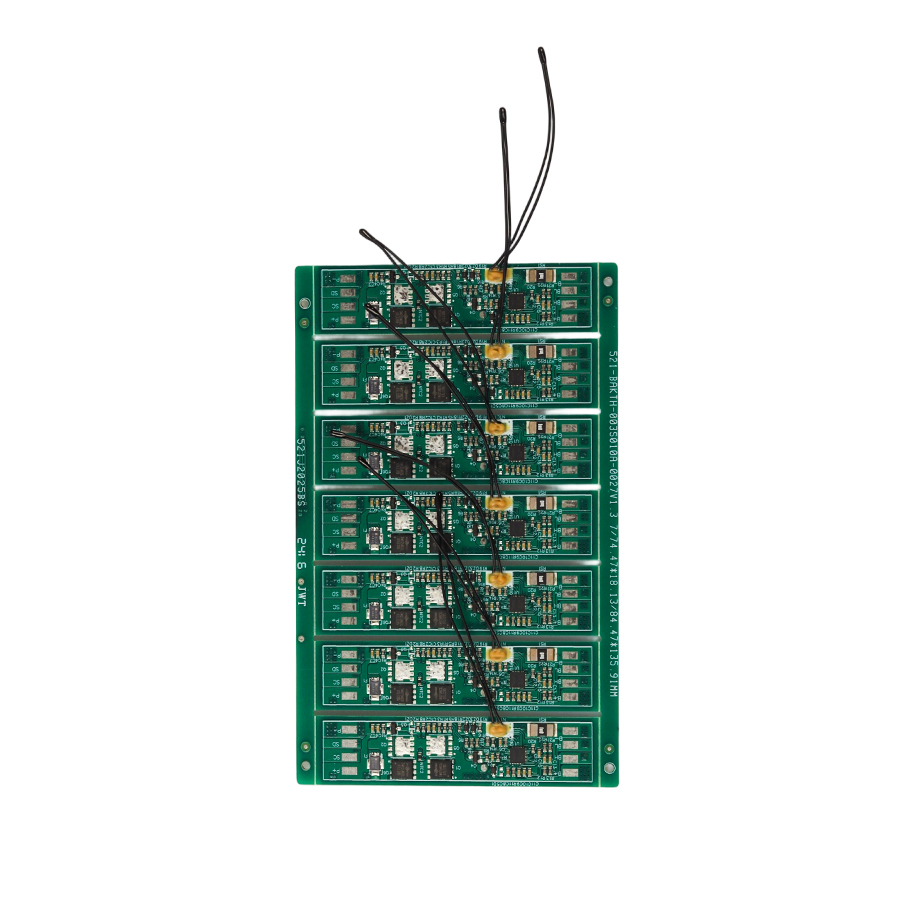

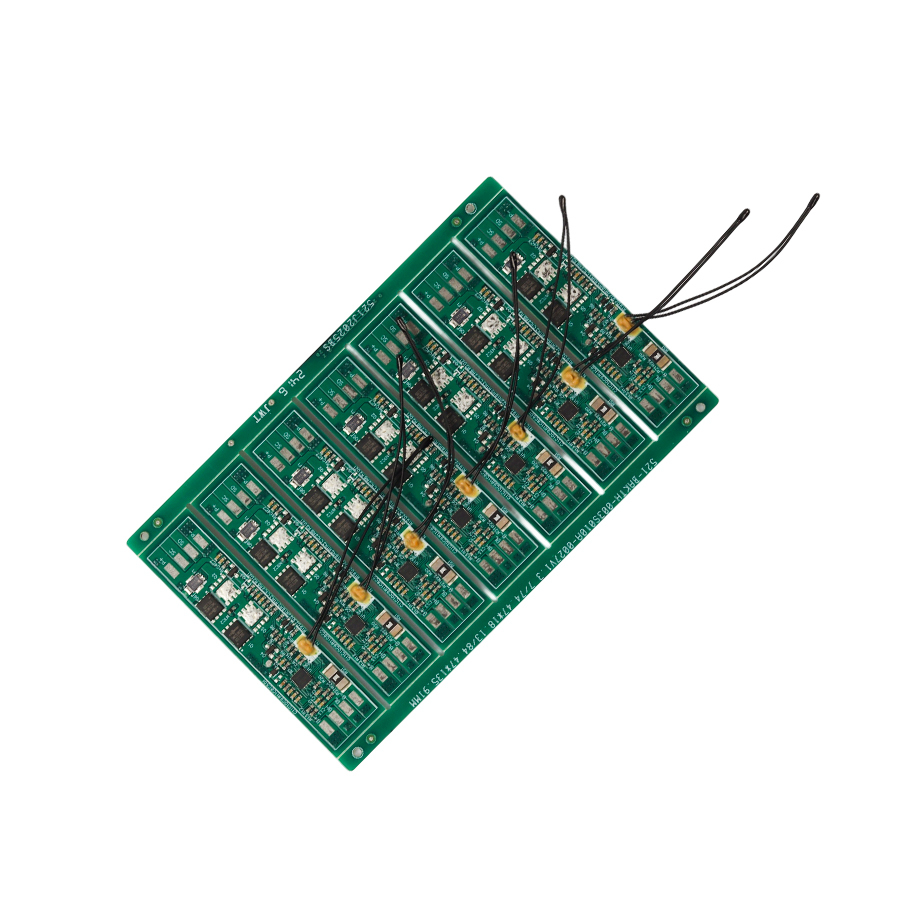

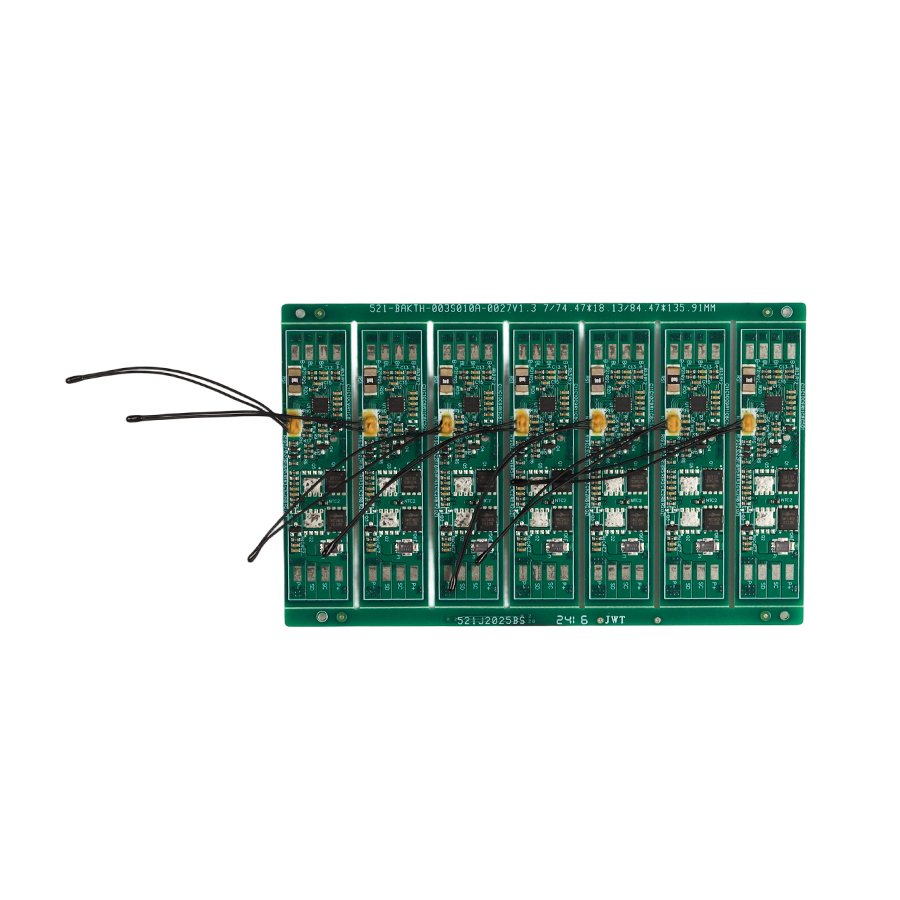

3S 10A Lithium ion Battery Protection Circuit Board with SMBUS Interface
| Place of Origin | CHINA |
|---|---|
| Brand Name | BAKTH |
| Certification | IEC62133 |
| Model Number | BAKTH-003S010A-0027-01 |
| Minimum Order Quantity | 5PCS |
| Price | USD9.00~USD14.5.00 |
| Packaging Details | Industrial Paper Carton |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Type | Lithium Ion | Over Charge Detection Voltage(Cell) | 4.250V±0.025V |
|---|---|---|---|
| Over Discharge Detection Voltage(Cell) | 2.500V±0.100V | Compatible Interface | SMBUS |
| Over Current Discharge | 8A±0.2A | Over Current Charge | 8A±0.2A |
| Max Discharge Current | 5A | Dimension | 74.3*18.2*3.8 Mm(L*W*H) |
| Operating Temperature | -30~65℃ | ||
| Highlight | 3S 10A Protection Circuit Board,Lithium ion Battery Protection Circuit Board |
||
Product Description
3S 10A Protection Circuit Board with SMBUS Interface
Product Specifications
| Attribute | Value |
|---|---|
| Battery Type | Lithium ion |
| Over charge detection voltage (Cell) | 4.250V±0.025V |
| Over Discharge Detection Voltage (Cell) | 2.500V±0.100V |
| Compatible Interface | SMBUS |
| Over Current Discharge | 8A±0.2A |
| Over Current Charge | 8A±0.2A |
| Max Discharge Current | 5A |
| Dimension | 74.3*18.2*3.8 mm (L*W*H) |
| Operating Temperature | -30~65℃ |
Technical Details
Model NO.: BAKTH-003S010A-0027-01
Compliant certification standards: IEC62133
Type of Protective Board: 3S lithium battery protection board
Compatible Interface: SMBUS
Electrical Performance
Battery Type: Li-ion
Over charge detection voltage (Cell): 4.250V±0.025V
Over Discharge Detection Voltage (Cell): 2.500V±0.100V
Over Current Discharge: 8A±0.2A
Over Current Charge: 8A±0.2A
Max Discharge Current: 5A
Dimension: 74.3*18.2*3.8 mm (L*W*H)
Key Features
- Over-voltage/current protection (<0.1s response)
- Multi-battery compatibility
Applications
Lithium ion Battery Pack, Electric Tools
