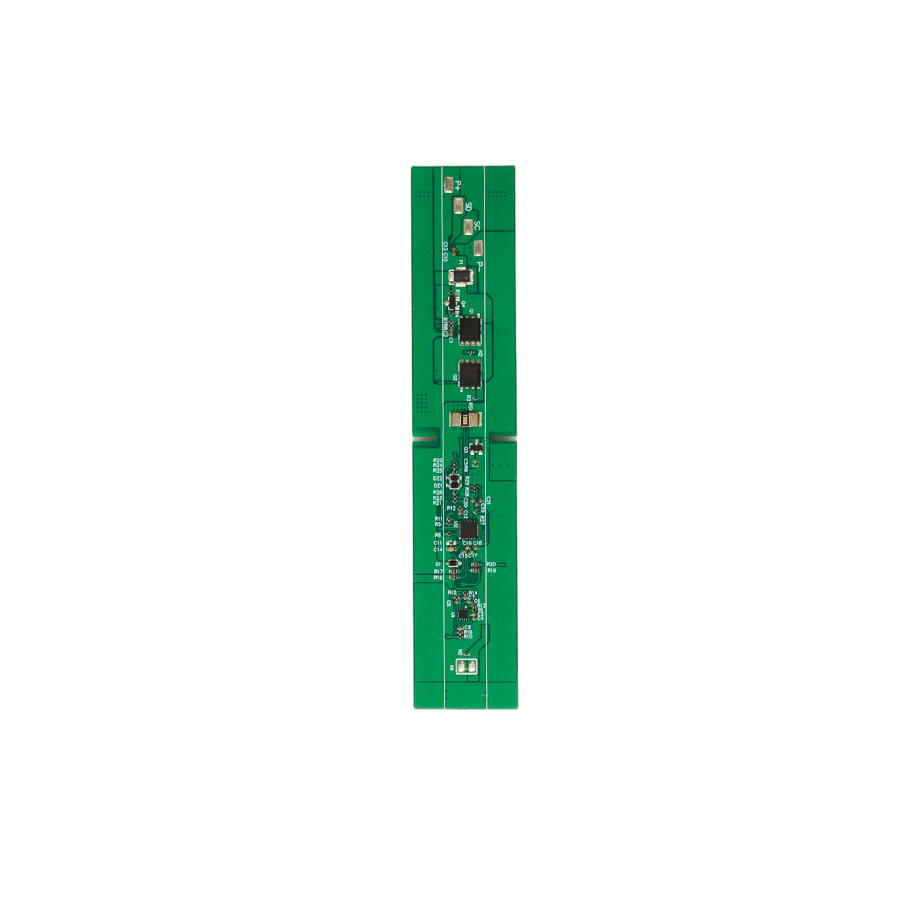

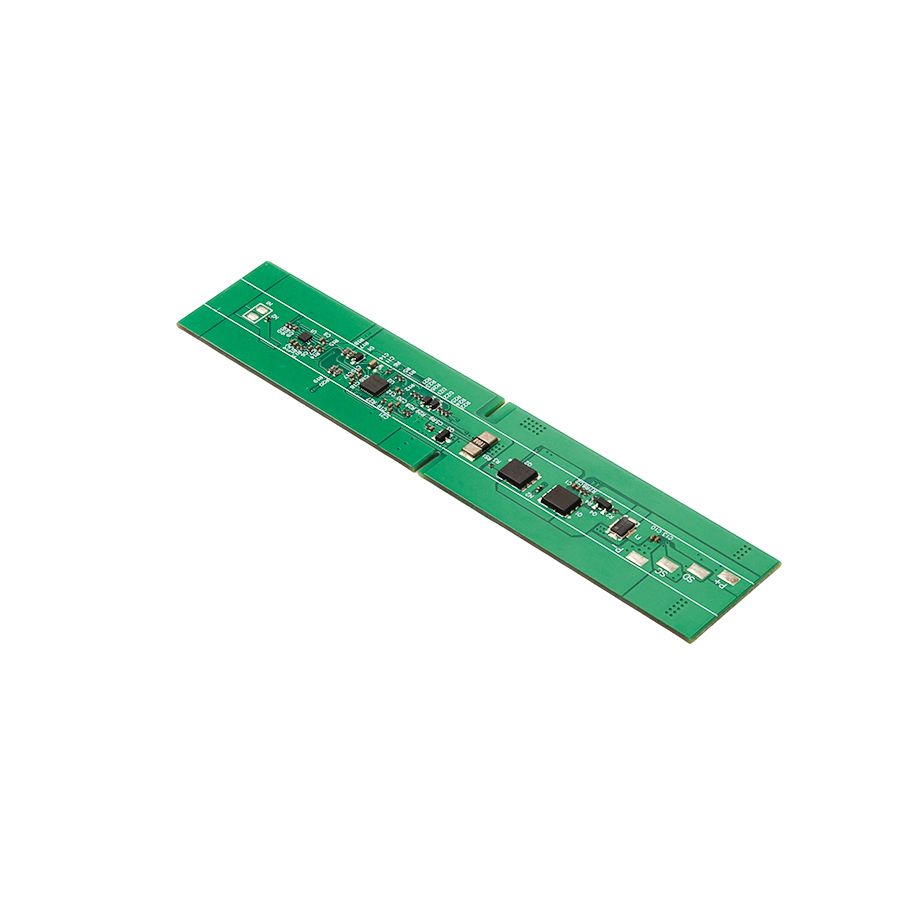

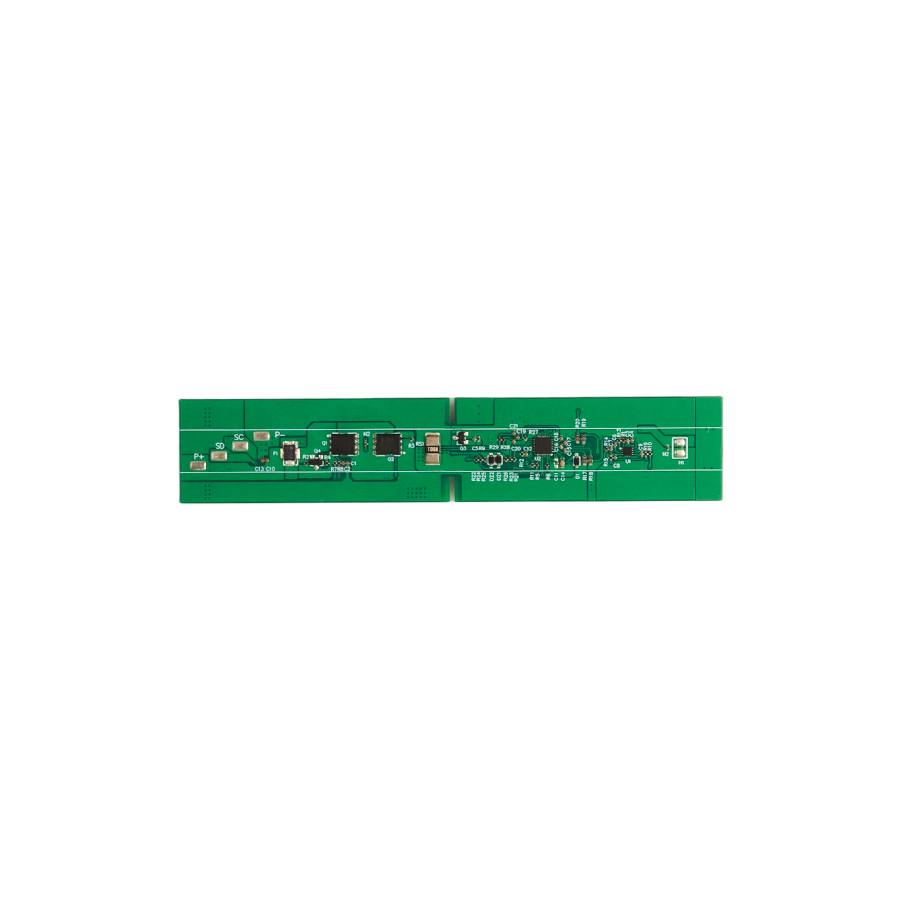

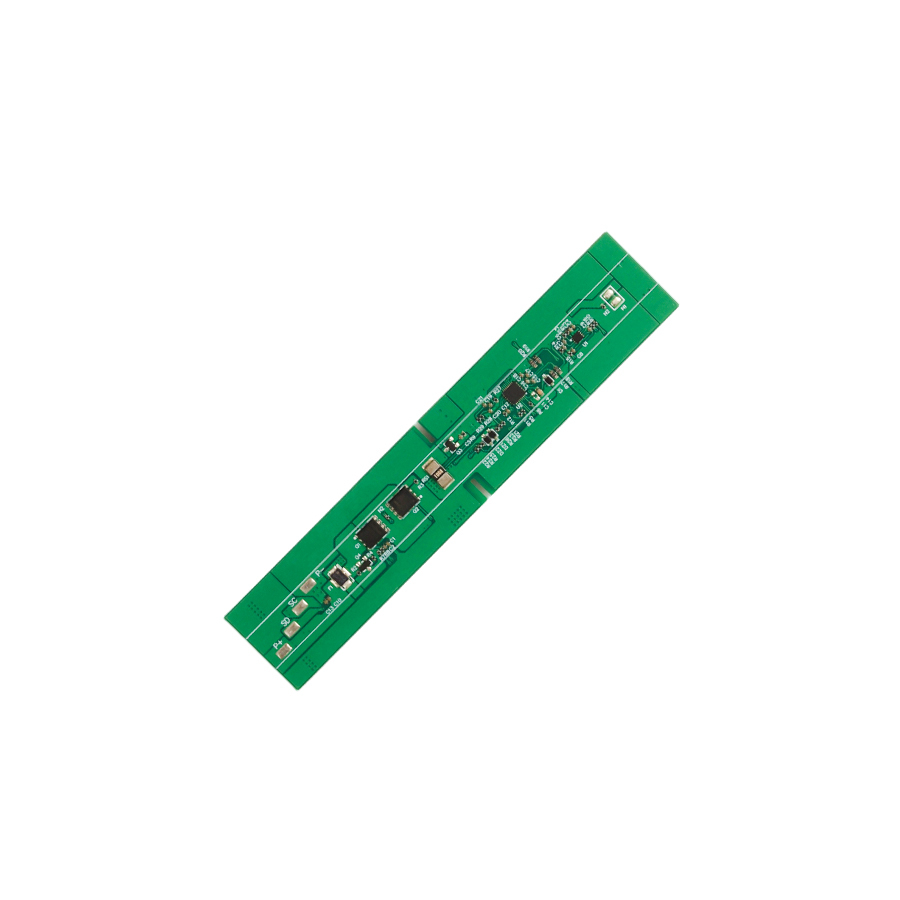

4S 6A Protection Circuit Board with SMBUS Interface Suitable for Lithium Batteries
| Place of Origin | CHINA |
|---|---|
| Brand Name | BAKTH |
| Certification | IEC62133 |
| Model Number | BAKTH-004S006A-0084-01 |
| Minimum Order Quantity | 5PCS |
| Price | USD8.75.00~USD13.5.00 |
| Packaging Details | Industrial Paper Carton |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Type | Lithium Ion | Over Charge Detection Voltage(Cell) | 4.250V±0.025V |
|---|---|---|---|
| Over Discharge Detection Voltage(Cell) | 2.400V±0.025V | Compatible Interface | SMBUS |
| Over Current Discharge | 13.5A±0.2A | Over Current Charge | 5.5A±0.2A |
| Max Discharge Current | 10A | Dimension | 130*25*2.2 Mm(L*W*H) |
| Operating Temperature | -25~60℃ | ||
| Highlight | 4S lithium battery protection circuit,SMBUS interface BMS PCB,6A protection board for batteries |
||
Product Description
4S 6A Protection Circuit Board with SMBUS Interface for Lithium Batteries
Product Specifications
| Attribute | Value |
|---|---|
| Battery Type | Lithium ion |
| Over charge detection voltage (Cell) | 4.250V±0.025V |
| Over Discharge Detection Voltage (Cell) | 2.400V±0.025V |
| Compatible Interface | SMBUS |
| Over Current Discharge | 13.5A±0.2A |
| Over Current Charge | 5.5A±0.2A |
| Max Discharge Current | 10A |
| Dimension | 130*25*2.2 mm (L*W*H) |
| Operating Temperature | -25~60℃ |
Technical Details
| Model NO. | BAKTH-004S006A-0084-01 |
| Compliant certification standards | IEC62133 |
| Type of Protective Board | 4S lithium battery protection board |
Key Features
- Over-voltage/current protection (<0.1s response)
- Multi-battery compatibility
- Precision voltage detection with tight tolerances
- Robust protection for lithium battery packs
Applications
- Lithium ion Battery Packs
- Electric Tools
- Portable power solutions
- Battery management systems
