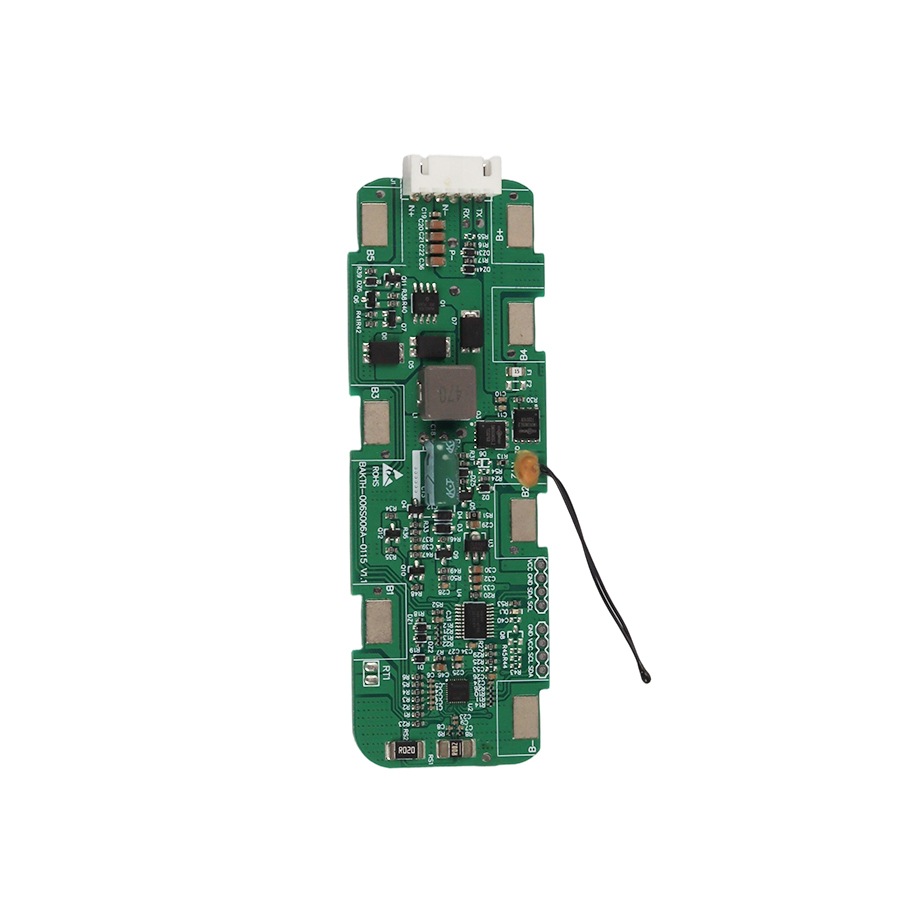

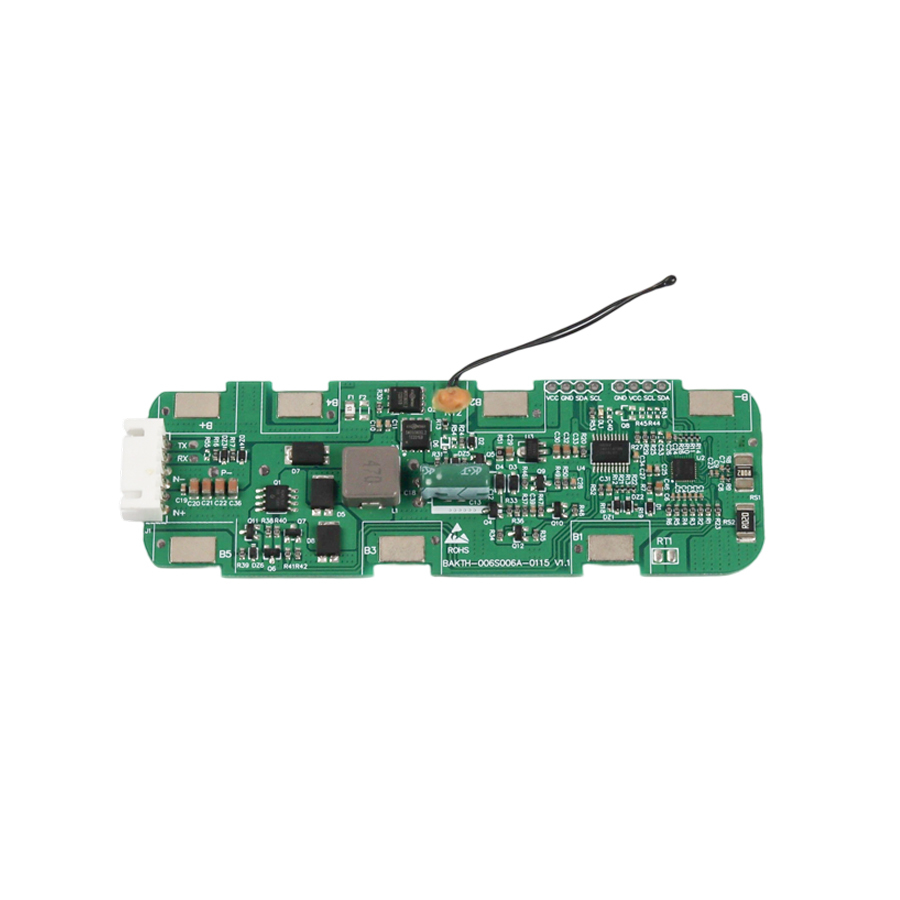

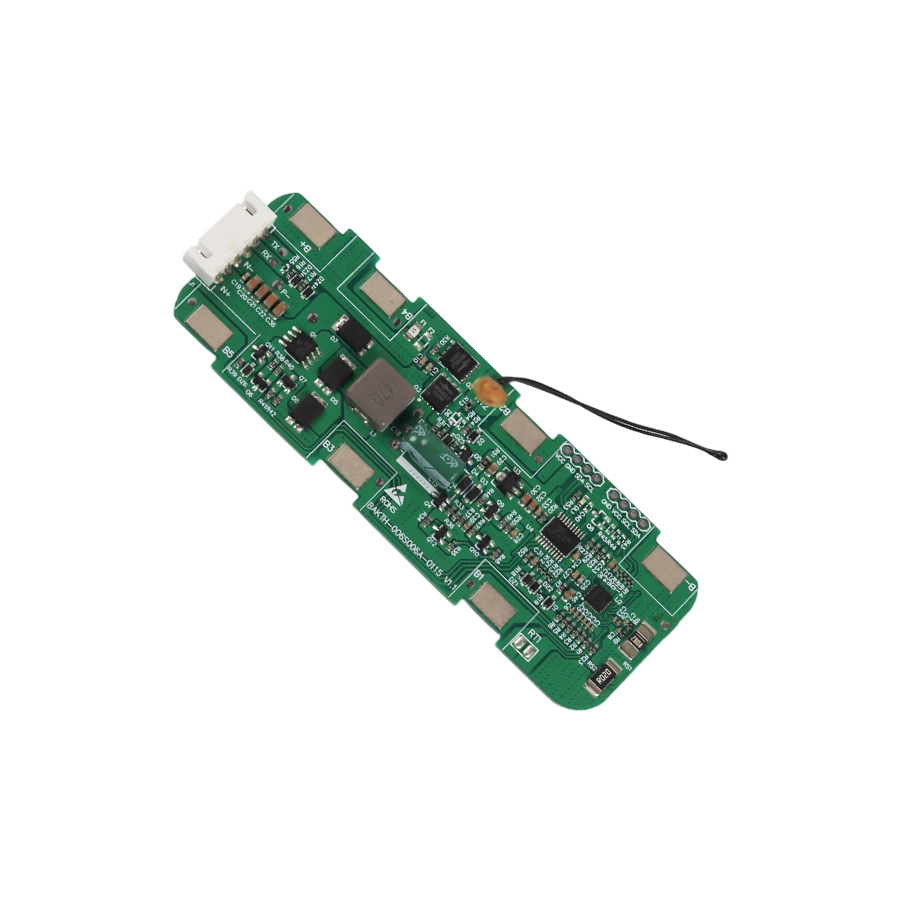

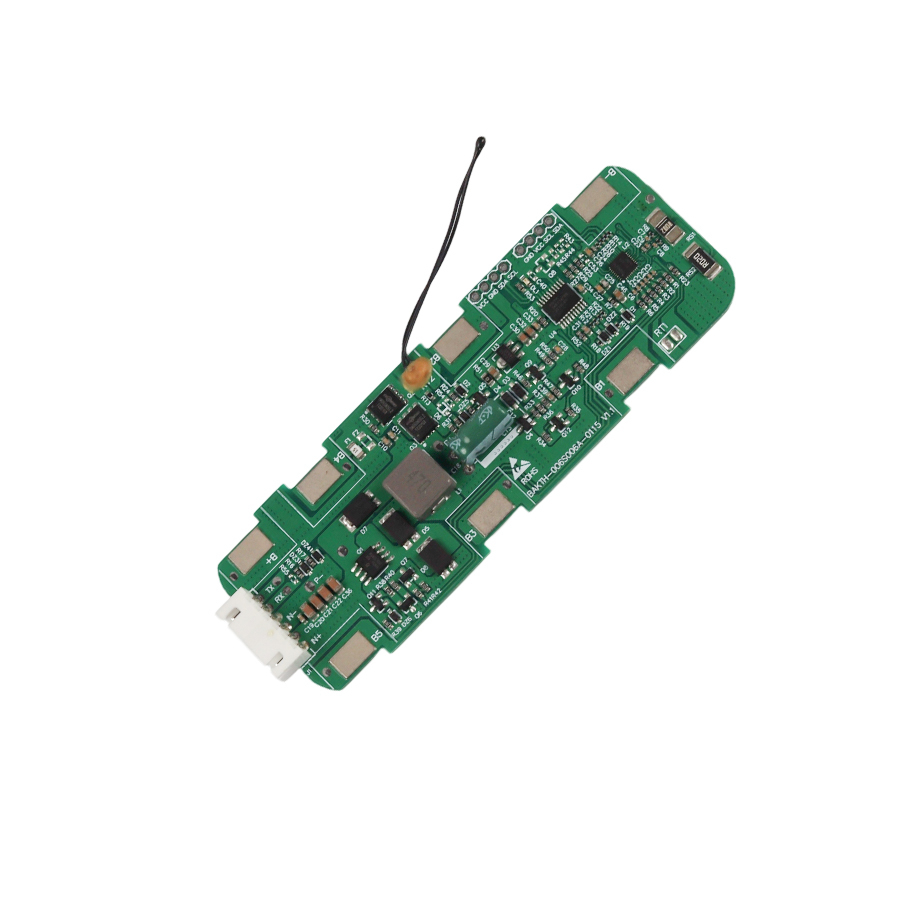

6S 6A Protection Circuit Board Suitable for Lithium Batteries with SMBUS Interface
| Place of Origin | CHINA |
|---|---|
| Brand Name | BAKTH |
| Certification | IEC62133 |
| Model Number | BAKTH-006S006A-0115-01 |
| Minimum Order Quantity | 5PCS |
| Price | USD9.15.00~USD12.5.00 |
| Packaging Details | Industrial Paper Carton |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Type | Lithium Ion | Over Charge Detection Voltage(Cell) | 3.75V±0.05V |
|---|---|---|---|
| Over Discharge Detection Voltage(Cell) | 2.200V±0.05V | Compatible Interface | SMBUS |
| Over Current Discharge | 8A±0.2A | Over Current Charge | 8A±0.2A |
| Max Discharge Current | 5A | Dimension | 110.5*38.5*6mm(L*W*H) |
| Operating Temperature | -25~65℃ | ||
| Highlight | 6S lithium battery protection circuit,SMBUS interface BMS PCB,6A protection board for batteries |
||
Product Description
6S 6A Protection Circuit Board for Lithium Batteries with SMBUS Interface
Product Specifications
| Attribute | Value |
|---|---|
| Battery Type | Lithium ion |
| Over charge detection voltage (Cell) | 3.75V±0.05V |
| Over Discharge Detection Voltage (Cell) | 2.200V±0.05V |
| Compatible Interface | SMBUS |
| Over Current Discharge | 8A±0.2A |
| Over Current Charge | 8A±0.2A |
| Max Discharge Current | 5A |
| Dimension | 110.5*38.5*6mm (L*W*H) |
| Operating Temperature | -25~65℃ |
Technical Details
Model NO.: BAKTH-006S006A-0115-01
Compliant certification standards: IEC62133
Type of Protective Board: 6S lithium battery protection board
Key Features
- Over-voltage/current protection (<0.1s response time)
- Multi-battery compatibility
- Precise voltage detection with ±0.05V accuracy
- Robust protection against overcharge and over-discharge
Applications
Lithium ion Battery Packs, Electric Tools, and other SMBUS-compatible devices requiring reliable battery protection.
