Lithium Battery Protection Board 5S 5A For Small-scale Energy Storage Systems
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH/OEM/Neutral |
| Certification | Certified with RoHS / IEC62133/UL2054 certification |
| Model Number | BAKTH-0050050121-01 |
| Minimum Order Quantity | 1-200PCS |
| Price | USD15.0-USD30.0/PCS |
| Packaging Details | Standard Export Packing |
| Delivery Time | 10-15 working days |
| Payment Terms | ,T/T |
| Supply Ability | Daily Delivery Capability: Approx. 1,800 units/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | BAKTH-0050050121-01 | Series Supported | 5S |
|---|---|---|---|
| Continuous Discharge Current (A) | 5A | Balancing Type | Active Balancing / Passive Balancing (Optional) |
| Over Charge Detection Voltage(Cell) | 4.250V±0.050V （Adjustable） | Over Discharge Detection Voltage(Cell) | 2.700V±0.050V（Adjustable） |
| Customization Available | Yes | Warranty | 12 Months |
| Highlight | 5S lithium battery protection board,5A BMS for energy storage,small-scale BMS PCB |
||
Product Description

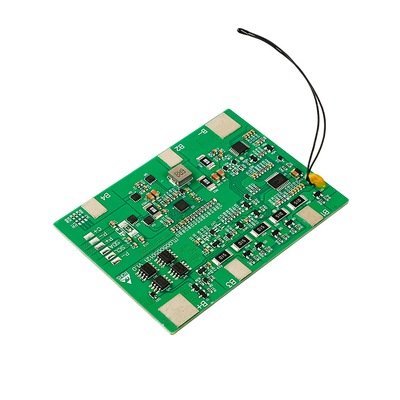

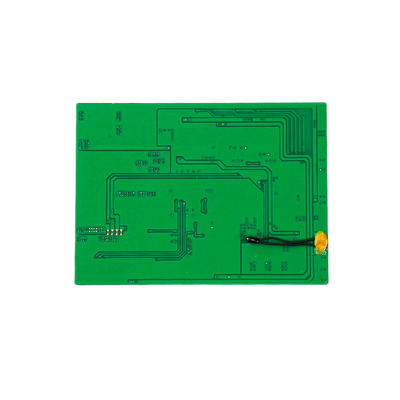

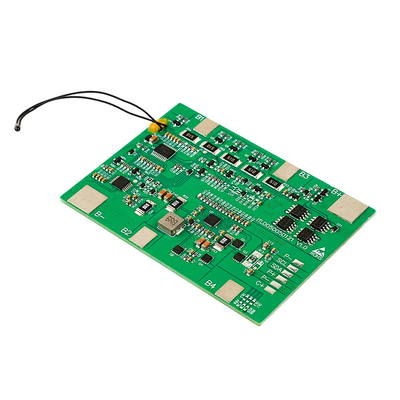

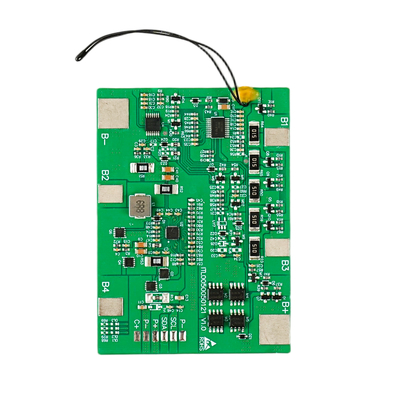

Lithium Battery Protection Board 5S 5A For Small-scale Energy Storage Systems
Product Overview
Designed for precision and adaptability, this 5S 5A lithium battery protection board combines SMBUS communication with adjustable thermal controls to optimize performance. Supporting a discharge range of 0°C to 70°C and a charge range of 0°C to 50°C, it ensures stable operation in varying climates while protecting battery integrity.
Key Specifications
Model Number:
BAKTH-0050050121-01
Series Supported:
5S
Continuous Discharge Current:
5A
Balancing Type:
Active/Passive (Optional)
Over Charge Detection:
4.250V±0.050V (Adjustable)
Over Discharge Detection:
2.700V±0.050V (Adjustable)
Dimensions:
88 × 64 × 4.45 mm
Certifications:
IEC62133/UL2054
Key Features
- SMBUS communication protocol for real-time battery status feedback (SOC, SOH, temperature)
- Comprehensive protections: over-voltage, under-voltage, short-circuit, over-current, and temperature
- Optional active balancing function to extend battery pack life and improve consistency
- Modular design for easy integration in various industrial applications
- Adjustable voltage and temperature thresholds for customized operation
Application Scenarios
Energy Storage Systems (ESS)
Electric Power Tools
Home Solar Battery Systems
Drones
DIY Custom Li-ion Battery Packs
Warranty & Support
- 12-month warranty with lifetime technical support
- 100% tested before shipment to ensure safety and reliability
- Dedicated account manager and technical support with 48-hour response
- Customization options available for specific application requirements
