Product Description
Power Reliability 18650-2S2P Li-ion Battery Pack
Our expertly engineered 18650-2S2P lithium ion battery pack delivers the ideal balance of voltage and capacity for demanding applications. Built using premium Panasonic li-ion battery 18650 cells, this configuration represents smart lithium ion battery pack design in action.
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 7.2V |
| Nominal Capacity | 6600mAh |
| Rated Capacity | 6900mAh |
| Internal Resistance | <200mΩ @1kHz at 25℃ |
| Max Charging Current | 3.3A |
| Max Charging Voltage | 8.4V |
| Max Discharging Current | 8.0A |
| Battery Life | ≥500 cycles (80% capacity retention) |

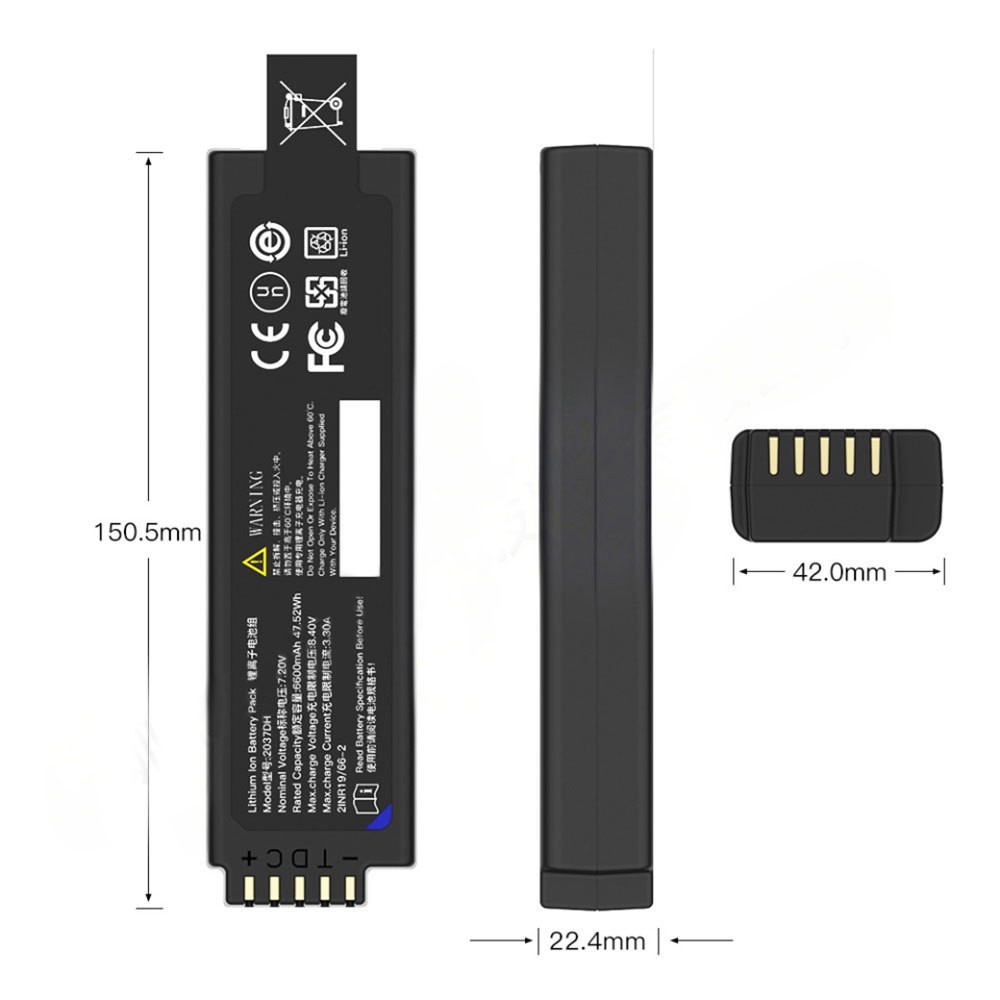

Physical Dimensions
| Dimension | Value |
|---|---|
| Length | 150.5mm ± 0.3mm |
| Width | 42.0mm ± 0.3mm |
| Thickness | 22.4mm ± 0.3mm |
| Weight | 240g ± 10g |
Key Features
- Optimal Power Density: Leverages the proven energy density of the 18650 battery standard
- Enhanced Performance: 2P connection provides higher sustained current output
- Long Battery Life: High-quality, matched cells ensure balanced performance
- Core Li-ion Advantages: High energy density, low self-discharge, no memory effect
- Built for Reliability: Professional spot welding, cell matching, optional protection circuitry
Ideal Applications
- Custom Robotics & Drones
- Portable Power Tools
- High-Performance LED Lighting
- Back-up Power Systems
- DIY Electronics & Prototyping
- Portable Medical Devices
- RC Hobbies (Cars, Boats, Planes)
Experience the flexibility and performance of professional-grade lithium ion battery packs
Our 18650-2S2P solution offers a perfect blend of voltage and capacity for your next project.
