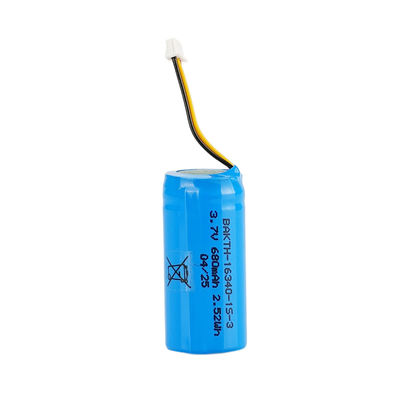

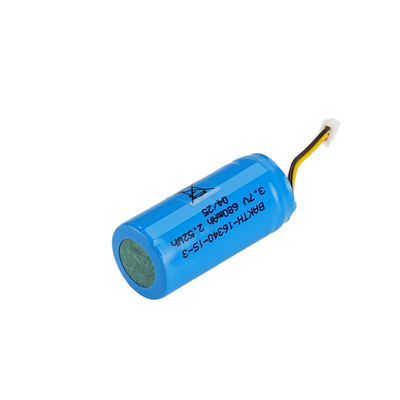

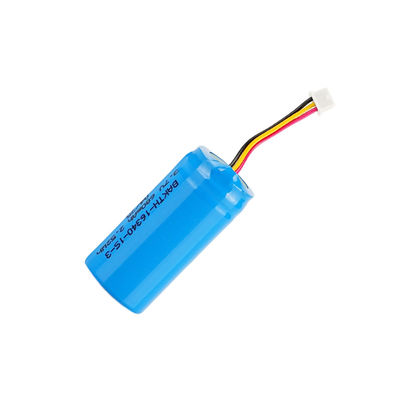

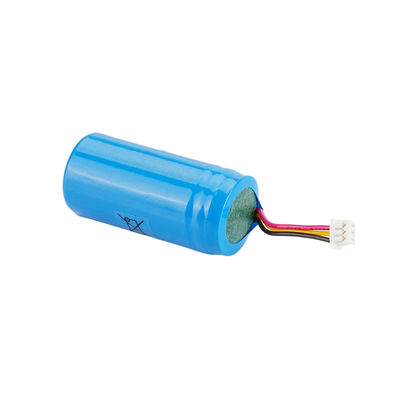

3.7v 700mAh Lithium Ion Battery Pack BAKTH 16340 1S 3 Rechargeable Lithium Ion Battery Cells
| Place of Origin | DongGuan,China |
|---|---|
| Brand Name | BAKTH |
| Model Number | BAKTH-16340-1S-3 |
| Minimum Order Quantity | 2PCS |
| Price | USD3.00~20.00 |
| Packaging Details | Standard Export packing |
| Payment Terms | Western Union,T/T,MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Normal Voltage | 3.7V | Nominal Capacity | 700A |
|---|---|---|---|
| Max Charge Volt | 4.2V | Discharge Cut-off Voltag | 2.8V (limited By PCB) |
| Humidity Range | 65%±20% RH (non-condensing) | Working Temperatur | Charging: 0~45℃ Discharge:-20~60℃ |
| Impedance | ≤200mΩ (AC Impedance, | Battery Weight | Approx 30g |
| Highlight | 3.7v Lithium Ion Battery Pack,3.7v lithium battery bank,700mAh Lithium Ion Battery Pack |
||
Product Description
3.7v 700mAh Lithium Ion Battery Pack BAKTH 16340 1S 3 Rechargeable Lithium Ion Battery Cells
Product Attributes
| Normal Voltage | 3.7V |
| Nominal Capacity | 700A |
| Max Charge Volt | 4.2V |
| Discharge cut-off voltage | 2.8V (limited by PCB) |
| Humidity range | 65%±20% RH (non-condensing) |
| Working temperature | Charging: 0~45℃ Discharge:-20~60℃ |
| Impedance | ≤200mΩ (AC Impedance) |
| Battery Weight | Approx 30g |
Product Specifications
| Product type | lithium ion battery | Charging Temperature | 0~45℃ |
| Nominal capacity | 700mAh | Discharging Temperature | -20 ~ 60℃ |
| Nominal voltage | 3.6V | Storage temperature |
≤1 month: 45~60℃ ≤3 months: 25~45℃ ≤12 months: -20~25℃ ≤60%RH Recharge every 6 months |
| Max charge voltage | 4.2V | Humidity Range | 0~85% (non-condensing) |
| Discharge cut off voltage | 2.8V (limited by PCB) | Dimension | L:37mm Max D:17mm Max |
| Standard charge current | 0.2C | Max charge current | 0.5C |
| Standard discharge current | 0.2C | Warranty | 12 Months |
| Max discharge current | 0.7A Max (rapid charge) | PCB/PCM | yes |
| Cycle life | 300 cycles | Rechargeable or not | Yes |
