Customized Li Ion Battery Pack BAKTH 18650CQ-3P-3 7650mAh For Eletronics
| Place of Origin | China |
|---|---|
| Brand Name | BAKTH/OEM/Neutral |
| Certification | UN38.3, IEC62133 |
| Model Number | BAKTH-18650CQ-3P-3 |
| Minimum Order Quantity | 5pcs |
| Price | USD7-8 |
| Packaging Details | 60pcs/carton |
| Delivery Time | 30-35 days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cell Type | Liion Battery | Application | Consumer Eletronic |
|---|---|---|---|
| Item No | 18650 | Dimension | 19.5*56*70mm |
| Standard Charge Current | 0.2C | Discharge Current | 1C |
| Charge Method | CC/CV | ||
| Highlight | Customized Li Ion Battery Pack,Customized lithium battery pack,7650mAh Li Ion Battery Pack |
||
You can tick the products you need and communicate with us in the message board.
Product Description

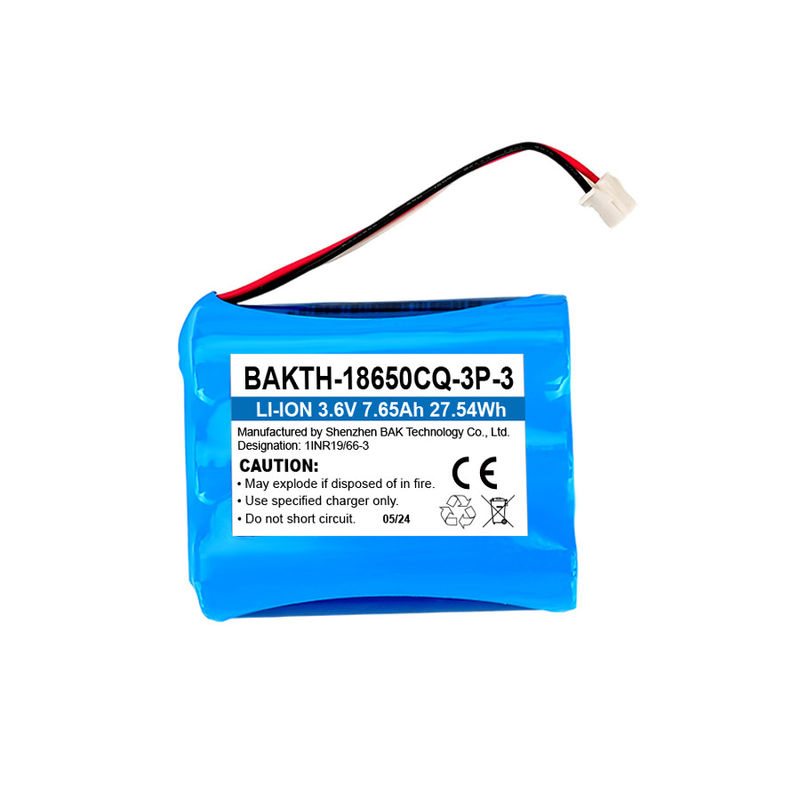

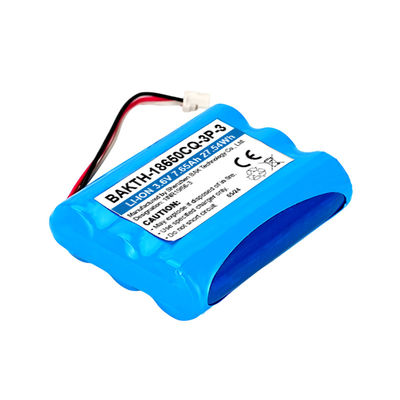

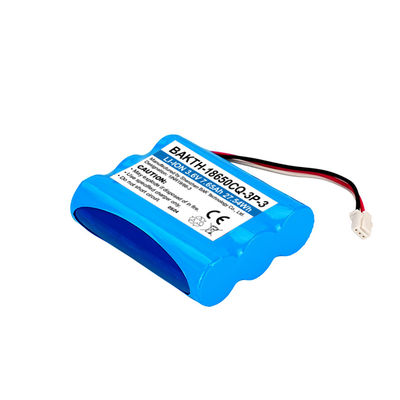

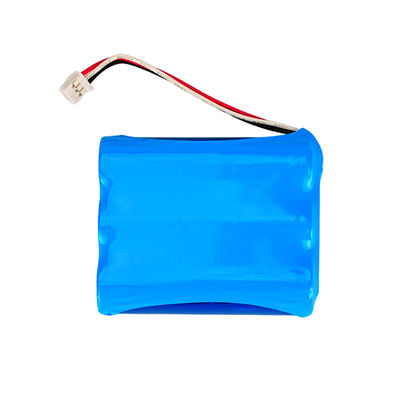

Customized Li Ion Battery Pack BAKTH 18650CQ-3P-3 7650mAh For Electronics
Product Specifications
| Attribute | Value |
|---|---|
| Cell Type | Li-ion Battery |
| Application | Consumer Electronic |
| Item No | 18650 |
| Dimension | 19.5*56*70mm |
| Standard Charge Current | 0.2C |
| Discharge Current | 1C |
| Charge Method | CC/CV |
Product Overview
This high-capacity lithium-ion battery pack (model BAKTH-18650CQ-3P-3) is engineered for custom integration into consumer electronics, delivering a robust 7650mAh capacity through its 3P configuration (three 18650 cells in parallel). With a nominal voltage of 3.7V, it ensures extended runtime and stable power delivery for energy-hungry portable devices.
Technical Parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal capacity | 7650mAh | Discharging Temperature | -20 ~ 60℃ |
| Nominal voltage | 3.6V | Storage temperature | ≤1 month: 45~60℃ ≤3 months: 25~45℃ ≤12 months: -20~25℃ |
| Max charge voltage | 4.2V | Humidity Range | 0~85% (non-condensing) |
| Discharge cut off voltage | 2.75V | Dimension | about 19.5*56*70mm |
| Standard charge current | 0.2C | Weight | about 155g |
| Max charge current | 1C | Brand | BAKTH / Neutral / OEM |
| Standard discharge current | 0.2C | Warranty | 12 Months |
| Max discharge current | 1C | PCB/PCM | yes |
| Charging mode | CC/CV | Connector | JST PAP-03V-S connector or customized |
| Internal resistance | ≤120 | Battery type | Li-ion |
| Cycle life | 300 cycles | Rechargeable | Yes |
Key Features
- Optimized Energy Density: Utilizes premium 18650 lithium-ion cells (BAKTH-CQ series) for balanced performance, longevity, and safety.
- Modular Design: The 3P arrangement enhances capacity without increasing voltage, ideal for low-power, high-endurance applications.
- Smart Protection: Integrated PCB (Protection Circuit Board) prevents overcharge, over-discharge, short circuits, and overheating.
- Customization Options: Supports factory-tailored specifications for dimensions, connectors, and discharge rates to fit proprietary device designs.
Recommended Applications
Portable Power Banks
Home Appliances
IoT Devices
DIY Projects
