2S 7.4V 20A 18650 Lithium Battery Charger Protection Board BMS Module for Power Tool Portable Device

  • 2S 7.4V 20A 18650 Lithium Battery Charger Protection Board BMS Module for Power Tool Portable Device
  • 2S 7.4V 20A 18650 Lithium Battery Charger Protection Board BMS Module for Power Tool Portable Device
  • 2S 7.4V 20A 18650 Lithium Battery Charger Protection Board BMS Module for Power Tool Portable Device
  • 2S 7.4V 20A 18650 Lithium Battery Charger Protection Board BMS Module for Power Tool Portable Device
  • 2S 7.4V 20A 18650 Lithium Battery Charger Protection Board BMS Module for Power Tool Portable Device
Lieu d'origine Dongguan Chine
Nom de marque BAKTH / Neutral / OEM
Certification IEC62133
Numéro de modèle ITL0020200054-01
Quantité de commande min 2 pièces
Prix USD6.89-11.63 /PC
Détails d'emballage Carton de papier industriel
Délai de livraison 3-4 semaines
Conditions de paiement T / t
Capacité d'approvisionnement 10000pcs / mois

Contactez-moi pour des échantillons gratuits et des coupons.

Quel est l'app?:0086 18588475571

Nous avons parlé.: 0086 18588475571

skype: sales10@aixton.com

Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Taper Carte de protection de la batterie au lithium 2s Type de batterie Li-ion
Interface compatible SMBUS/IIC Tension de détection de charge (cellule) 4,100 V ± 0,050 V
Sur tension de détection de décharge (cellule) 3,100 V ± 0,050 V Sur la décharge actuelle 25A ± 0,5A
Sur la charge actuelle 25A ± 0,5A Température de déchargement -22 ℃ ~ 60 ℃ réglable
Température de charge 0 ℃ ~ 45 ℃ réglable Courant de Max.Discharge 20A
Dimension 120*53.5*2.5mm Échantillon Disponible
Mettre en évidence

2S 7.4V BMS protection board

,

18650 lithium battery charger module

,

power tool BMS with warranty
Laisser un message
Description de produit

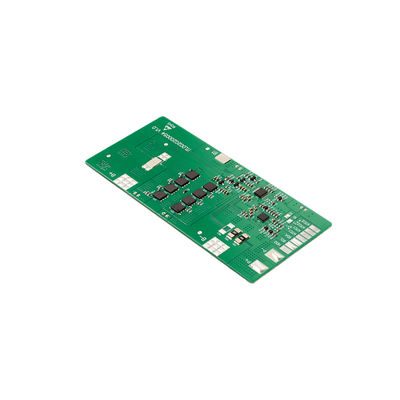

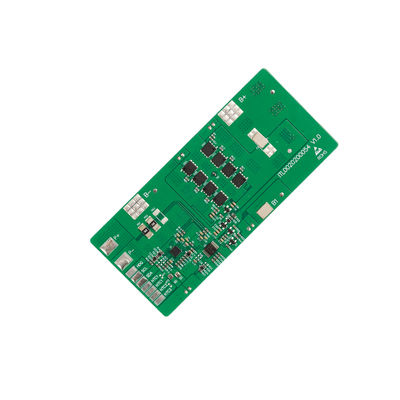

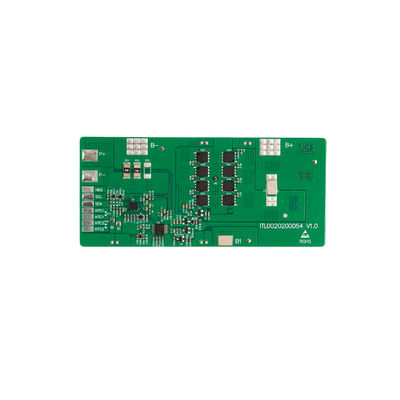

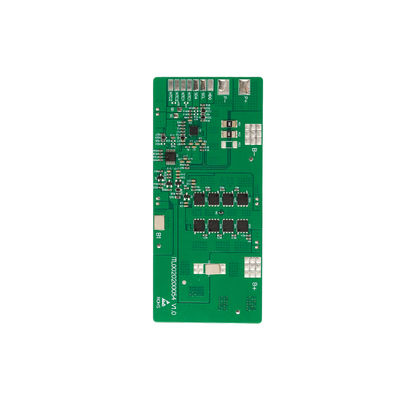

2S 7.4V 20A 18650 Lithium Battery Charger Protection Board BMS Module for Power Tool Portable Device

2S 7.4V 20A 18650 Lithium Battery Charger Protection Board BMS Module for Power Tool Portable Device 0

The ITL0020200054-01 is a compact, high-performance protection board exclusively engineered for 2-cell series (2S) lithium battery packs—supporting Li-ion, Li-polymer, and LiFePO4 chemistries—with a maximum discharge current of 20A. Designed for medium-power, low-to-mid voltage applications (nominal 7.4V for Li-ion), it balances robust safety safeguards with responsive current handling, making it an ideal choice for small electric tools, portable energy devices, and consumer electronics that demand reliable 2S power protection.

2S-Specific Protection & 20A High-Current Safeguards
Calibrated to address the unique needs of 2-cell series packs, the board delivers targeted protection optimized for 2S voltage dynamics and 20A discharge demands:

Overcharge Protection: Triggers at 4.1V (Li-ion) per cell (total 8.2V for 2S packs), instantly cutting charging current to prevent cell swelling or thermal runaway—critical for 2S systems where voltage imbalance between two cells can quickly degrade performance.

Undervoltage Protection: Shuts down discharge at 3.1V (Li-ion) per cell (total 6.2V for 2S packs), avoiding irreversible capacity loss from “weak cells” that often plague low-cell-count packs during 20A high-load operation.

20A Overcurrent & Short-Circuit Protection: Blocks currents exceeding 20A (max discharge) or 60A (peak surge), shielding the 2S pack and connected devices (e.g., wireless electric screwdrivers, small portable fans) from burnout during startup or sustained use.

2-Cell Active Balancing: Automatically equalizes voltage across both cells during charging, eliminating the common issue of uneven charge in 2S packs. This extends the battery’s lifespan by up to 30% compared to unbalanced systems and maintains consistent 20A discharge capability.

About Us

Shenzhen BAKTH Technology Co., Ltd. was established in 2002. For 21 years, we've specialized in battery pack assembly and PCM/BMS design and production. Our 5,000-square-meter factory features automated production lines and SMT assembly capabilities.

2S 7.4V 20A 18650 Lithium Battery Charger Protection Board BMS Module for Power Tool Portable Device 1

Certifications

2S 7.4V 20A 18650 Lithium Battery Charger Protection Board BMS Module for Power Tool Portable Device 2

FAQ

What kind of certificate your battery pack owned?

ISO9001, ISO14001, UL, BIS, KC, USTC, CE, CB - our battery packs have reliable quality assurance.

Do you have MOQ?

No limitation - we offer competitive pricing based on order quantity. Sample orders are welcome to test our quality before bulk orders.

What's the warranty? How can we guarantee quality?

Standard warranty is 12 months (negotiable for special products). Our complete production process ensures quality before shipment.

What's the lead time?

Standard products: 3-4 weeks for samples (depending on cell availability), 5-8 weeks for bulk orders (varies by model and quantity).

Can we have our own Logo on the battery pack? Can you accept customized battery?

Yes - our professional R&D team can provide customized solutions according to your requirements.
