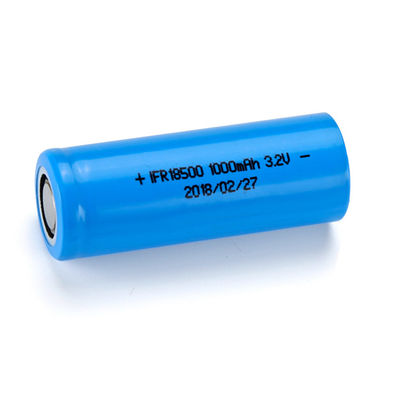

3.2V 1000Mah Rechargeable Li Ion Battery 1500mAh Cylindrical Lifepo4 Battery Cell IFR 18500FE
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH |
| Model Number | IFR 18500FE |
| Minimum Order Quantity | 2 pieces |
| Price | CN¥11.18/pieces 2-499 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Load Quantity(cells) | 1 | Battery Type | Solid State |
|---|---|---|---|
| Cycle Life | 500 Cycles | Dimension (L*W*H) | 18.5*50.5(mm) Max |
| Application | Power Tools, Toys, Consumer Electronics, Home Appliances | Weight | About 35g, About 35g |
| Operating Temperature(℃) | -20~60℃ | Cathode Materials | LiFePO4 |
| Type | 18500 LiFEPO4 Battery | Size | 18.5*50.5(mm) Max |
| Max Charge Voltage | 3.65V | Discharge Cut Off Voltage | 2.0V |
| Standard Charge Current | 0.2C | Max Charge Current | 1000mAh |
| Charging Mode | CC/CV | Charging Temperature | 0~45℃ |
| Discharging Temperature | -20 ~ 60℃ | ||
| Highlight | 3.2V Rechargeable Li Ion Battery,3.2V Lifepo4 Battery Cell,1000Mah Rechargeable Li Ion Battery |
||
Product Description
3.2V 1000Mah Rechargeable Li Ion Battery 1500mAh Cylindrical Lifepo4 Battery Cell IFR 18500FE
Product Specifications
| Attribute | Value |
|---|---|
| Max Load Quantity(cells) | 1 |
| Battery Type | Solid state |
| Cycle Life | 500 cycles |
| Dimension (L*W*H) | 18.5*50.5(mm) Max |
| Application | Power Tools, Toys, Consumer Electronics, Home Appliances |
| Weight | about 35g |
| Operating Temperature(℃) | -20~60℃ |
| Cathode Materials | LiFePO4 |
| Type | 18500 LiFEPO4 Battery |
| Size | 18.5*50.5(mm) Max |
| Max charge voltage | 3.65V |
| Discharge cut off voltage | 2.0V |
| Standard charge current | 0.2C |
| Max charge current | 1000mAh |
| Charging mode | CC/CV |
| Charging Temperature | 0~45℃ |
| Discharging Temperature | -20 ~ 60℃ |
Product Overview
Power Tool Use Cylindrical lifepo4 battery cell 3.2V 1000Mah 1500mAh IFR 18500FE lithium phosphate battery with OEM Service available.
Technical Specifications
Key Features
- Production by automatic production line with high quality materials
- Nominal capacity: 1000mAh (0.2C)
- Nominal voltage: 3.2V
- Max charge voltage: 3.65V
- Discharge cut off voltage: 2.0V
- Standard charge current: 0.2C
- Max charge current: 1000mAh
- Standard discharge current: 0.2C
- Max discharge current: 3C
- Charging mode: CC/CV
- Internal resistance: ≤50
- Cycle life: 2000 cycles
Environmental Specifications
- Charging Temperature: 0~45℃
- Discharging Temperature: -20 ~ 60℃
- Storage temperature:
- ≤1 month: 45~60℃
- ≤3 months: 25~45℃
- ≤12 months: -20~25℃
- ≤60%RH
- Recharge every 6 months
- Humidity Range: 0~60% (non-condensing)
Physical Specifications
- Dimension: 18.5*50.5(mm)Max
- Weight: about 28g
- Brand: BAKTH / Neutral / OEM
- Warranty: 12 Months
- PCB/PCM: none
- Connector: none
- Battery type: LiFEPO4
- Rechargeable: Yes
