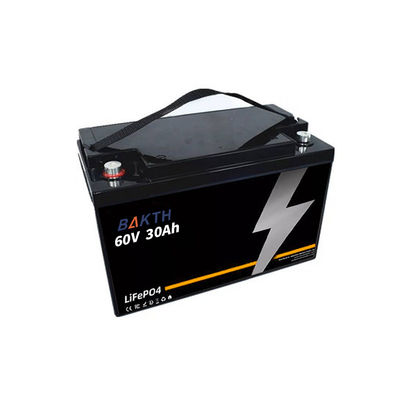

60V 30Ah LiFePO4 Lithium Battery Pack Electrical Batteries For Sightseeing Vehicles
| Place of Origin | DongGuan,China |
|---|---|
| Brand Name | BAKTH |
| Certification | Comply with IEC, UN38.3, MSDS |
| Model Number | BAKTH-60V 30Ah |
| Minimum Order Quantity | 2PCS |
| Price | USD3.00 ~ 20.00 |
| Packaging Details | Standard Export packing |
| Delivery Time | 20-25 days |
| Payment Terms | ,T/T,Western Union,MoneyGram |
| Supply Ability | 1000pcs/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cell Type | LiFePO | Nominal Voltage | 60.8V |
|---|---|---|---|
| Nominal Capacit | 30Ah | Nominal Energy | 1824Wh |
| Charge Voltage | 69.3V | Discharge Voltage | 47.5V |
| Standard Charging Current | 10A | Max. Continues Charge Current | 30A |
| Max. Continues Discharge Current | 30A | Peak Discharge Current | 90A (5 Sec) |
| Charger | Fast Charger / CC / CV | Design Life | 10 Years |
| Highlight | 60V LiFePO4 Lithium Battery Pack,60V lightweight lithium battery,30Ah LiFePO4 Lithium Battery Pack |
||
You can tick the products you need and communicate with us in the message board.
Product Description
60V 30Ah LiFePO4 Lithium Battery Pack for Sightseeing Vehicles
Product Specifications
| Attribute | Value |
|---|---|
| Cell Type | LiFePO |
| Nominal Voltage | 60.8V |
| Nominal Capacity | 30Ah |
| Nominal Energy | 1824Wh |
| Charge Voltage | 69.3V |
| Discharge Voltage | 47.5V |
| Standard Charging Current | 10A |
| Max. Continues Charge Current | 30A |
| Max. Continues Discharge Current | 30A |
| Peak Discharge Current | 90A (5 Sec) |
| Charger | Fast Charger / CC / CV |
| Design Life | 10 Years |
Product Description
The 60V 30Ah lithium iron phosphate (LiFePO4) battery represents a significant improvement over traditional deep cycle batteries, offering superior performance for sightseeing vehicles, golf carts, and other electric applications.
With a maximum charging voltage of 69.3V and discharge cut-off voltage of 47.5V, this battery operates efficiently across a wide temperature range from -20°C to 65°C, making it suitable for diverse environments.
Physical Specifications
| Size | 330 x 172 x 237 mm |
| Weight | 15 kg |
| IP Rating | IP66 |
| Self-Discharge | 3% per month |
| Cycle Life | >4000 cycles (DOD 80%) |
| Max Parallel Connection | 4P |
| Charge Temperature | 0°C ~ 60°C |
| Discharge Temperature | -20°C ~ 65°C |
| BMS | Intelligent BMS protection |
Key Features
- High Energy Capacity: 30Ah nominal capacity with 1,836Wh energy output
- Durable Construction: IP66-rated for dust and water resistance
- Extended Cycle Life: Over 4,000 cycles at 80% depth of discharge
- Smart BMS: Intelligent protection against overcharging, overheating, and short circuits
- Lightweight Design: Only 15 kg for easy installation
- Customization Options: Available with Bluetooth, WiFi, LCD display, and other optional features
Applications
- Electric scooters
- Golf carts
- Sightseeing vehicles
- Automated Guided Vehicles (AGVs)
- Electric rickshaws and e-trishaws
- Floor cleaning machines
- Renewable energy storage systems
- Marine applications
Frequently Asked Questions
What is a 60V 30Ah lithium battery?
A 60V 30Ah lithium battery is a rechargeable battery pack combining multiple lithium-ion cells to provide 60V voltage and 30Ah capacity. It's commonly used in electric vehicles, bikes, and solar energy storage systems, offering reliable power with long cycle life and lightweight design.
How long will a fully charged 60V 30Ah battery last?
Duration depends on current draw. At 10A load, it lasts approximately 3 hours; at 5A, about 6 hours. Actual runtime varies based on usage conditions.
What are the advantages of this battery?
Key benefits include higher voltage for efficient power delivery, compact size, lightweight design, longer cycle life, faster charging, and maintenance-free operation.
