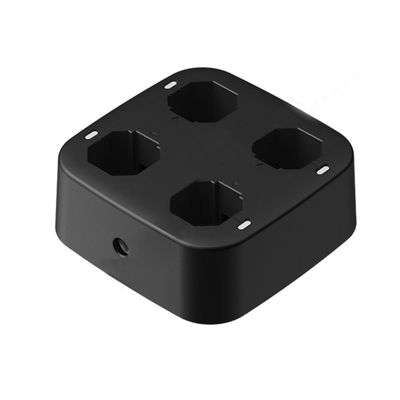

Safe 18650 Lithium Battery Charger CH1S04 Supports PD Fast Charging with USB-C and DC 2.5φx5.5φ Input
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH/OEM/Neutral |
| Certification | Comply with CE, RoHS |
| Model Number | BAKTH-CH1S04 |
| Minimum Order Quantity | 1-200PCS |
| Price | USD50.00-USD75.00/PCS |
| Packaging Details | Standard Export Packing |
| Delivery Time | 5-8 working days |
| Payment Terms | ,T/T |
| Supply Ability | Daily Delivery Capability: Approx. 1,800 units/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input Interface | USB-C DC 2.5φx5.5φ | Output Interface | 3-pin Metal Spring Piece |
|---|---|---|---|
| Input Voltage | 5~12 DC | Input Power | ≥18W |
| Output Voltage | 0~4.2V DC | Output Current | 0~1.6A |
| Operating Temperature | -30°C~70°C | Operating Humidity | 5% To 95% (No Condensation) |
| Maximum Output Power | 6.7W (Single Channel) | Charging Efficiency | ＞85% |
| Dimensions | Length 79.00mm ± 0.2mm Width 79.00mm ± 0.2mm Thickness 30.00mm ± 0.2mm | Weight | <200g (Power Adapter Not Included) |
| Compatible Battery | BAKTH-B1S38 | Protection | Temperature Control / Overcharge / Short Circuit / Overcurrent |
| Electromagnetic Compatibility | EN55032 Class B, EN61000-4-2,3,4,5,6,8,11A | Mechanical Property | GB/T2423.10-2008 |
| Highlight | USB-C Lithium Battery Charger,PD Fast Charging Lithium Battery Charger,18650 Lithium Battery Charger |
||
Product Description
Lithium battery 18650 charger CH1S04 supports PD Fast Charging Reliable Safety
Product Overview
The BAKTH-CH1S04 is a fast and safe charger specifically designed for BAKTH-B1S38 standard lithium battery packs. It is compatible with both USB-C and DC inputs and supports PD fast charging. The charger features intelligent charging protection to enhance safety and extend battery life.
Technical Specifications
| Attribute | Value |
|---|---|
| Input Interface | USB-C DC 2.5φx5.5φ |
| Output Interface | 3-pin metal spring piece |
| Input Voltage | 5~12 DC |
| Input Power | ≥18W |
| Output Voltage | 0~4.2V DC |
| Output Current | 0~1.6A |
| Operating Temperature | -30°C~70°C |
| Operating Humidity | 5% to 95% (No condensation) |
| Maximum Output Power | 6.7W (Single channel) |
| Charging Efficiency | ＞85% |
| Dimensions | Length 79.00mm ± 0.2mm Width 79.00mm ± 0.2mm Thickness 30.00mm ± 0.2mm |
| Weight | <200g (Power adapter not included) |
| Compatible Battery | BAKTH-B1S38 |
| Protection | Temperature control / overcharge / short circuit / overcurrent |
| Electromagnetic Compatibility | EN55032 class B, EN61000-4-2,3,4,5,6,8,11A |
| Mechanical Property | GB/T2423.10-2008 |
Key Features
- Compatible with USB-C and DC input
- Supports PD fast charging
- LED charging status indicator
- Simultaneous charging for 4 batteries
- Smart charging curve for efficient charging and extended battery life
- Real-time battery temperature monitoring to ensure charging safety
- Only compatible with BAKTH-B1S38 battery packs for charging
Manufacturing & Testing
- Strict SOP process: SMT soldering → Secondary testing → 48-hour burn-in
- Random sampling inspection for each batch: Withstand voltage test at 1.5 times the rated voltage
- EMC/EMS radiation testing
- 100% functional testing before shipment to ensure zero defects
Frequently Asked Questions
Q: Which lithium battery models are compatible with the BAKTH-CH1S04?
A: It is compatible with BAKTH-B1S38 (18650 cylindrical batteries).
Q: How long does it take to fully charge a battery?
A: For a 3300mAh battery, using a USB 5V/2A input or 18W fast charging, it takes approximately 1 hour to fully charge.
Q: Can it be used while charging?
A: Yes, it supports safe simultaneous charging and use, with more accurate temperature control compared to non-smart chargers.
Q: Is it compatible with international voltages?
A: Yes, it supports 5V input. With a travel adapter, it can be used worldwide.
Q: Does it have CE, RoHS, or other certifications?
A: It complies with CE, RoHS and other safety certifications.
