Lithium Lipo Batteries LP-922543-1S-3M30 3.7V 1050mAh Li-ion Polymer Battery Pack
| Place of Origin | China |
|---|---|
| Brand Name | BAKTH |
| Certification | IEC62133, UN38.3, MSDS |
| Model Number | LP-922543-1S-3M30 |
| Minimum Order Quantity | 10 |
| Price | US$2.75 |
| Packaging Details | 320pcs/ctn |
| Delivery Time | 3~5 weeks |
| Payment Terms | T/T |
| Supply Ability | 10000PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Li-Ion | Max Charge Voltage | 4.2V |
|---|---|---|---|
| Discharge Cut Off Voltage | 2.75V | Charging Temperature | 0~45℃ |
| Discharging Temperature | -20 ~ 60℃ | ||
| Highlight | 3.7v li polymer battery pack,1050mah li polymer battery pack |
||
Product Description

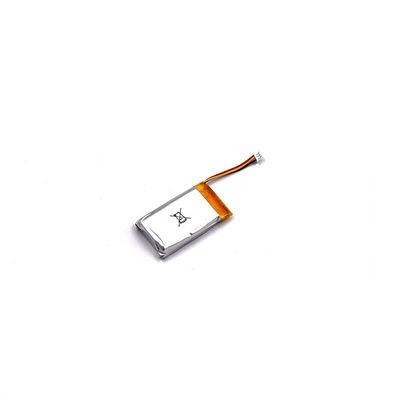

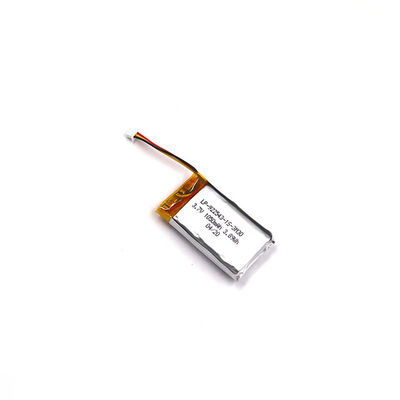

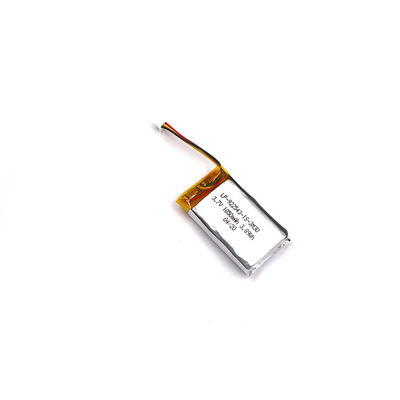

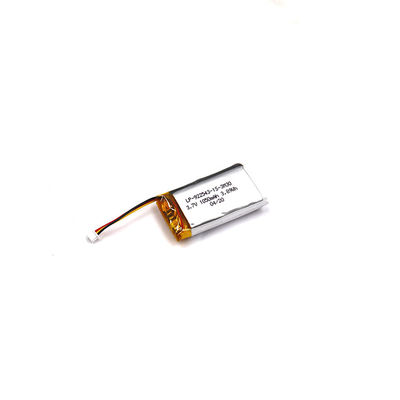

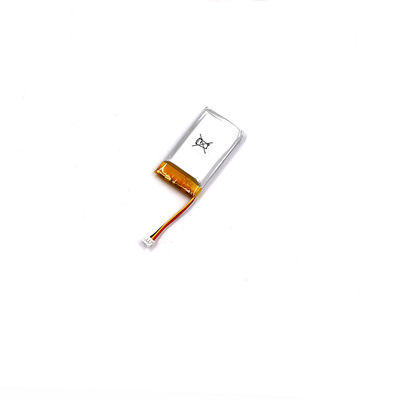

Lithium Lipo Batteries LP-922543-1S-3M30 3.7V 1050mAh Li-ion Polymer Battery Pack
Key Specifications
Battery Type:
Li-Ion Polymer
Nominal Voltage:
3.7V
Capacity:
1050mAh
Max Charge Voltage:
4.2V
Discharge Cut-off:
2.75V
Dimensions:
9.4 × 26 × 47mm
Weight:
23g
Warranty:
12 Months
Technical Specifications
| Parameter | Value |
|---|---|
| Standard Charge Current | 0.2C |
| Max Charge Current | 0.5C |
| Standard Discharge Current | 0.2C |
| Max Discharge Current | 1C |
| Internal Resistance | ≤100mΩ |
| Cycle Life | 300 cycles |
| Charging Mode | CC/CV |
| Connector Type | 3P connector |
| PCB/PCM Protection | Yes |
Environmental Specifications
Charging Temperature:
0~45℃
Discharging Temperature:
-20~60℃
Humidity Range:
0~85% (non-condensing)
Storage Conditions:
≤1 month: 45~60℃
≤3 months: 25~45℃
≤12 months: -20~25℃
≤60%RH, recharge every 6 months
≤3 months: 25~45℃
≤12 months: -20~25℃
≤60%RH, recharge every 6 months
Manufacturing Details
Produced on automated production lines using high-quality materials
Available as BAKTH brand, neutral, or OEM configuration
Rechargeable lithium-ion polymer battery pack
