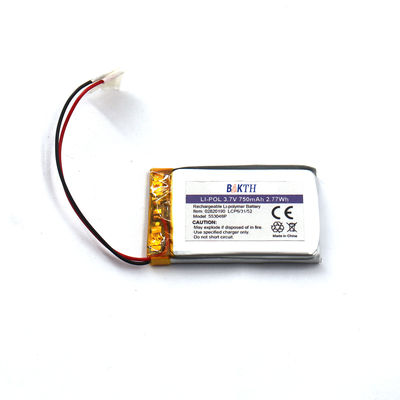

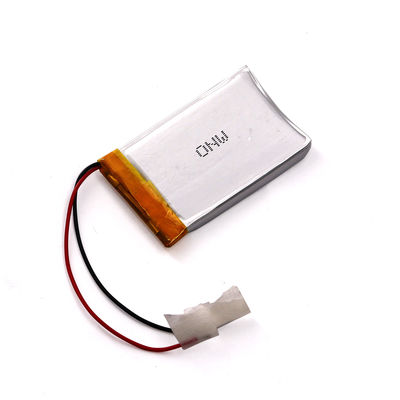

553048P-1S-2 3.7V 750mAh Battery Pack Lipo Li Ion Polymer Battery Pack
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH/OEM |
| Certification | ROHS |
| Model Number | BAKTH-553048P-1S-2 |
| Minimum Order Quantity | 5 pieces |
| Price | US$3.5~US$4.0/PC |
| Packaging Details | 300PCS/Carton |
| Delivery Time | 28 days |
| Payment Terms | T/T |
| Supply Ability | 100000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Type | Lithium Polymer Battery | Voltage | 3.7V |
|---|---|---|---|
| Norminal Capacity | 750mAh | End-off Voltage | 2.75V |
| Anode Material | LCO | Charging Rate | 0.5C |
| Discharge Rate | 1C | Storage Temperature | 0-45℃ |
| Weight | About 15g | Application | Electronic Consumer Applications |
| Dimension | Approx 5.6*31.5*53mm | ||
| Highlight | 750mAh Battery Pack Lipo,750mAh Li Ion Polymer Battery Pack,3.7V Li Ion Polymer Battery Pack |
||
Product Description
553048P-1S-2 3.7V 750mAh Battery Pack Lipo Li Ion Polymer Battery Pack
Product Specifications
| Attribute | Value |
|---|---|
| Battery Type | Lithium Polymer Battery |
| Voltage | 3.7V |
| Nominal Capacity | 750mAh |
| End-off voltage | 2.75V |
| Anode Material | LCO |
| Charging rate | 0.5C |
| Discharge rate | 1C |
| Storage Temperature | 0-45℃ |
| Weight | About 15g |
| Application | Electronic consumer applications |
| Dimension | approx 5.6*31.5*53mm |
Detailed Features
| Product features | Production by automatic production line with high quality materials | Charging Temperature | 0~45℃ |
| Nominal capacity | 750mAh | Discharging Temperature | -20 ~ 60℃ |
| Nominal voltage | 3.7V | Storage temperature |
≤1 month: 45~60℃ ≤3 months: 25~45℃ ≤12 months: -20~25℃ ≤60%RH Recharge every 6 months |
| Max charge voltage | 4.2V | Humidity Range | 0~85% (non-condensing) |
| Discharge cut off voltage | 2.75V | Dimension | about 5.7*32*53(mm) |
| Standard charge current | 0.2C | Weight | about 15g |
| Max charge current | 1C | Brand | BAKTH / Neutral / OEM |
| Standard discharge current | 0.2C | Warranty | 12 Months |
| Max discharge current | 1C | PCB/PCM | yes |
| Charging mode | CC/CV | Connector | none |
| Internal resistance | ≤180mΩ | Battery type | Li-pol |
| Cycle life | 300 cycles | Rechargeable or not | Yes |
