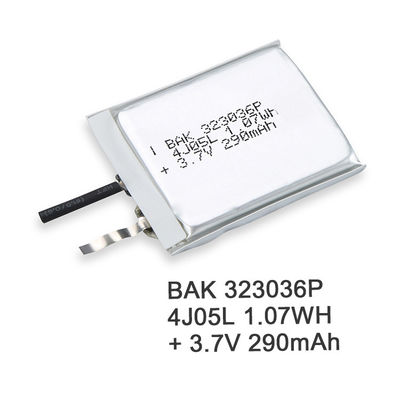

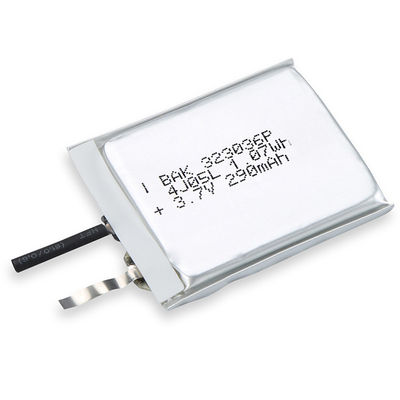

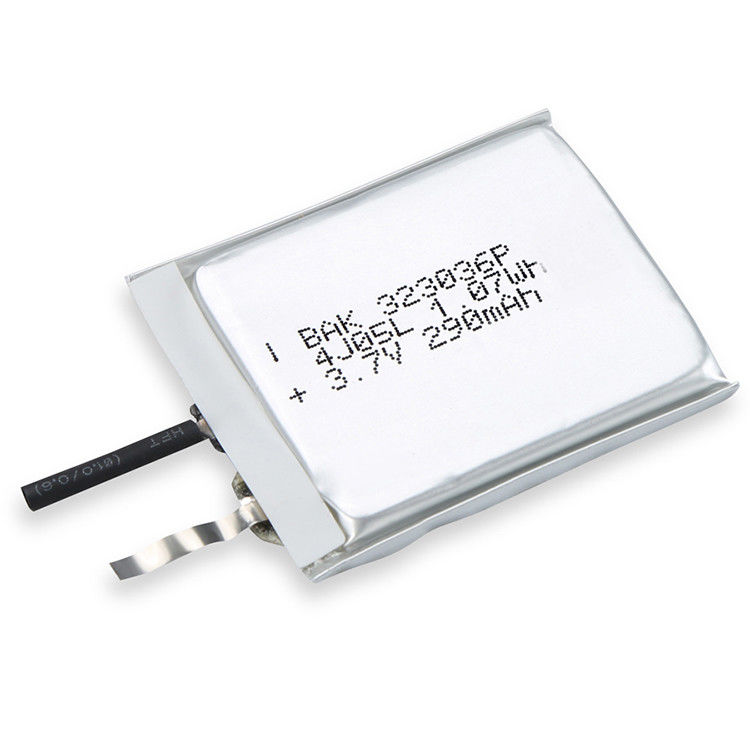

Small Li Pol Battery Rechargeable Li Ion Battery 323036P 3.7V 290mAh
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH / Neutral / OEM |
| Model Number | 323036P |
| Minimum Order Quantity | 2 pieces |
| Price | CN¥9.74/pieces 2-49 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Size | 323036P 3.7V 290mAh | Battery Type | Li-polymer, Lithium Polymer Battery |
|---|---|---|---|
| Cycle Life | 500 Cycles | Cathode Materials | LiCoO2 |
| Application | Consumer Electronics, Toys, Home Appliances, Solar Energy Storage Systems | Weight | About 7g, About 7g |
| Operating Temperature(℃) | -20~60℃ | Size | 4.5*30.5*48.5 (mm)Max |
| Max Charge Voltage | 4.2V | Discharge Cut Off Voltage | 2.75V |
| Standard Charge Current | 0.2C | Max Charge Current | 290mAh |
| Charging Mode | CC/CV | Discharging Temperature | -20 ~ 60℃ |
| Highlight | Small Li Pol Battery,Small Rechargeable Li Ion Battery,290mAh Li Pol Battery |
||
Product Description
Small Li Pol Battery Rechargeable Li Ion Battery 323036P 3.7V 290mAh
Product Specifications
| Attribute | Value |
|---|---|
| Battery Size | 323036P 3.7V 290mAh |
| Battery Type | Li-polymer, Lithium Polymer Battery |
| Cycle Life | 500 cycles |
| Cathode Materials | LiCoO2 |
| Application | Consumer Electronics, Toys, Home Appliances, Solar Energy Storage Systems |
| Weight | about 7g |
| Operating Temperature | -20~60℃ |
| Size | 4.5*30.5*48.5 (mm)Max |
| Max charge voltage | 4.2V |
| Discharge cut off voltage | 2.75V |
| Standard charge current | 0.2C |
| Max charge current | 290mAh |
| Charging mode | CC/CV |
Product Features
Production
Automatic production line with high quality materials
Nominal capacity
290mAh (0.2C)
Nominal voltage
3.7V
Max charge voltage
4.2V
Discharge cut off voltage
2.75V
Standard charge current
0.2C
Max charge current
290mAh
Standard discharge current
0.2C
Max discharge current
290mAh
Charging mode
CC/CV
Internal resistance
≤140 (AC Impedance, 1000Hz)
Cycle life
300 cycles (≥80%)
Charging Temperature
0~45℃
Discharging Temperature
-20 ~ 60℃
Storage temperature
≤1 month: 45~60℃
≤3 months: 25~45℃
≤12 months: -20~25℃
≤60%RH Recharge every 6 months
≤3 months: 25~45℃
≤12 months: -20~25℃
≤60%RH Recharge every 6 months
Humidity Range
0~85% (non-condensing)

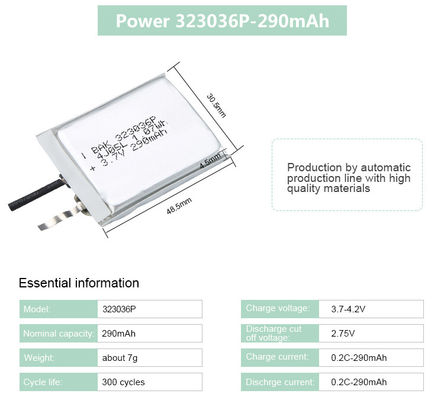

Dimension
4.5*30.5*48.5(mm) Max
Weight
about 7g
Brand
BAKTH / Neutral / OEM
Warranty
12 Months
PCB/PCM
none
Connector
none
Battery type
Lipolymer
Rechargeable
Yes
Product Images
