Wholesale Rechargeable Li-Po Batteries LP-803448-1S-2M 3.7V 1500mAh Lithium Ion Polymer Battery
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH/OEM/ODM |
| Model Number | LP-803448P-1S-2M |
| Minimum Order Quantity | 5 pieces |
| Price | CN¥21.49/pieces 5-499 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Size | LP-803448-1S-2M 3.7V 1500mAh | Battery Type | Solid State |
|---|---|---|---|
| Cycle Life | 300 Cycles | Cathode Materials | LiCoO2 |
| Application | Toys, Power Tools, Consumer Electronics, Electric Bicycles/Scooters, Electric Vehicles | Weight | About 20g |
| Operating Temperature(℃) | -20-60℃ | Type | Li-pol |
| Standard Charge Current | 0.2C | Max Charge Current | 1C |
| Charging Mode | CC/CV | Charging Temperature | 0-45℃ |
| Discharging Temperature | -20-60℃ | Warranty | 12 Months |
| Anode Material | LCO | The Charging Ratio | 0.5C |
| The Discharge Rate | 0.5C | ||
| Highlight | rechargeable li polymer battery pack,3.7v li polymer battery pack |
||
Product Description
Wholesale Rechargeable Li-Po Batteries LP-803448-1S-2M 3.7V 1500mAh Lithium Ion Polymer Battery
Product Specifications
| Attribute | Value |
|---|---|
| Battery Size | LP-803448-1S-2M 3.7V 1500mAh |
| Battery Type | Solid state |
| Cycle Life | 300 cycles |
| Cathode Materials | LiCoO2 |
| Application | Toys, Power Tools, Consumer Electronics, Electric Bicycles/Scooters, electric vehicles |
| Weight | About 20g |
| Operating Temperature(℃) | -20-60℃ |
| Type | Li-pol |
| Standard charge current | 0.2C |
| Max charge current | 1C |
| Charging mode | CC/CV |
| Charging Temperature | 0-45℃ |
| Discharging Temperature | -20-60℃ |
| Warranty | 12 months |
| Anode Material | LCO |
| The charging ratio | 0.5C |
| The discharge rate | 0.5C |
Technical Features
Electrical Characteristics
Nominal capacity: 1500mAh
Nominal voltage: 3.7V
Max charge voltage: 4.2V
Discharge cut off voltage: 2.75V
Internal resistance: ≤210
Charging Parameters
Standard charge current: 0.2C
Max charge current: 1C
Charging mode: CC/CV
Charging Temperature: 0~45℃
Physical Characteristics
Dimension: about 8.3*35*51(mm)
Weight: about 20g
Connector: 2P connector
PCB/PCM: yes
Environmental Specifications
Discharging Temperature: -20 ~ 60℃
Storage temperature:
≤1 month: 45~60℃
≤3 months: 25~45℃
≤12 months: -20~25℃
≤60%RH Recharge every 6 months
Humidity Range: 0~85% (non-condensing)

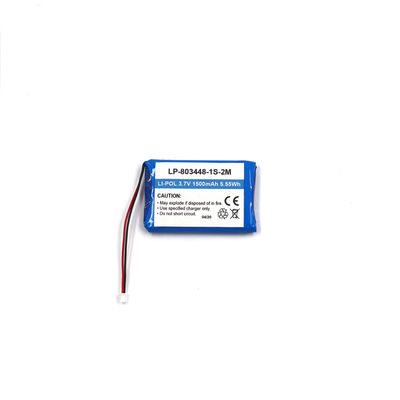

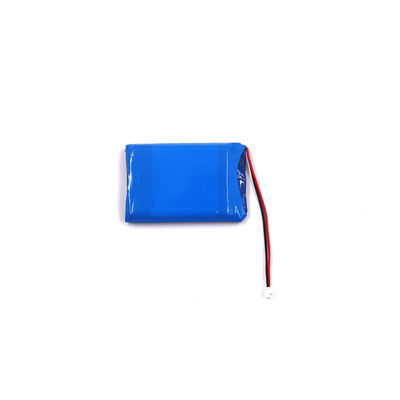

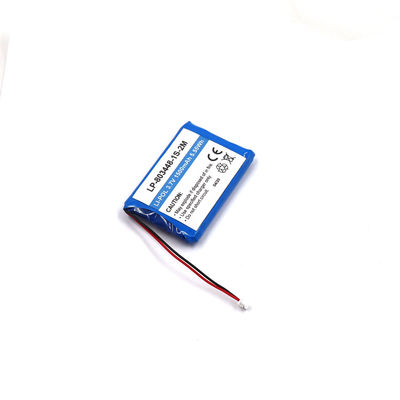

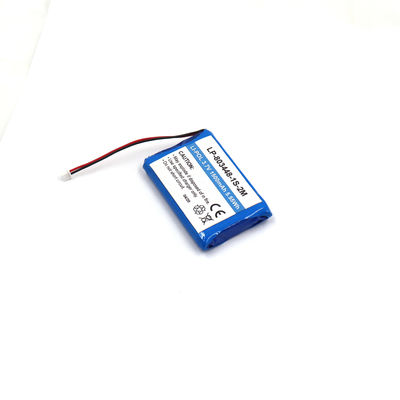

Product Images
