Digital Devices Use Lithium Polymer Battery 303562P-1S-3J 3.7V 650mAh Li-pol Lithium Ion Batteries
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH/OEM/ODM |
| Model Number | BAKTH-303562P-1S-3J |
| Minimum Order Quantity | 2 pieces |
| Price | CN¥28.05/pieces 2-499 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Size | 303562P-1S-3J | Battery Type | Solid State |
|---|---|---|---|
| Cycle Life | 300 Cycles | Cathode Materials | LiCoO2 |
| Application | Toys, Power Tools, Home Appliances, Consumer Electronics, Golf Carts, Electric Bicycles/Scooters, Electric Vehicles | Weight | About 15g |
| Operating Temperature(℃) | -20~60℃ | Type | Li-pol |
| Max Charge Voltage | 4.2V | Discharge Cut Off Voltage | 2.75V |
| Standard Charge Current | 0.2C | Max Charge Current | 1C |
| Charging Mode | CC/CV | Charging Temperature | 0-45℃ |
| Discharging Temperature | -20-60℃ | Warranty | 12months |
| Anode Material | LCO | ||
| Highlight | 3.7v li polymer battery pack,650mah li polymer battery pack |
||
Product Description
Digital Devices Lithium Polymer Battery 303562P-1S-3J
High-Performance 3.7V 650mAh Li-pol Battery
Premium quality lithium polymer battery designed for digital devices, featuring reliable performance, long cycle life, and built-in protection circuits. Manufactured using automated production lines with high-grade materials for consistent quality.
Key Specifications
Model Number
303562P-1S-3J
Nominal Voltage
3.7V
Capacity
650mAh
Cycle Life
300 cycles
Weight
Approx. 15g
Dimensions
30.5 × 36 × 65mm
Technical Parameters
| Parameter | Value |
|---|---|
| Max Charge Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.75V |
| Standard Charge Current | 0.2C |
| Max Charge Current | 1C |
| Charging Mode | CC/CV |
| Internal Resistance | ≤210mΩ |
| Operating Temperature | -20℃ to 60℃ |
Applications
Toys
Power Tools
Home Appliances
Consumer Electronics
Golf Carts
Electric Bicycles/Scooters
Electric Vehicles
Product Features
- Solid state lithium polymer battery with LiCoO2 cathode material
- Built-in PCB/PCM protection circuit
- Standard 3P connector for easy integration
- 12-month manufacturer warranty
- Available in BAKTH brand or OEM neutral packaging
- Optimized for both high and low temperature environments

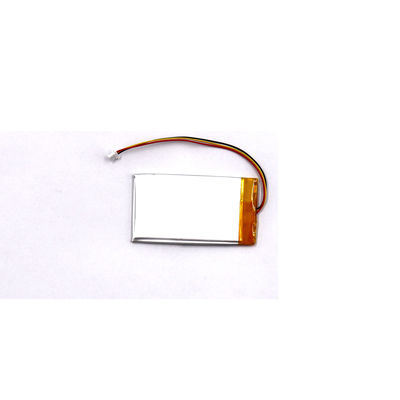

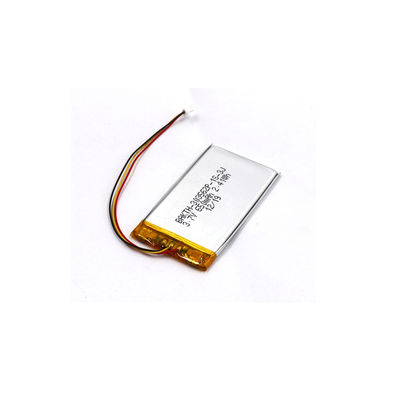

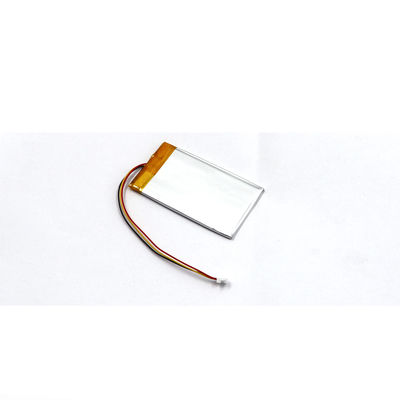

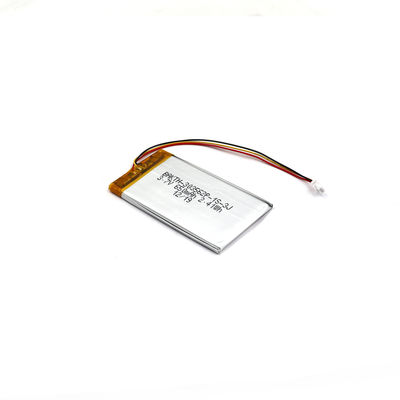

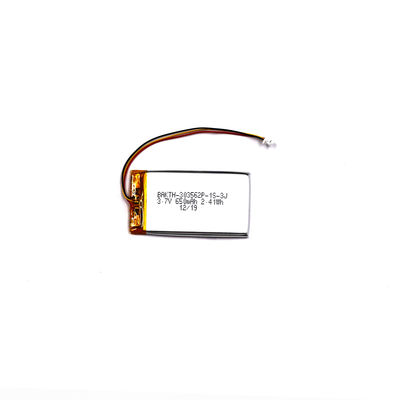

Product Images
