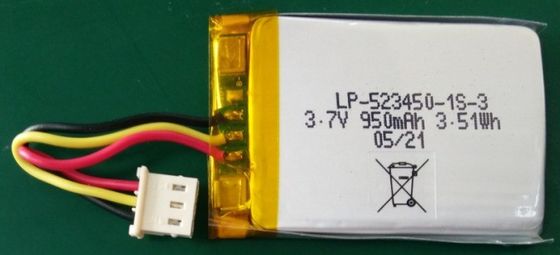

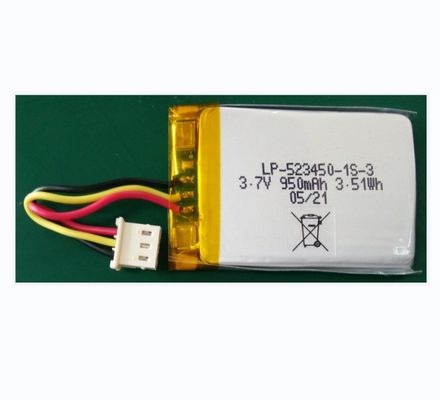

Factory Price LP-523450P-1S-3 3.7V 950mAh Lithium Polymer Battery Pack Rechargeable Battery Pack
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH/OEM |
| Model Number | LP-523450P-1S-3 |
| Minimum Order Quantity | 2 pieces |
| Price | CN¥35.26/pieces 2-499 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Size | 523450 | Application | Toys, Power Tools, Home Appliances, Consumer Electronics, Golf Carts, Electric Vehicles |
|---|---|---|---|
| Weight | About 25g | Type | Li-pol |
| Discharge Cut Off Voltage | 2.75V | Max Charge Voltage | 4.2V |
| Standard Charge Current | 0.2C | Max Charge Current | 1C |
| Charging Mode | CC/CV | Charging Temperature | 0~45℃ |
| Discharging Temperature | -20 ~ 60℃ | Warranty | 12 Months |
| Anode Material | LCO | The Charging Ratio | 0.5C |
| The Discharge Rate | 0.5C | Storage Type | 0-45℃ |
| Electric Energy | 3.5 Wh | ||
| Highlight | 3.7v li polymer battery pack,950mah li polymer battery pack |
||
Product Description
Factory Price LP-523450P-1S-3 3.7V 950mAh Lithium Polymer Battery Pack
Product Specifications
| Attribute | Value |
|---|---|
| Battery Size | 523450 |
| Application | Toys, Power Tools, Home Appliances, Consumer Electronics, Golf Carts, electric vehicles |
| Weight | about 25g |
| Type | Li-pol |
| Discharge cut off voltage | 2.75V |
| Max charge voltage | 4.2V |
| Standard charge current | 0.2C |
| Max charge current | 1C |
| Charging mode | CC/CV |
| Charging Temperature | 0~45℃ |
| Discharging Temperature | -20 ~ 60℃ |
| Warranty | 12 Months |
| Anode Material | LCO |
| The charging ratio | 0.5C |
| The discharge rate | 0.5C |
| Storage Type | 0-45℃ |
| Electric Energy | 3.5 Wh |
Detailed Features
Production
Automatic production line with high quality materials
Nominal capacity
950mAh
Nominal voltage
3.7V
Max charge voltage
4.2V
Discharge cut off voltage
2.75V
Standard charge current
0.2C
Max charge current
1C
Standard discharge current
0.2C
Max discharge current
1C
Charging mode
CC/CV
Internal resistance
≤260
Cycle life
300 cycles
Charging Temperature
0~45℃
Discharging Temperature
-20 ~ 60℃
Storage temperature
≤1 month: 45~60℃
≤3 months: 25~45℃
≤12 months: -20~25℃
≤60%RH Recharge every 6 months
≤3 months: 25~45℃
≤12 months: -20~25℃
≤60%RH Recharge every 6 months
Humidity Range
0~85% (non-condensing)
Dimension
about 52.5*34.5*52(mm)
Weight
about 25g
Brand
BAKTH / Neutral / OEM
Warranty
12 Months
PCB/PCM
yes
Connector
3P connector
Battery type
Li-pol
Rechargeable
Yes
