High Discharge Rate Lipo 3.7V 560mAh LP-443440 0.2C Lithium Ion Polymer Battery Pack for Consumer Electronics
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH / Neutral / OEM |
| Model Number | LP-443440-1S-3 |
| Minimum Order Quantity | 5 pieces |
| Price | CN¥25.96/pieces 5-99 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Size | 443440 | Battery Type | Solid State |
|---|---|---|---|
| Cycle Life | 300 Cycles | Cathode Materials | LiCoO2 |
| Application | Toys, Power Tools, Home Appliances, Consumer Electronics, Golf Carts, Electric Bicycles/Scooters, Electric Vehicles | Weight | About 13g |
| Operating Temperature(℃) | -20 ~ 60℃ | Type | Li-Ion |
| Size | About 4.7*34.5*41(mm) | Max Charge Voltage | 4.2V |
| Discharge Cut Off Voltage | 2.75V | Standard Charge Current | 0.2C |
| Max Charge Current | 1C | Charging Mode | CC/CV |
| Charging Temperature | 0~45℃ | Discharging Temperature | -20 ~ 60℃ |
| Warranty | 12 Months | ||
| Highlight | 3.7v li polymer battery pack,560mah li polymer battery pack |
||
Product Description
High Discharge Rate Lipo 3.7V 560mAh LP-443440 0.2C Lithium Ion Polymer Battery Pack
Product Specifications
| Battery Size | 443440 |
|---|---|
| Battery Type | Solid state |
| Cycle Life | 300 cycles |
| Cathode Materials | LiCoO2 |
| Application | Toys, Power Tools, Home Appliances, Consumer Electronics, Golf Carts, Electric Bicycles/Scooters, electric vehicles |
| Weight | about 13g |
| Operating Temperature | -20 ~ 60℃ |
| Type | Li-Ion |
| Size | about 4.7*34.5*41(mm) |
| Max charge voltage | 4.2V |
| Discharge cut off voltage | 2.75V |
| Standard charge current | 0.2C |
| Max charge current | 1C |
| Charging mode | CC/CV |
| Charging Temperature | 0~45℃ |
| Discharging Temperature | -20 ~ 60℃ |
| Warranty | 12 Months |
Product Features
Production Quality
Automatic production line with high quality materials
Nominal Capacity
560mAh
Nominal Voltage
3.7V
Max Charge Voltage
4.2V
Discharge Cut Off Voltage
2.75V
Standard Charge Current
0.2C
Max Charge Current
1C
Standard Discharge Current
0.2C
Max Discharge Current
1C
Charging Mode
CC/CV
Internal Resistance
≤210
Cycle Life
300 cycles
Dimension
about 4.7*34.5*41(mm)
Weight
about 13g
Brand
BAKTH / Neutral / OEM
Warranty
12 Months
PCB/PCM
yes
Connector
3P connector
Battery Type
Li-ion
Rechargeable
Yes
Temperature Specifications
Charging Temperature
0~45℃
Discharging Temperature
-20 ~ 60℃
Storage Temperature
≤1 month: 45~60℃
≤3 months: 25~45℃
≤12 months: -20~25℃
≤60%RH Recharge every 6 months
≤3 months: 25~45℃
≤12 months: -20~25℃
≤60%RH Recharge every 6 months
Humidity Range
0~85% (non-condensing)

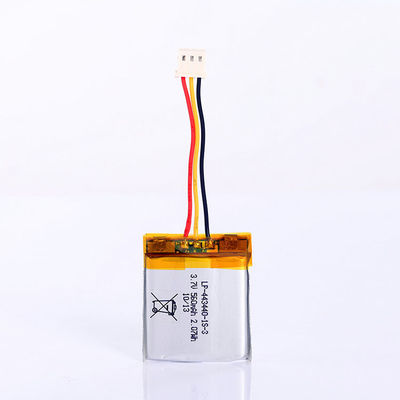

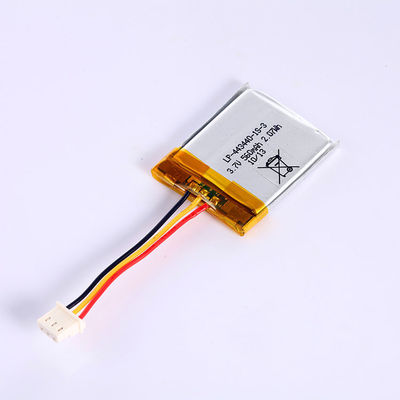

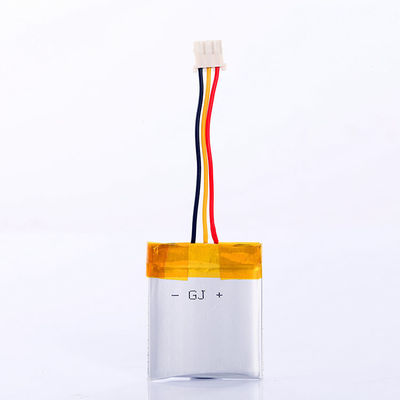

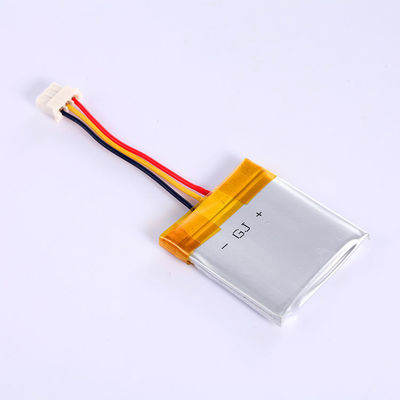

Product Images
Note: This high discharge rate LiPo battery is suitable for various consumer electronics and power applications. Please follow proper charging and storage guidelines for optimal performance and longevity.
