LP-922543P-1S-3M30 3.7V 1050mAh Lithium Polymer Battery Pack Rechargeable Battery Pack for Wearable Appliance

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Battery Size | 922543 | Battery Type | Solid State |
---|---|---|---|
Cycle Life | 300 Cycles | Cathode Materials | LiCoO2 |
Application | Toys, Power Tools, Home Appliances, Consumer Electronics, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Vehicles | Weight | About 30g |
Operating Temperature(℃) | 0~45℃ | Type | Li-pol |
Size | About 9.3*26*44(mm) | Max Charge Voltage | 4.2V |
Discharge Cut Off Voltage | 2.75V | Standard Charge Current | 0.2C |
Max Charge Current | 1C | Charging Mode | CC/CV |
Charging Temperature | 0~45℃ | Discharging Temperature | -20 ~ 60℃ |
Warranty | 12 Months | ||
Highlight | 3.7v li polymer battery pack,1050mah li polymer battery pack |
Product Description
LP-922543P-1S-3M30 3.7V 1050mAh Lithium Polymer Battery Pack Rechargeable Battery Pack for Wearable Appliance
Product Specifications
Battery Size | 922543 |
Battery Type | Solid state |
Cycle Life | 300 cycles |
Cathode Materials | LiCoO2 |
Application | Toys, Power Tools, Home Appliances, Consumer Electronics, Golf Carts, Submarines, Electric Bicycles/Scooters, Electric Vehicles |
Weight | About 30g |
Operating Temperature | 0~45℃ |
Size | About 9.3*26*44(mm) |
Technical Details
Electrical Characteristics
Nominal Voltage: 3.7V
Max Charge Voltage: 4.2V
Discharge Cut Off Voltage: 2.75V
Standard Charge Current: 0.2C
Max Charge Current: 1C
Performance
Cycle Life: 300 cycles
Internal Resistance: ≤210
Charging Mode: CC/CV
Standard Discharge Current: 0.2C
Max Discharge Current: 1C
Environmental Specifications
Charging Temperature: 0~45℃
Discharging Temperature: -20 ~ 60℃
Humidity Range: 0~85% (non-condensing)
Storage Temperature: Varies by duration
Physical Properties
Dimension: About 9.3*26*44(mm)
Weight: About 30g
Connector: 3P connector
PCB/PCM: Included
Product Highlights
- High-quality lithium polymer battery pack with 1050mAh capacity
- Manufactured using automated production line for consistent quality
- Rechargeable design with 300 cycle life
- Wide operating temperature range for versatile applications
- Compact and lightweight design ideal for wearable appliances
- Includes protection circuit module (PCM) for safety
- 12-month warranty for peace of mind

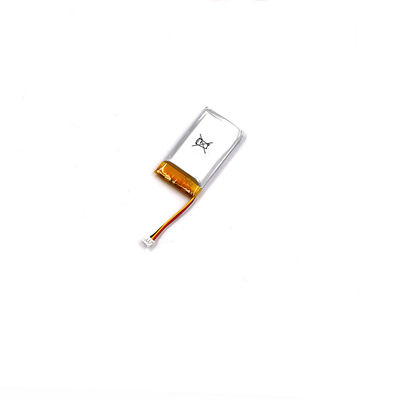

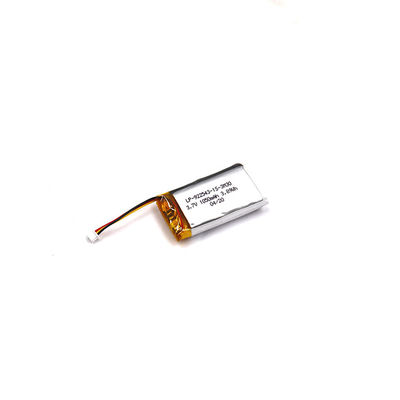

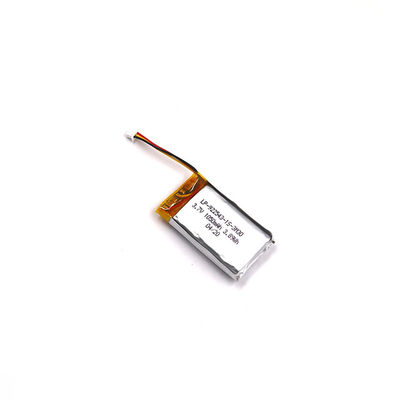

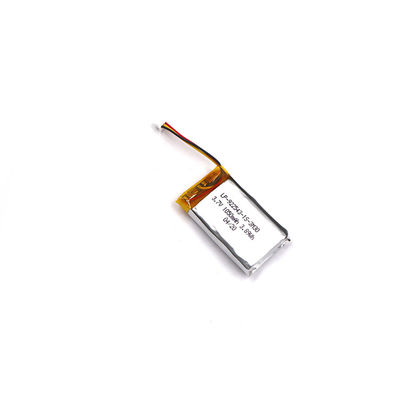

Product Images
