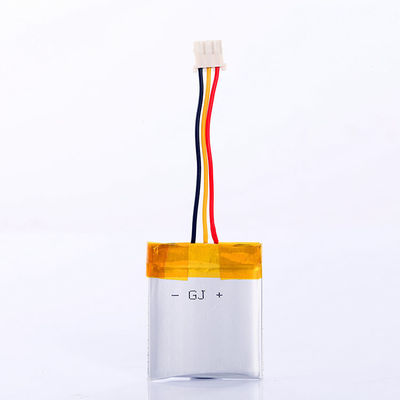

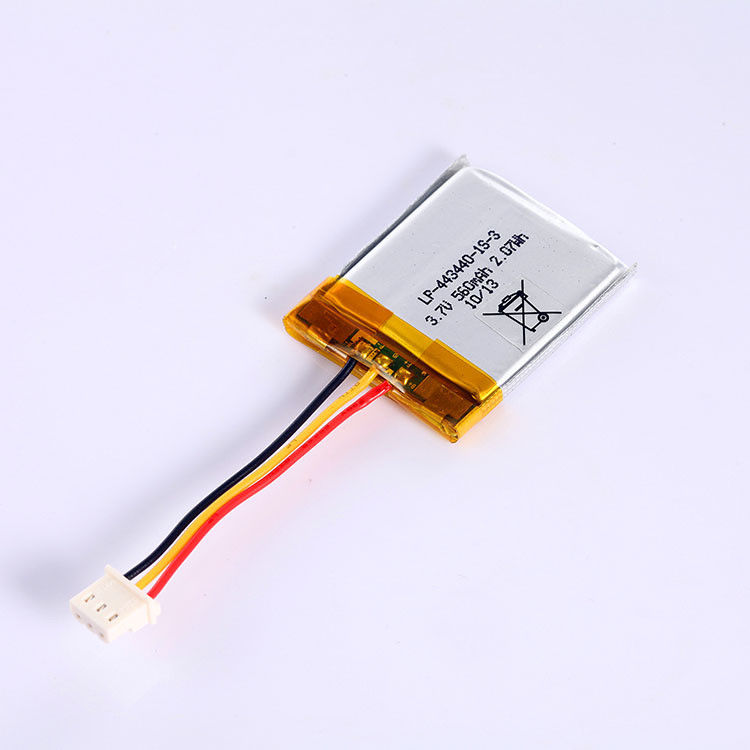

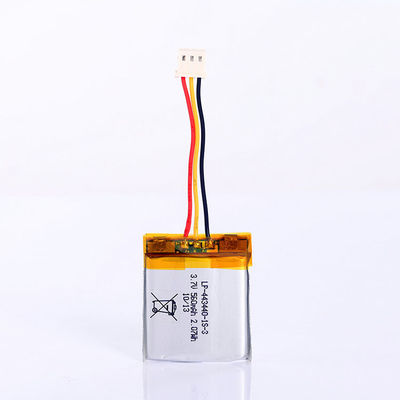

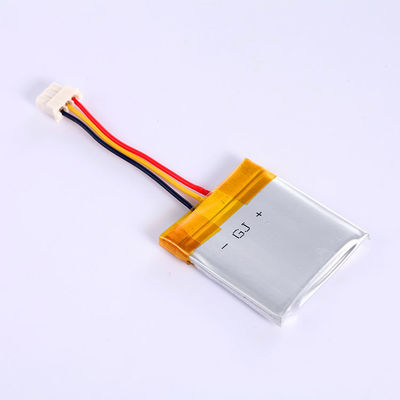

Rechargeable High Capacity Battery Lipo 3.7v Small Lithium Polymer Battery Pack 560mAh

Large Image : Rechargeable High Capacity Battery Lipo 3.7v Small Lithium Polymer Battery Pack 560mAh

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	BAKTH / Neutral / OEM
Model Number:	LP-443440-1S-3

Payment & Shipping Terms:

Price:	CN¥21.99/pieces 1-499 pieces
Packaging Details:	meet IATA
Supply Ability:	300000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Type:	Li-Ion	Size:	About 4.734.541(mm)
Max Charge Voltage:	4.2V	Discharge Cut Off Voltage:	2.75V
Standard Charge Current:	0.2C	Max Charge Current:	1C
Charging Mode:	CC/CV	Charging Temperature:	0~45℃
Discharging Temperature:	-20 ~ 60℃	Warranty:	12 Months
Port:	Shenzhen/Hongkong
Highlight:	rechargeable li polymer battery pack , 3.7v li polymer battery pack

Rechargeable high capacity battery lipo 3.7v small lithium polymer battery pack 560mAh

Product Description

Model	Nominal capacity	Nominal voltage	Max discharge current	Cycle life	Dimension	Certificate (Part)	Battery type
N18650CP High energy	3350mAh	3.6V	30A	600cycles	65.0*18 (mm)Max	UN38.3 UL1642 IEC62133	18650 cell
N18650CK High energy	3050mAh	3.6V	2C	500cycles	65.0*18 (mm)Max
N18650CL High energy	3000mAh	3.6V	3C	1000cycles	65.0*18 (mm)Max
N18650CNP stability	2500mAh	3.6V	30A	600cycles	65.0*18 (mm)Max
H18650CIL High rate	2500mAh	3.6V	3C	1000cycles	65.0*18 (mm)Max
H18650CH High rate	2600mAh	3.6V	4C	500cycles	65.0*18 (mm)Max
H18650CC High rate	2150mAh	3.6V	5C	1000cycles	65.0*18 (mm)Max
N21700CB High energy	4800mAh	3.6V	3C	1000cycles	65.0*18 (mm)Max
26650FS2-Fe Stability	3300mAh	3.2V	5C	2000cycles	26*65.5 (mm)Max		LiFEPO4
26650FS3-Fe Stability	3600mAh	3.2V	3C	2000cycles	26*65.5 (mm)Max
26650HP-Fe High rate	2200mAh	3.2V	15C	2000cycles	26*65.5 (mm)Max

This product is suitable for:

Product features	production by automatic production line with high quality materials	Charging Temperature	0~45℃
Nominal capacity	560mAh	Discharging Temperature	-20 ~ 60℃
Nominal voltage	3.7V	Storage temperature	≤1 month: 45~60℃ ≤3 months: 25~45℃ ≤12 months: -20~25℃ ≤60%RH Recharge every 6 months
Max charge voltage	4.2V	Humidity Range	0~85% (non-condensing)
Discharge cut off voltage	2.75V	Dimension	about 4.734.541(mm)
Standard charge current	0.2C	Weight	about 13g
Max charge current	1C	Brand	BAKTH / Neutral / OEM
Standard dischrge current	0.2C	Warranty	12 Months
Max dischrge current	1C	PCB/PCM	yes
Charging mode	CC/CV	Connector	3P connector
Internal resistance	≤210	Battery type	Li-ion
Cycle life	300 cycles	Rechargeable or not	Yes
