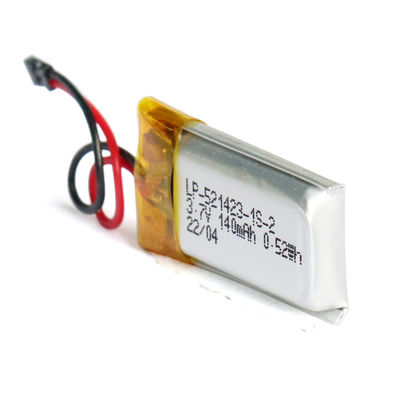

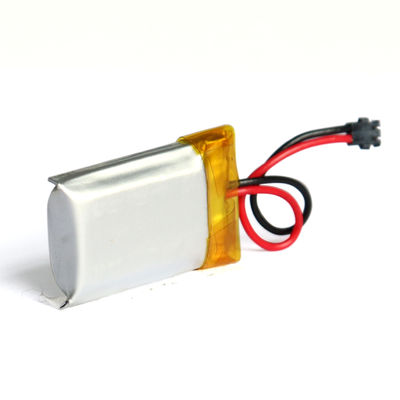

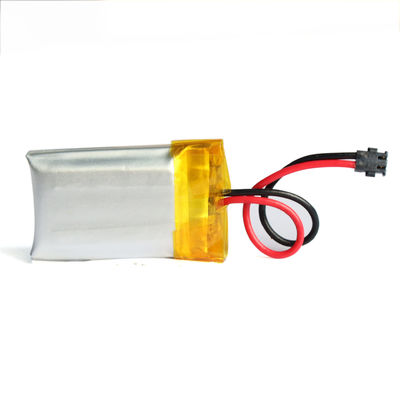

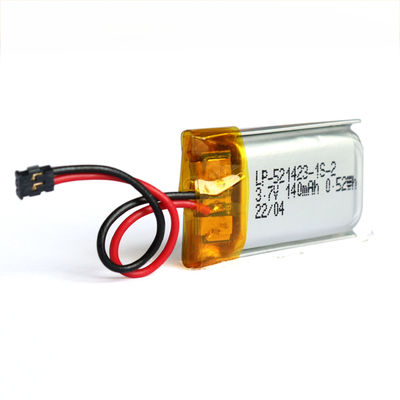

OEM Factory Supply LP-521423-1S-2 Battery 3.7Volt Lithium Pol Battery 140mAh Rechargeable Lithium Ion Batteries
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH/OEM |
| Model Number | LP-521423-1S-2 |
| Minimum Order Quantity | 2 pieces |
| Price | CN¥20.84/pieces 2-499 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Toys, Power Tools, Home Appliances, Consumer Electronics, Electric Vehicles | Weight | About 10g |
|---|---|---|---|
| Type | Li-pol | Standard Charge Current | 0.2C |
| Max Charge Current | 1C | Charging Mode | CC/CV |
| Charging Temperature | 0-45℃ | Discharging Temperature | -20-60℃ |
| Warranty | 12 Months | Anode Material | LCO |
| Battery Size | 521423 | The Charging Ratio | 0.5C |
| The Discharge Rate | 1C | Storage Type | 0-45℃ |
| Electric Energy | 0.52 Wh | ||
| Highlight | oem li polymer battery pack,rechargeable li polymer battery pack |
||
Product Description
OEM Factory Supply LP-521423-1S-2 Battery 3.7Volt Lithium Pol Battery 140mAh Rechargeable Lithium Ion Batteries
Product Specifications
| Attribute | Value |
|---|---|
| Application | Toys, Power Tools, Home Appliances, Consumer Electronics, electric vehicles |
| Weight | about 10g |
| Type | Li-pol |
| Standard charge current | 0.2C |
| Max charge current | 1C |
| Charging mode | CC/CV |
| Charging Temperature | 0-45℃ |
| Discharging Temperature | -20-60℃ |
| Warranty | 12 months |
| Anode Material | LCO |
| Battery Size | 521423 |
| The charging ratio | 0.5C |
| The discharge rate | 1C |
| Storage Type | 0-45℃ |
| Electric Energy | 0.52 Wh |
Product Features
Electrical Specifications
Nominal capacity: 140mAh
Nominal voltage: 3.7V
Max charge voltage: 4.2V
Discharge cut off voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1C
Standard discharge current: 0.2C
Max discharge current: 1C
Internal resistance: ≤210
Cycle life: 300 cycles
Physical & Environmental
Dimension: about 5.5*16*24(mm)
Weight: about 10g
Charging Temperature: 0~45℃
Discharging Temperature: -20 ~ 60℃
Humidity Range: 0~85% (non-condensing)
Storage temperature:
- ≤1 month: 45~60℃
- ≤3 months: 25~45℃
- ≤12 months: -20~25℃
- ≤60%RH Recharge every 6 months
General Information
Brand: BAKTH / Neutral / OEM
Warranty: 12 Months
PCB/PCM: yes
Connector: 2P connector
Battery type: Li-pol
Rechargeable: Yes
Production: Automatic production line with high quality materials
