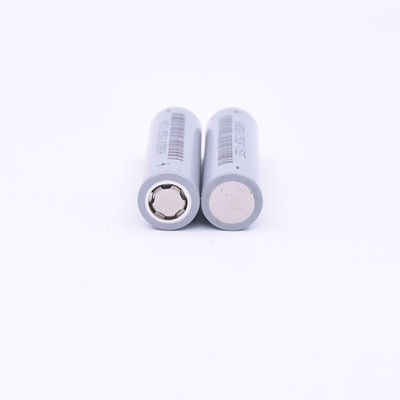

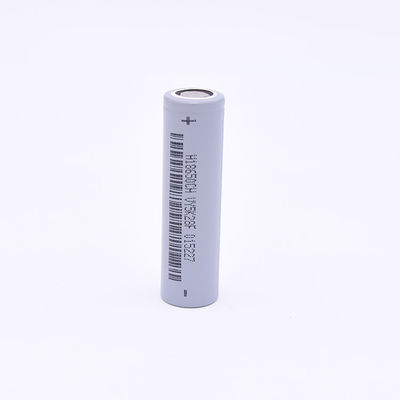

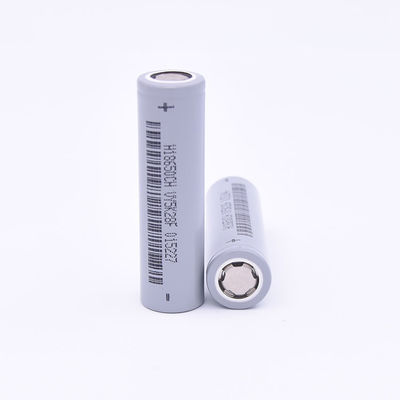

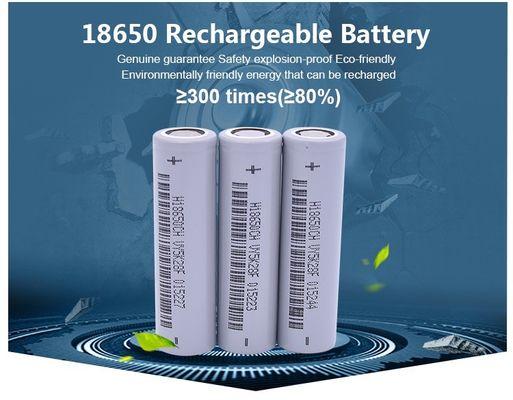

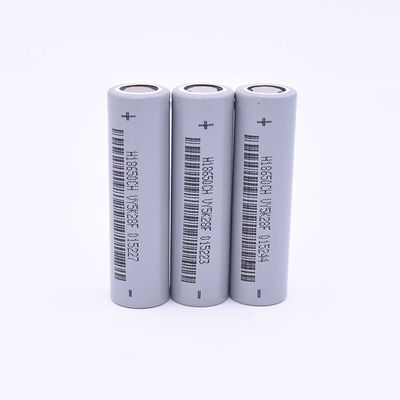

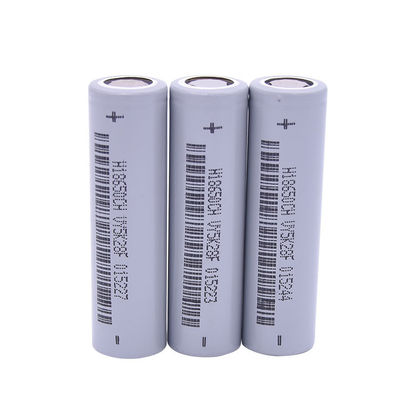

18650 3.7V 2600mAh BAK Cylindrical Lithium Ion Battery Cell 3C Rechargeable Power Battery
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH / Neutral / OEM |
| Model Number | N18650CH |
| Minimum Order Quantity | 100 pieces |
| Price | CN¥14.35/pieces 100-999 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Size | 18650 3.7V 2600mAh | Battery Type | Solid State |
|---|---|---|---|
| Cycle Life | 500 Cycles | Cathode Materials | LiCoO2 |
| Application | Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Electric Bicycles/Scooters, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies | Weight | About 50g |
| Operating Temperature(℃) | -20~60℃ | Type | Li-Ion |
| Nominal Capacity | 2600mAh (0.2C) Min 2500mAh (0.2C) | Nominal Voltage | 3.6V |
| Battery Type | 18650 Rechargeable Li-ion | Size | 65.0*18.4 (mm) Max |
| Discharge Cut Off Voltage | 2.75V | Standard Charge Current | 0.2C |
| Max Charge Current | 2500mA(≥10℃) | Charging Mode | CC/CV |
| Charging Temperature | 0~45℃ | ||
| Highlight | 18650 cylindrical lithium battery,18650 cylindrical lithium ion battery cell,3.7v cylindrical lithium battery |
||
Product Description
18650 3.7V 2600mAh BAK Cylindrical Lithium Ion Battery Cell
Key Specifications
| Attribute | Value |
|---|---|
| Battery Size | 18650 3.7V 2600mAh |
| Battery Type | Solid state Li-Ion |
| Cycle Life | 500 cycles |
| Cathode Materials | LiCoO2 |
| Weight | About 50g |
| Operating Temperature | -20~60℃ |
| Dimensions | 65.0*18.4 (mm) Max |
Technical Specifications
Electrical Characteristics
Nominal voltage: 3.6V
Nominal capacity: 2600mAh (0.2C)
Discharge cut off voltage: 2.75V
Max charge current: 2500mA(≥10℃)
Charging Parameters
Charging mode: CC/CV
Standard charge current: 0.2C
Max charge voltage: 4.2±0.05V
Charging Temperature: 0~45℃
Performance & Durability
Cycle life: 300 cycles (≥80%)
Internal resistance: ≤70mΩ
Max discharge current: 5000mA (5~45℃)
Storage temperature: -20~60℃ (≤1 month)
Applications
Suitable for toys, power tools, home appliances, consumer electronics, boats, electric bicycles/scooters, electric wheelchairs, electric power systems, solar energy storage systems, and uninterruptible power supplies.
Product Features
- High-quality BAK Li-ion cell with 3.6V 2500~2600mAH capacity
- Supports max charge current of 1C and max discharge current of 4C
- Maintains 70% capacity after 500 cycles
- Produced on automatic production line with premium materials
- Available in BAKTH brand, neutral, or OEM options
- 12-month warranty
