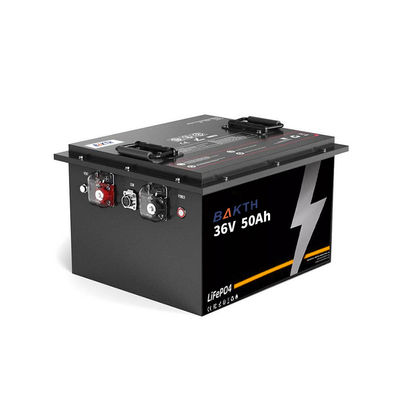

36V 50Ah Lifepo4 Battery Pack Compact OEM ODM 2.15kWh For Tour LSVs
| Place of Origin | Dongguan,China |
|---|---|
| Brand Name | BAKTH-36V 50Ah |
| Certification | UL 1642 / IEC 62133 / CE / RoHS / UN38.3 / MSDS |
| Model Number | BAKTH |
| Minimum Order Quantity | 2 |
| Price | USD3.00 ~ 20.00 |
| Packaging Details | 1PCS/Individual Box and 8PCS/Carton |
| Delivery Time | 20-25Days |
| Payment Terms | T/T,Western Union,MoneyGram |
| Supply Ability | 1000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Lithium Cell Type | LiFePO4 | Nominal Voltage | 38.4V |
|---|---|---|---|
| Nominal Capacity | 56Ah | Nominal Energy | 2.15kWh |
| Max Charge Voltage | 43.8V | Discharge Cut-off Voltage | 30V |
| Standard Charge Current | 22A (2.5 Hours) | Max Charge Current | 50A (Continues) |
| Max Discharge Current | 50A (Continues) | Peak Discharge Current | 200A (10S) |
| Highlight | 36V Lifepo4 Battery Pack,36V lithium iron phosphate battery pack,Compact Lifepo4 Battery Pack |
||
Product Description
36V 50Ah Lifepo4 Battery Pack Compact OEM ODM 2.15kWh For Tour LSVs
Product Specifications
| Attribute | Value |
|---|---|
| Lithium Cell Type | LiFePO4 |
| Nominal Voltage | 38.4V |
| Nominal Capacity | 56Ah |
| Nominal Energy | 2.15kWh |
| Max Charge Voltage | 43.8V |
| Discharge Cut-off Voltage | 30V |
| Standard Charge Current | 22A (2.5 hours) |
| Max Charge Current | 50A (Continues) |
| Max Discharge Current | 50A (Continues) |
| Peak Discharge Current | 200A (10S) |
Product Details
The 36V 50Ah Golf Cart Lithium Battery is designed for a wide range of applications, including golf carts, tour LSVs, club cars, and electric scooters.
Its compact design (385 x 338 x 245 mm) and lightweight build (27 kg) allow for easy integration without compromising power output.
Using premium LiFePO4 cells, this battery guarantees stable energy delivery throughout its discharge cycle. A rugged metal casing ensures durability while the intelligent BMS continuously monitors voltage, current, and temperature for optimal performance.
Technical Specifications
| SIZE | 385 × 338 × 245 mm |
| Weight | 27 kg |
| IP Rating | IP67 |
| Max Number of Parallel & Series | 4P / 4S |
| Cycle Life | >6000 cycles (DOD 80%) |
| Communication | RS485 / CAN-bus |
| Charge Temperature | 0°C ~ 60°C |
| Discharge Temperature | -20°C ~ 60°C |
| Case Material | Metal |
| User Manual | YES |
| Optional Upgrades | Self-heating / Bluetooth / APP / 4G / GPS / WiFi / LCD Display / RS232 / Anti-theft / Fans Cooling / Heatsink / Active Balance / Solar MPPT / etc. |
| Warranty | 5 Years |
| BMS Protection | Smart BMS: Over current / Over charge / Over discharge / Overload / Over voltage / Low voltage / Overheat / Over temperature / Low temperature / Lithium Cells Automatic Balance / etc |
| Laser Logo | Available |
| OEM / ODM | YES |
Key Features
- High Energy Capacity: Delivers a nominal 56Ah capacity and 2.15kWh energy output, ensuring consistent performance for electric vehicles.
- Extended Cycle Life: Engineered for 6000+ cycles at 80% DOD, significantly reducing replacement costs and maximizing uptime.
- Advanced Safety Features: Integrated Battery Management System (BMS) protects against overcharging, overheating, and short circuits, enhancing operational safety.
- Versatile Temperature Range: Reliable performance in extreme conditions, operating efficiently from -20°C to 65°C.
- Customizable Options: Available with OEM/ODM customization, including self-heating, Bluetooth connectivity, GPS tracking, and more.
About Us
Shenzhen BAKTH Technology Co., Ltd. was established in 2002. For 21 years, it has been dedicated to battery pack assembly and PCM/BMS design and production. It has a 5,000-square-meter self-owned factory equipped with automated production lines and SMT assembly lines.
Certificates
Frequently Asked Questions
Safety precautions for using 36V 50Ah golf cart batteries?
To ensure safe operation, avoid overcharging or deep discharging, keep the battery dry, and store it in moderate temperatures. Regular BMS monitoring prevents overheating and ensures stable voltage levels.
How to optimize BMS in custom lithium golf cart batteries?
An optimized Battery Management System (BMS) balances cell voltages, prevents overcharging, and protects against temperature extremes. Using high-quality MOSFETs, active balancing, and real-time monitoring, a well-designed BMS maximizes battery lifespan and ensures stable performance.
What certifications ensure lithium Battery safety in OEM?
Chinese OEM lithium batteries comply with UN38.3, UL, IEC, and CE standards. These certifications ensure safety, quality, and compliance with international regulations for transportation and usage.
