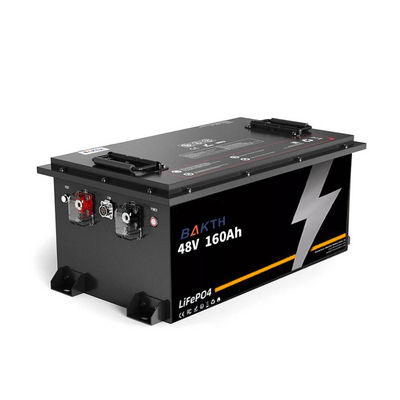

Custom LiFePO4 Golf Cart Batteries 48V 160Ah Lithium Ion Battery Packs With BMS 315A
| Place of Origin | DongGuan,China |
|---|---|
| Brand Name | BAKTH |
| Certification | UL 1642 / UL 2054 / IEC 62133 / IEC 62619 / FCC CE / RoHS Middle East: ESMA / SASO South Africa: SABS MSDS / UN38.3 |
| Model Number | BAKTH-48V 160Ah |
| Minimum Order Quantity | 2PCS |
| Price | USD3.00 ~ 20.00 |
| Packaging Details | Standard Export packing |
| Delivery Time | 20-25 days |
| Payment Terms | T/T,Western Union,MoneyGram |
| Supply Ability | 1000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Lithium-ion Cell Type | LiFePO4 (LFP) | Nominal Voltage | 51.2V |
|---|---|---|---|
| Nominal Capacity | 160Ah | Nominal Energy | 8.19kWh |
| Max Charge Voltage | 58.4V | Discharge Cut-off Voltage | 40V |
| Standard Charge Current | 22A (7.5 Hours) | Max Continues Charge Current | 160A |
| Max Continues Discharge Current | 160A | Peak Discharge Current | 315A (30S) |
| Highlight | Custom LiFePO4 Golf Cart Batteries,Custom Lithium Ion Battery Packs,160Ah LiFePO4 Golf Cart Batteries |
||
Product Description
Custom LiFePO4 Golf Cart Batteries 48V 160Ah Lithium Ion Battery Packs With BMS 315A
Technical Specifications
| Attribute | Value |
|---|---|
| Lithium-ion Cell Type | LiFePO4 (LFP) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 160Ah |
| Nominal Energy | 8.19kWh |
| Max Charge Voltage | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Standard Charge Current | 22A (7.5 hours) |
| Max Continuous Charge Current | 160A |
| Max Continuous Discharge Current | 160A |
| Peak Discharge Current | 315A (30S) |
Product Overview
The 48V (51.2V) 160Ah Lithium Golf Cart Battery is engineered to deliver reliable power for electric vehicles and equipment. With its LiFePO4 chemistry, this battery offers exceptional energy density and efficiency in a compact package measuring 800 × 332 × 332 mm and weighing approximately 75 kg.
Physical Specifications
| Size | 800 × 332 × 332 mm |
| Weight | 75 kg |
| IP Rating | IP67 |
| Cycle Life | >6000 cycles (DOD 80% 0.2C) |
| Charge Temperature | 0°C ~ 60°C |
| Discharge Temperature | -20°C ~ 60°C |
| Warranty | 5 Years |
Key Features
- High Energy Capacity: 160Ah nominal capacity with 8.19kWh energy output for extended runtime
- Durable Construction: Metal shell with IP67 rating for superior environmental protection
- Long Cycle Life: Over 6000 cycles at 80% depth of discharge
- Advanced BMS: Comprehensive protection against overcharging, over-discharging, and short circuits
- Customizable Options: Bluetooth monitoring, self-heating, and multiple communication protocols available
Certifications
Applications
Golf carts, sightseeing vehicles, electric scooters, rickshaws, floor cleaning machines, AGVs, forklifts, trolling motors, and other electric vehicles.
Frequently Asked Questions
What's the charging time for 48V golf cart batteries?
Most 48V lithium batteries charge fully in 3-5 hours with standard chargers. Fast charging options can reduce this to 2-3 hours without damaging cells.
Are 48V lithium batteries safe for golf carts?
Extremely safe when properly designed. Built-in BMS protection prevents overheating, overcharging, and short circuits. LiFePO4 chemistry is non-flammable and more stable than lead-acid.
What is the capacity of 315A BMS lithium golf cart batteries?
315A BMS systems typically support 100-200Ah capacities, enabling high-power applications. The robust BMS allows sustained high-current discharge for hill climbing.
