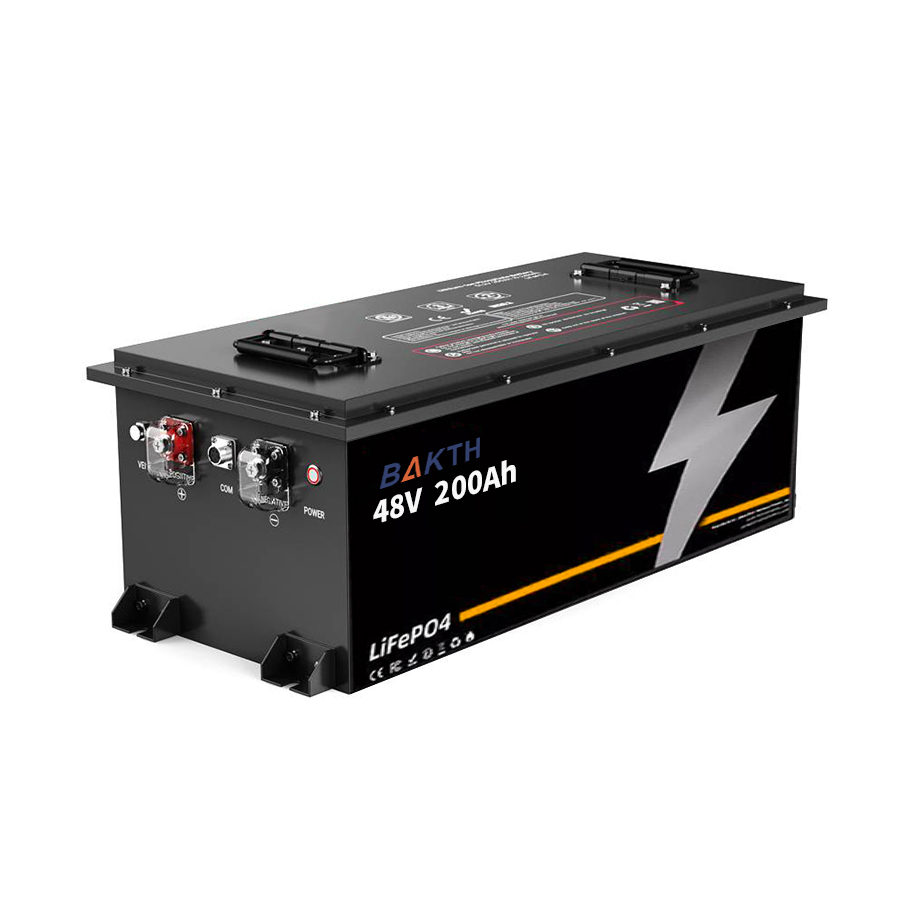

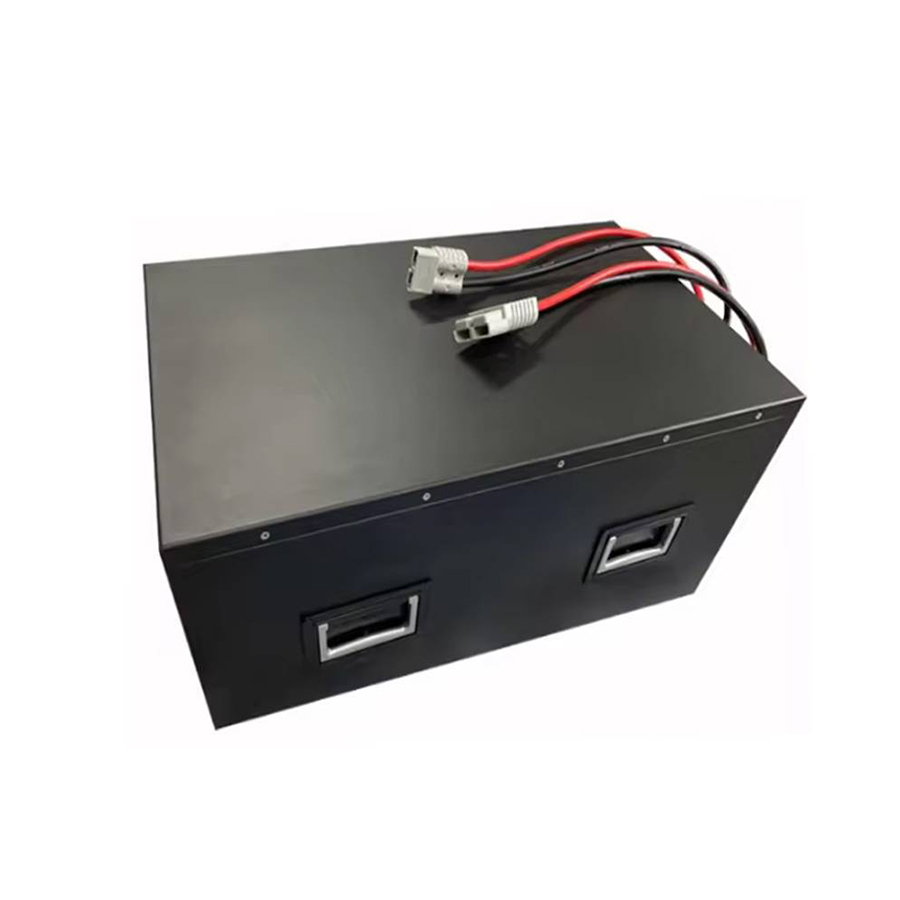

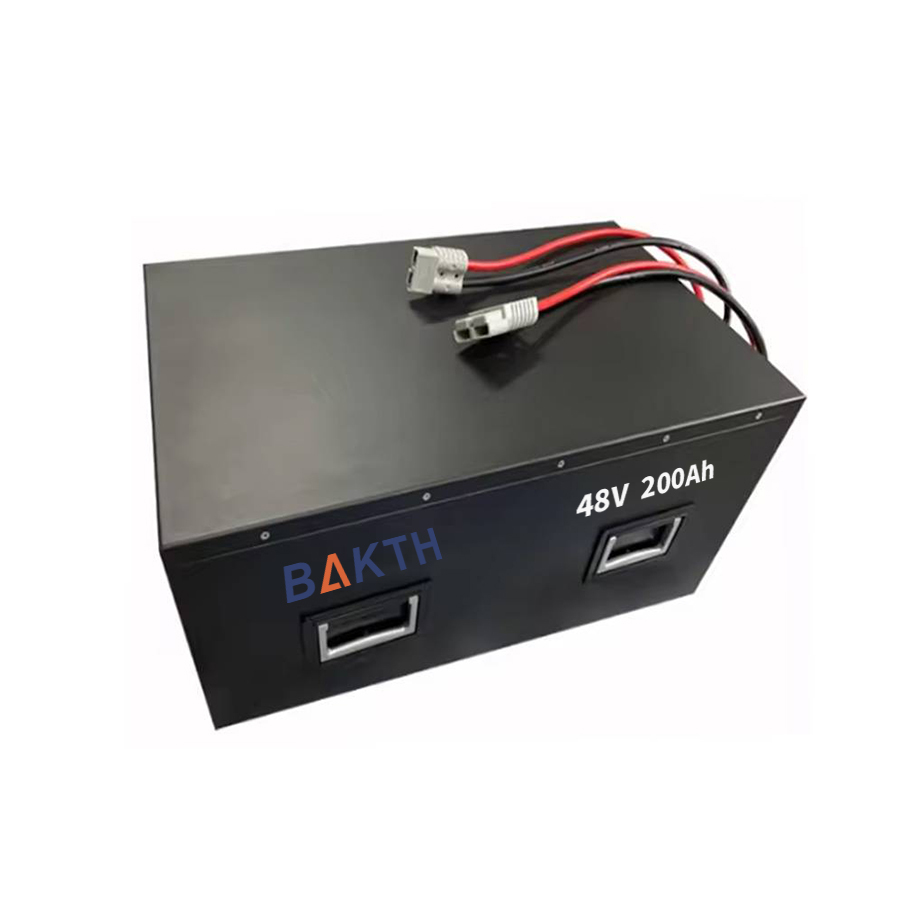

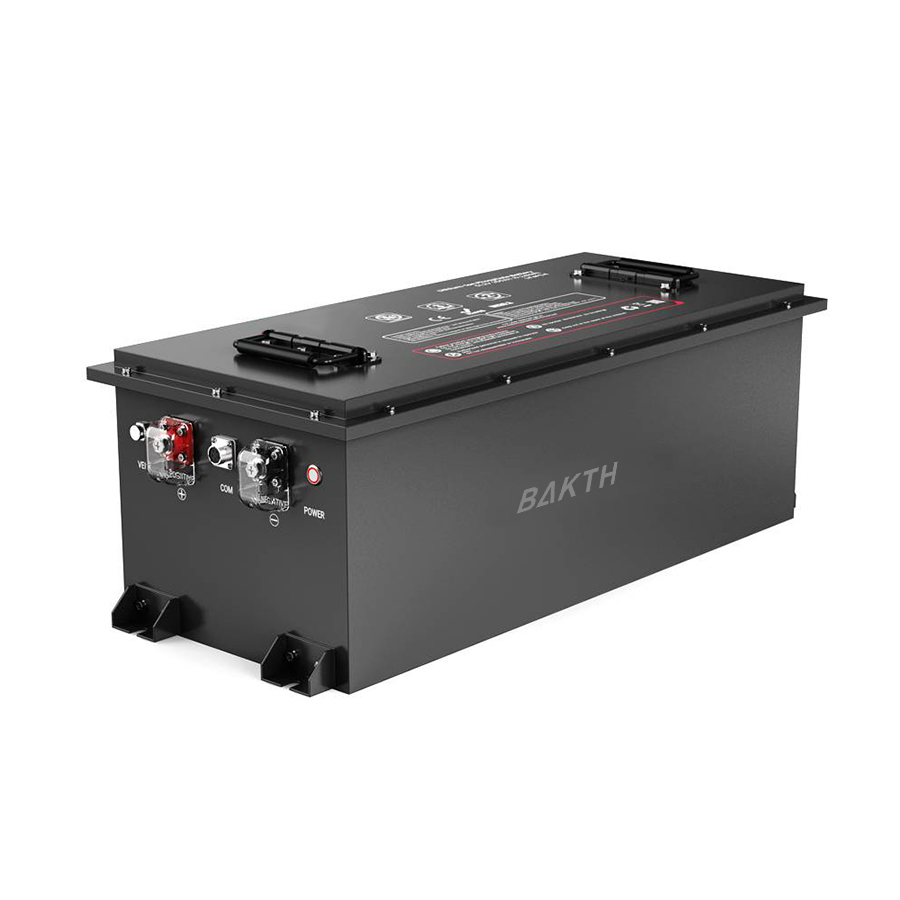

High Cycle Life 48V 200Ah LiFePO4 Golf Cart Battery
| Place of Origin | China |
|---|---|
| Brand Name | BAKTH |
| Certification | UN38.3 |
| Minimum Order Quantity | 2PCS |
| Price | US$675 |
| Packaging Details | Carton Package |
| Delivery Time | 15~18 days |
| Payment Terms | T/T |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Recharge Cycles | 500 | Charging Time | 2 Hours |
|---|---|---|---|
| Type | LFP | Capacity | 5000mAh |
| Discharging Temperature | -20-60℃ | Batteries | Li-ion18650 Cell |
| Max Discharge Current | 1C | Electric Energy | 18 Wh |
| Function | Provide Power | Storage Temp | -5℃~35℃ |
| Charge Cycles | 300 Times | Battery Size | 21700 |
| Open Voltage | 3.6 V | Manufacturer | Varies Based On Model |
| Cycle Time | 500times | ||
| Highlight | 48V 200Ah LiFePO4 golf cart battery,high cycle life golf cart battery,LiFePO4 battery pack with warranty |
||
Product Description
Product Review
The 48V 200Ah LiFePO4 battery is engineered for high performance and durability, making it an ideal choice for a diverse range of electric vehicles and equipment. With a nominal voltage of 51.2V and a substantial capacity of 200Ah, this battery provides a reliable energy source with a total nominal energy of 10.24 kWh. It is designed to offer long-lasting performance, supporting up to 6,000 cycles at 80% depth of discharge and over 15,000 cycles at 60% depth of discharge. The battery’s robust metal shell and advanced Battery Management System (BMS) ensure safety and efficiency, while its wide temperature range of -20°C to 65°C makes it adaptable to various operating conditions.
Ideal for applications such as golf carts, low-speed vehicles, electric motorcycles, and floor cleaning machines, this battery delivers high performance with minimal self-discharge of less than 2% per month. It includes advanced features such as self-heating, Bluetooth connectivity, and optional solar integration to enhance its versatility. With its IP67 rating, it is well-protected against dust and water ingress, ensuring reliable operation in challenging environments.
Specification
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Nominal Energy | 10240Wh |
| Dimensions [L x W x H] | 940*340*250mm 37 x 13.4 x 9.8 inches |
| Weight | 90KG 198.4 lb |
| Max Charge Voltage | 58.4V |
| Max Cut-off Discharge Voltage | 40V |
| Standard Charge Current | 40A (Fully charged in 5 hours) |
| Max Continuous Charge Current | 200A |
| Max Continuous Discharge Current | 200A |
| Peak Discharge Current | 200A |
| Internal Resistance | <10 mΩ |
| Charge Temperature | 0°C ~ 60°C |
| Discharge Temperature | -20°C ~ 65°C |
| Cycle Life | >6,000 Cycles (80% DOD) >15,000 cycles (60% DOD) |
| Self-Discharg | <2% per month |
| Usage Locations | Golf Carts, Club Car, Sightseeing Car, LSV Car, 2 Wheels / 3 Wheels / 4 Wheels Electric Scooter, Electric Trishaw, Electric Rickshaw, Electric Motorcycle, Electric Tricycle, Cabin Car, Electric Cargo Tricycle, Cargo Express Cargo Car, AGV, AMR, LGV (Laser Guided Vehicle), Floor Scrubber, Floor Clean Machine, Floor Polisher, Robot, etc. |
| Battery Shell | Metal |
| Optional Upgrades | Self-Heating, Fast Charger, Bluetooth, APP, WiFi, 4G, GPS, RS485, RS232, CAN-bus, Modbus, TCP/IP, Active Balance, LCD Screen, Solar Panel, Solar Controllers, MPPT, Inverters, LED Indicator Light, TACP, Fan, Heatsink, Circuit Breaker, Anti-Theft, etc. |
| Vent | Yes |
| Power Switch | Yes |
| Design Life | 10 Years |
| Warranty | 5 Years |
| User Manual | Yes |
| Silkscreen | Yes |
| Label Design / Printing | Yes |
| Laser Logo | Yes |
| Certifications | UN38.3 / UN3480 / MSDS / UL 1642 (Cells) / IEC 62133 (Cells) / ISO 9001 (Factory) |
Key Fetures
- High Capacity and Long Life: With a nominal capacity of 200Ah and a cycle life exceeding 15,000 cycles at 60% DOD, this battery offers unparalleled longevity and reliability.
- Wide Temperature Range: Operates efficiently in temperatures ranging from -20°C to 65°C, making it suitable for a variety of environments.
- Advanced BMS Protection: Equipped with a sophisticated Battery Management System to safeguard against overcurrent, overcharge, overdischarge, and other potential issues.
- Versatile Applications: Perfect for golf carts, low-speed vehicles, electric scooters, and more, providing versatile and high-performance energy solutions.
- Optional Upgrades: Features like Bluetooth connectivity, self-heating, and solar integration enhance functionality and user experience.
