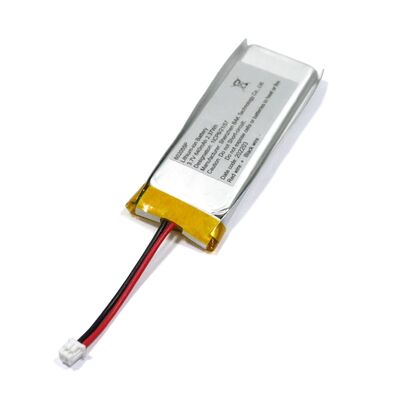

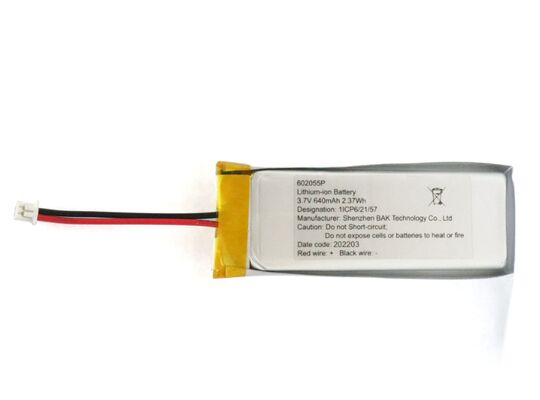

Portable Custom Battery Pack BAKTH-LP-602055-1S-2M For Consumer Electronics
| Place of Origin | China |
|---|---|
| Brand Name | BAKTH / Neutral / OEM |
| Certification | NONE |
| Model Number | LP-602055-1S-2M |
| Minimum Order Quantity | 5pcs |
| Price | USD5.0-5.5 |
| Payment Terms | T/T |
Product Details
| Type | Customized Battery Pack | Application | Consumer Electronics |
|---|---|---|---|
| Warranty | 1 Year | Sample | Acceptable |
Product Description
Product Specifications
| Attribute | Value |
|---|---|
| Type | Customized Battery Pack |
| Application | Consumer Electronics |
| Warranty | 1 year |
| Sample | Acceptable |
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal capacity | 640mAh |
| Nominal voltage | 3.7V |
| Max charge voltage | 4.2V |
| Discharge cut off voltage | 2.75V |
| Standard charge current | 0.2C |
| Max charge current | 1C |
| Standard discharge current | 0.2C |
| Max discharge current | 1C |
| Charging mode | CC/CV |
| Internal resistance | ≤210 |
| Cycle life | 300 cycles |
| Charging Temperature | 0~45℃ |
| Discharging Temperature | -20 ~ 60℃ |
| Storage temperature | ≤1 month: 45~60℃ ≤3 months: 25~45℃ ≤12 months: -20~25℃ |
| Humidity Range | 0~85% (non-condensing) |
| Dimension | about 6.5*21*56mm |
| Weight | about 15g |
| Brand | BAKTH / Neutral / OEM |
| PCB/PCM | Yes |
| Connector | 1P connector |
| Battery type | Li-ion |
| Rechargeable | Yes |
Customization Services
- Customized battery voltage, capacity size and case
- Customized connect plug and socket, cable, waterproof
- Customized special battery packs for any applications
- Customized BMS charging and discharging current, balance function with communication protocol
Contact us for custom battery solutions.
Product Advantages
- High energy density - Potential for yet higher capacities
- No prolonged priming needed - One regular charge is sufficient
- Low self-discharge - Less than half that of nickel-based batteries
- Low maintenance - No periodic discharge needed; no memory effect
- High current capability - Specialty cells can provide very high current
Safety Features
Our battery packs have passed rigorous safety tests including:
- Drop shock
- Impact
- Squeeze
- Soak
- Bonfire
- Over-charge
- Over-discharge
Guaranteed no leakage, no venting, no disassembly, no rupture and no fire with stable chemical structure.
