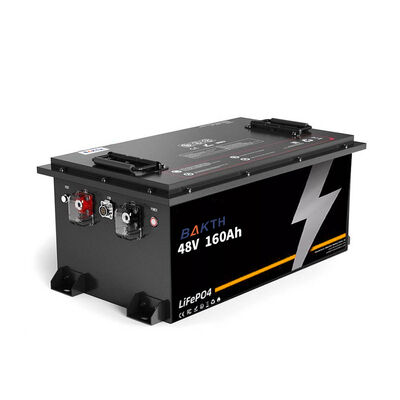

High Current 48V Lithium Ion Golf Cart Batteries 160ah Lithium Battery For Golf Carts

Parameters:

Rated Voltage: 51.2V

Rated Capacity: 160Ah

Nominal Energy: 8.19KWh

Maximum Charging Voltage: 58.4V

Discharge Cut-off Voltage: 40V

Standard Charging Current: 22A (7.5 hours)

Maximum Continuous Charging Current: 160A

Maximum Continuous Discharge Current: 160A

Peak Discharge Current: 315A (10 seconds)

Dimensions [Length x Width x Height]: 800×332×332 mm

Weight: 75kg

IP Rating: IP67

Maximum Series Connection: 4S

Maximum Parallel Connection: 4P

Cycle Life: >6000 cycles (D0D80% 0.2C)

Self-discharge: 2% (per month)

Charging Temperature: 0°C~60°C

Discharging Temperature: -20°C~65°C

Storage Temperature: 0°C~35°C

Charger: Optional

LCD Display: Optional

Switch: Yes

External Communication: RS485/CAN Bus

Key Features:

High Energy Capacity: With a nominal capacity of 160Ah and an energy output of 8.19kWh, it provides longer operating time for electric vehicles and enhances operational efficiency.

Sturdy structure: Equipped with a metal casing, it features an IP67 protection rating, providing excellent dust and water resistance, ensuring a long service life even in complex environments.

Long cycle life: Designed to support over 6,000 cycles at an 80% depth of discharge (DOD), significantly reducing replacement costs compared to traditional lead-acid batteries.

Intelligent Battery Management System (BMS): Advanced BMS offers comprehensive protection against overcharging, over-discharging, and short circuits, ensuring safe operation throughout the entire life cycle.

Customization options: Supports customization of optional features such as Bluetooth monitoring, self-heating function, and multiple communication protocols, etc., to meet specific requirements.

Applications:

Golf carts, sightseeing vehicles, club vehicles, 2-3 wheel electric scooters, electric rickshaws, electric tricycles, floor scrubbers, floor cleaners, AGVs, LGVS, RGVS, AMRs, electric forklifts, towing motors, etc.

FAQ:

Is the 48V lithium battery safe for golf carts?

With proper design, it is extremely safe. The built-in BMS protection can prevent overheating, overcharging and short circuits. The chemical property of lithium iron phosphate (LiFePO4) is not flammable and is more stable than lead-acid batteries.

What are the advantages of using lithium batteries over lead-acid batteries for golf carts?

Lithium batteries have a lifespan three times that of lead-acid batteries, weigh 50% less, require no maintenance, charge faster, and maintain a stable power output until depleted.

Maintenance requirements for 48V lithium batteries?

Almost maintenance-free - no need to add water, balance charging or clean. Just keep the terminals clean and maintain a charge level of 30-50% when the battery is not in use for a long time.
