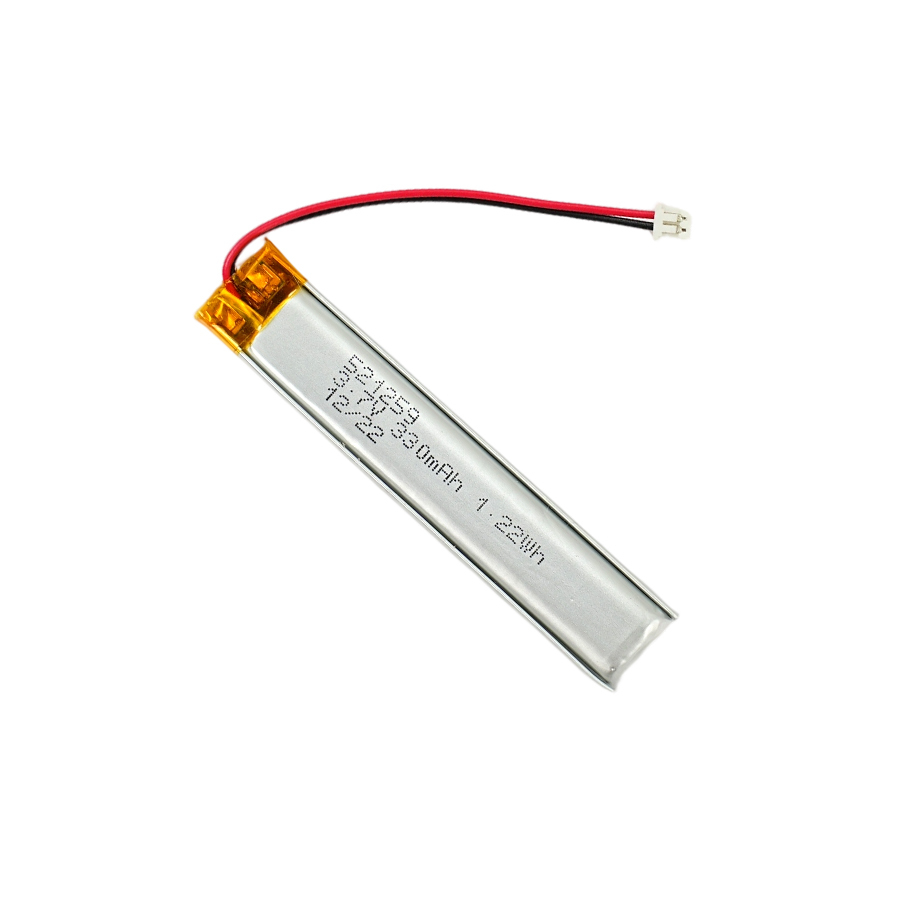

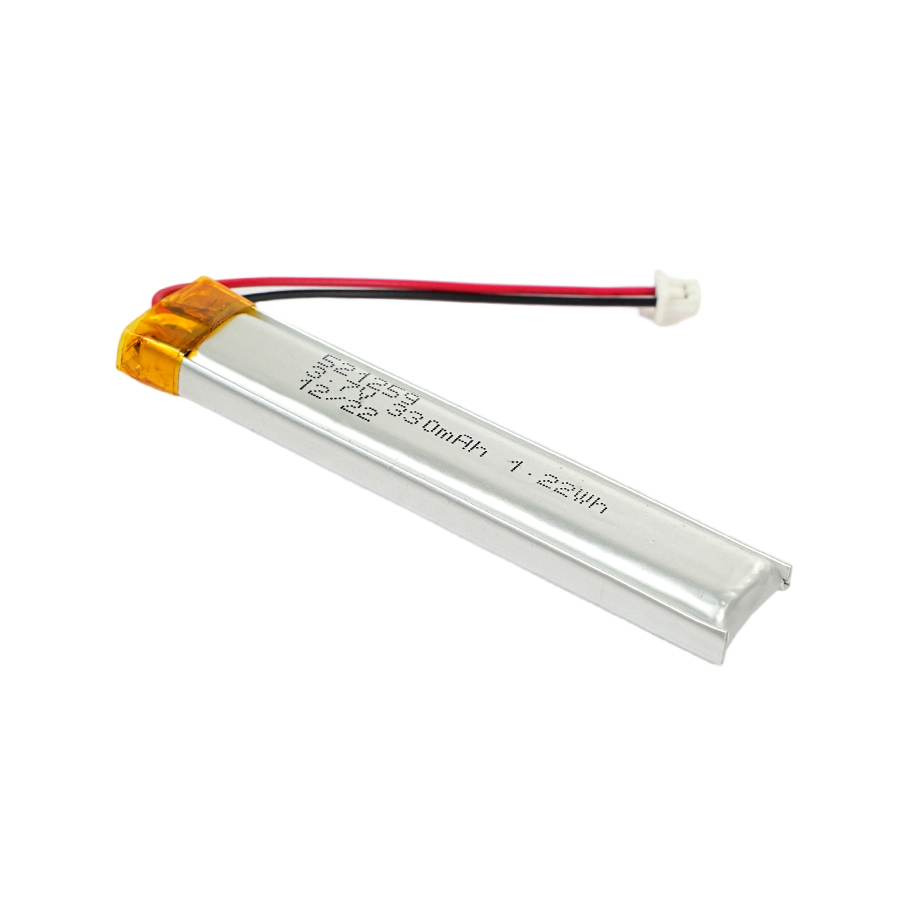

BAKTH-521259, 3.7 V, 330 mAh, 1.22 Wh
| Place of Origin | China |
|---|---|
| Brand Name | BAKTH |
| Certification | UN38.3 |
| Model Number | BAKTH-521259P |
| Minimum Order Quantity | 2PCS |
| Price | US$3.85 |
| Packaging Details | Carton |
| Delivery Time | 15~20days |
| Payment Terms | T/T |
| Supply Ability | 100000PCS/Month |
Product Details
| Voltage | 3.7V | Discharging Temp | 0℃~45℃ |
|---|---|---|---|
| Charge Current | 0.5C | Chargeable | Yes |
| Working Temperature | 0℃ ~45℃ | Capacity | 330mAh |
| Weight | Approx 7g | Cut-off Voltage | 2.8V |
| Dimension | Approx 6.0*13*62mm | ||
| Highlight | 3.7V Li Polymer battery,330mAh rechargeable battery pack,1.22Wh Li Polymer battery |
||
Product Description
Product Overview:
BAKTH-521259 is a 3.7V, 330mAh, 1.22Wh lithium-polymer battery pack engineered for compact, low-power electronics, offering stable voltage output and integrated protection circuitry for safe operation in devices like talking pens, voice recorders, and portable LED lights.
Description:
| Model NO. | BAKTH-521259 |
| Brand Name | BAKTH / Neutral / OEM |
| Compliant certification standards | UN38.3 / RoHS compliant |
| Discharging temperature | 0~45℃ |
| Electrical Performance | |
| Nominal Voltage | 3.7 V |
| Nominal Capacity | 330 mAh |
| Power Capacity | 1.22 Wh |
| Max. charging voltage | 4.2 V |
| Cut-off voltage | 2.8 V |
| Dimension | |
| Length | 6mm |
| Width | 13mm |
| Height | 62mm |
| Weight | 7g |
2. Physical & Safety Features
Constructed in a prismatic or pouch format (dimensions inferred as ~6.0mm × 13mm × 62mm based on model coding), the pack integrates a Protection Circuit Module (PCM) for overcharge, over-discharge, short-circuit, and overcurrent protection. Its lightweight design (~7g) ensure durability in talking pens, voice recorders, and portable LED lights.
3. Charging & Maintenance Guidelines
- Charging: Use a balanced Li-ion charger set to 4.2V with CC/CV mode. Recommended charge current: 0.5C–1C.
- Discharge Cutoff: Avoid discharging below to 3.0V to prevent cell damage.
- Storage: Store at 3.7V–3.8V per cell in a cool, dry environment (10°C–25°C).
- Cycle Life: 300–500 cycles at 80% depth of discharge under normal operating conditions.
