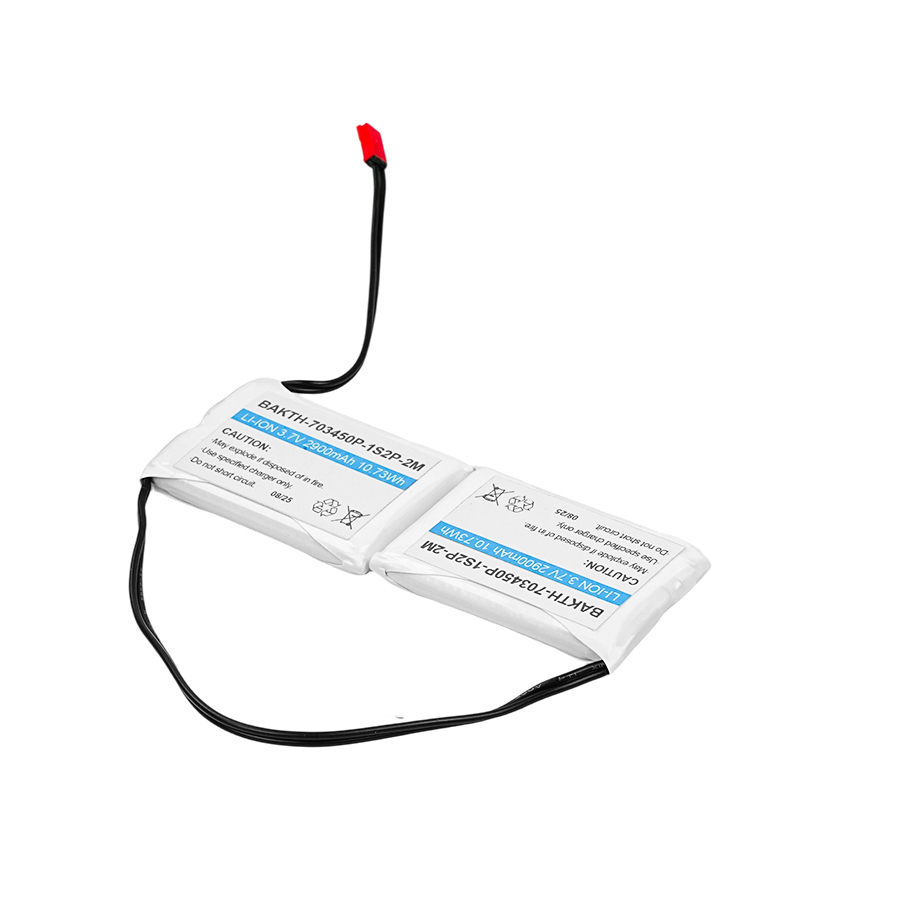

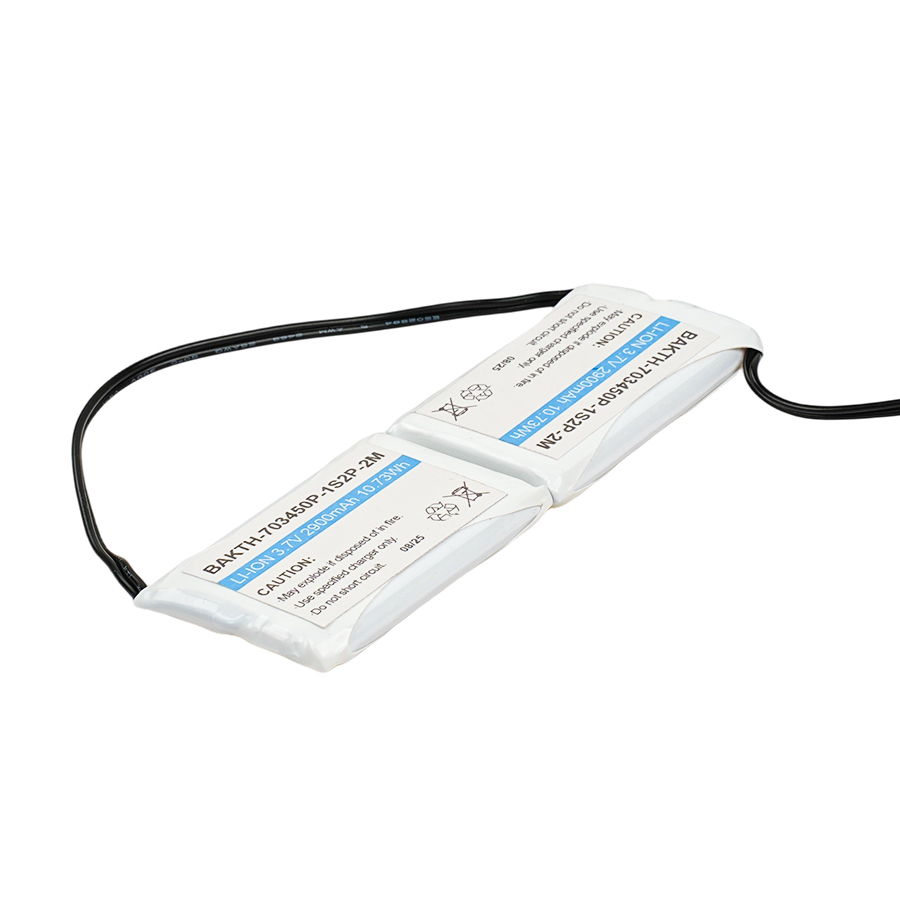

BAKTH-703450P-1S2P-2M, 3.7V, 2900mAh. 10.73Wh
| Place of Origin | China |
|---|---|
| Brand Name | BAKTH |
| Certification | UN38.3 |
| Model Number | BAKTH-703450P-1S2P-2M |
| Minimum Order Quantity | 2PCS |
| Price | US$6.7 |
| Packaging Details | Carton |
| Delivery Time | 15~20days |
| Payment Terms | T/T |
| Supply Ability | 100000PCS/Month |
Product Details
| Voltage | 3.7V | Discharging Temp | 0℃~45℃ |
|---|---|---|---|
| Charge Current | 0.5C | Chargeable | Yes |
| Working Temperature | 0℃ ~45℃ | Capacity | 2900mAh |
| Weight | Approx 60g | Cut-off Voltage | 2.8V |
| Highlight | 3.7V Li Polymer battery pack,2900mAh Li Polymer battery,10.73Wh Li Polymer battery pack |
||
Product Description
Product Overview:
BAKTH-703450P-1S2P-2M is a 3.7V, 2900mAh, 10.73Wh lithium-polymer battery pack with a 1S2P configuration, designed for reliable, long-lasting power in portable electronics. Below are its physical & safety features and charging & maintenance guidelines.
Description:
| Model NO. | BAKTH-703450P-1S2P-2M |
| Brand Name | BAKTH / Neutral / OEM |
| Compliant certification standards | IEC62133 / UN38.3 / RoHS |
| Discharging temperature | 0~45℃ |
| Electrical Performance | |
| Nominal Voltage | 3.7 V |
| Nominal Capacity | 2900 mAh |
| Power Capacity | 10.73 Wh |
| Max. charging voltage | 4.2 V |
| Cut-off voltage | 2.8 V |
2. Physical & Safety Features
- Compact Form Factor: Dimensions approximately 7.0 × 34 × 50 mm, enabling integration into slim devices such as smart POS terminals, handheld medical tools, and portable audio systems.
- Lightweight Design: Weighs only ~38g, ideal for wearable or handheld applications where ergonomics matter.
- Robust Construction: Uses a durable polymer casing with UL-94V0 flame-retardant material for enhanced thermal and mechanical protection.
- Integrated Protection Circuitry: Includes safeguards against:
- Overcharge (max voltage: 4.25V per cell)
- Over-discharge (cut-off at ~3.0V)
- Short circuit
- Excessive current draw (supports up to 1C continuous discharge)
- Temperature extremes (safe operation: 0–45°C charging, -20–60°C discharging)
- Parallel Configuration (1S2P): Two 1450mAh Li-Po cells in parallel increase capacity without raising voltage, maintaining compatibility with 3.7V systems while improving energy resilience.
3. Charging & Maintenance Guidelines
- Recommended Charger: Use a constant current/constant voltage (CC/CV) charger set to 4.2V ±0.05V with a maximum charge current of 0.5C (1.45A) for optimal cycle life and safety.
- Fast Charging Caution: While the cell can accept up to 1C charging, prolonged high-current charging may accelerate degradation; 0.5C is advised for daily use.
- Charging Environment: Charge only in dry, well-ventilated areas between 0°C and 45°C. Avoid charging in high-humidity or enclosed spaces.
- Storage Recommendations:
- For short-term: Keep charged between 40–80%.
- For long-term (>1 month): Store at ~50% charge in a cool, dry place (ideally 15–25°C).
- Recharge every 3 months if unused to prevent deep discharge.
- Avoid Physical Stress: Do not puncture, crush, or disassemble. Exposure to sharp objects or high impact may trigger thermal runaway.
- Disposal: Recycle at certified e-waste facilities. Do not incinerate or dispose of in household trash.
