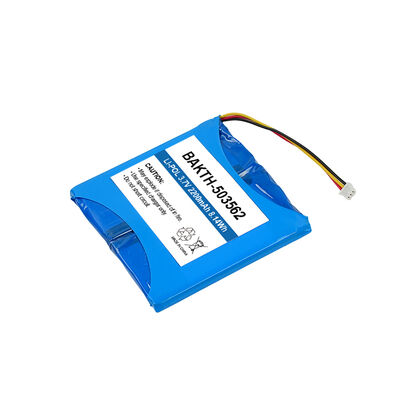

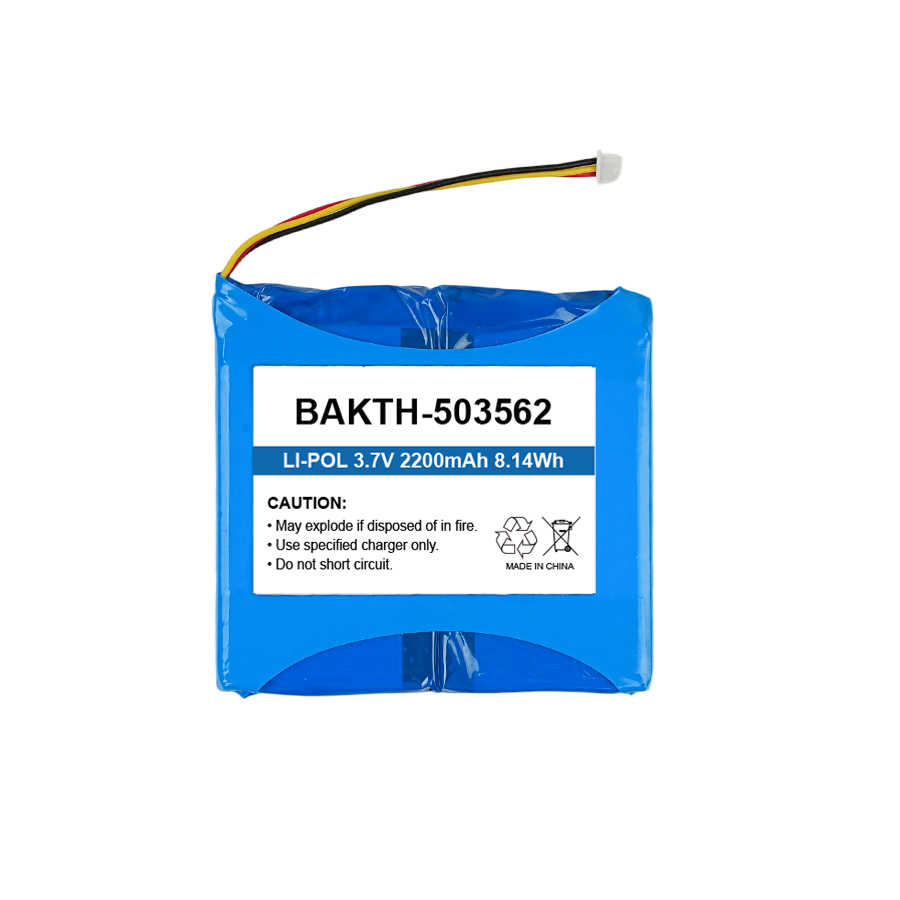

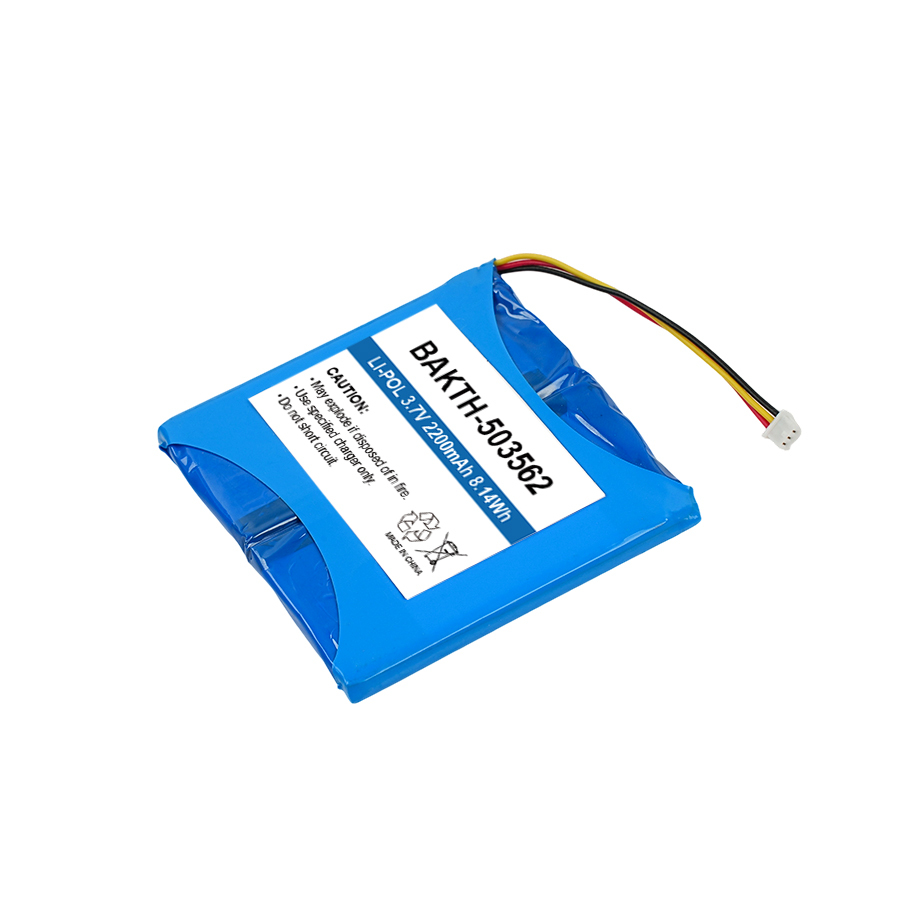

BAKTH-503562, 3.7V, 2200mAh, 8.14Wh
| Place of Origin | China |
|---|---|
| Brand Name | BAKTH |
| Certification | UN38.3 |
| Model Number | BAKTH-503562 |
| Minimum Order Quantity | 2PCS |
| Price | US$5.6 |
| Packaging Details | Carton |
| Delivery Time | 15~20days |
| Payment Terms | T/T |
| Supply Ability | 100000PCS/Month |
Product Details
| Voltage | 3.7V | Cut-off Voltage | 2.75V |
|---|---|---|---|
| Discharging Temp | -20℃~45℃ | Charge Current | 0.5C |
| Chargeable | Yes | Working Temperature | -20℃ ~45℃ |
| Capacity | 2200mAh | Dimension | 65*72*6.0mm |
| Weight | Approx 21g |
Product Description
Product Overview:
3.7V, 2200mAh, 8.14Wh BAKTH-503562 lithium-ion battery pack features a prismatic pouch design, with approximate dimensions of 65*72*6.0 mm, making it ideal for compact, high-efficiency devices such as portable Bluetooth speakers, mini drones, handheld gaming controllers, and professional voice recorders
Description:
| Description | |
| Model NO. | BAKTH-503562 |
| Brand Name | BAKTH / Neutral / OEM |
| Compliant certification standards | UN38.3 / RoHS compliant |
| Discharging temperature | -20℃~45℃ |
| Voltage | 3.7V |
| Cut-off Voltage | 2.75V |
| Cycles Life | 300+ |
| Dimension | 65*72*6.0mm |
| Weight | 21g |
2. Physical & Safety Features
-
Equipped with an integrated Protection Circuit Module (PCM), the battery provides multi-layered safety safeguards:
- Overcharge protection: Cuts off at 2.75V ±0.05V
- Over-discharge protection: Activates below 2.8V
- Short-circuit protection: Responds within <1ms
- Overcurrent limit: Supports up to 1C continuous discharge (2.2A)
- Thermal shutdown: Triggers at 60°C during discharge and 45°C during charge
For optimal performance and longevity, charging should be performed using a dedicated CC/CV (constant current/constant voltage) lithium-ion charger set to 4.2V ±0.05V. The recommended charge current is 0.5C (1.1A) for extended cycle life, with a maximum allowable charge current of 1C (2.2A) for fast charging scenarios. Unlike multi-cell packs, this single-cell design does not require balancing, but consistent voltage regulation remains critical.
3. Charging & Maintenance Guidelines
- Operating temperature: Charge between 0°C and 45°C, discharge between -20°C and 60°C
- Storage conditions: For short-term (<1 month), store at 3.8–4.0V (40–80% charge); for long-term (>1 month), maintain at 3.7V (~50% charge) in a cool, dry environment (15–25°C)
- Periodic maintenance: Recharge every 3 months if unused to prevent deep discharge damage
- Connection type: Features a 2-pin DC solder pad or JST-PH style connector, enabling secure, low-resistance connections ideal for OEM integration in fixed or embedded systems
Usage precautions:
-
- Avoid exposure to water, metal contact, puncture, or physical deformation
- Never disassemble, directly solder to cell terminals, or modify the PCM
- Use only compatible chargers and avoid charging unattended or on flammable surfaces
