Fishlight Use BAKTH-14500-1S-3W 3.7V 800mAh Rechargeable Lithium Ion Batteries With Lead Out Line
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH/OEM/ODM |
| Model Number | BAKTH-14500-1S-3W |
| Minimum Order Quantity | 5 pieces |
| Price | CN¥21.49/pieces 5-499 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Size | 14500 | Battery Type | Solid State |
|---|---|---|---|
| Cycle Life | 500 Cycles | Cathode Materials | LiCoO2 |
| Application | Toys, Power Tools, Home Appliances, Consumer Electronics, Golf Carts | Weight | About 50g, About 50g |
| Operating Temperature(℃) | -20 ~ 60℃ | Type | Li-ion Battery |
| Max Charge Voltage | 4.2V | Discharge Cut Off Voltage | 2.75V |
| Standard Charge Current | 0.2C | Max Charge Current | 1C |
| Charging Mode | CC/CV | Charging Temperature | 0-45℃ |
| Discharging Temperature | -20 ~ 60℃ | Warranty | 12 Months |
| Highlight | 3.7v lithium ion battery pack,800mah lithium ion battery pack |
||
Product Description
Fishlight Use BAKTH-14500-1S-3W 3.7V 800mAh Rechargeable Lithium Ion Batteries With Lead Out Line
Product Specifications
| Attribute | Value |
|---|---|
| Battery Size | 14500 |
| Battery Type | Solid state |
| Cycle Life | 500 cycles |
| Cathode Materials | LiCoO2 |
| Application | Toys, Power Tools, Home Appliances, Consumer Electronics, Golf Carts |
| Weight | about 50g |
| Operating Temperature | -20 ~ 60℃ |
| Type | Li-ion Battery |
| Max charge voltage | 4.2V |
| Discharge cut off voltage | 2.75V |
| Standard charge current | 0.2C |
| Max charge current | 1C |
| Charging mode | CC/CV |
| Charging Temperature | 0-45℃ |
| Discharging Temperature | -20 ~ 60℃ |
| Warranty | 12 months |
Product Features
Electrical Specifications
Nominal capacity: 800mAh
Nominal voltage: 3.7V
Max charge voltage: 4.2V
Discharge cut off voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1C
Performance Characteristics
Charging mode: CC/CV
Internal resistance: ≤210
Cycle life: 300 cycles
Battery type: Li-ion
Rechargeable: Yes
PCB/PCM: yes
Environmental Specifications
Charging Temperature: 0~45℃
Discharging Temperature: -20 ~ 60℃
Storage temperature:
≤1 month: 45~60℃
≤3 months: 25~45℃
≤12 months: -20~25℃
≤60%RH Recharge every 6 months
Humidity Range: 0~85% (non-condensing)
Physical Specifications
Dimension: about 15*53(mm)
Weight: about 13g
Brand: BAKTH / Neutral / OEM
Warranty: 12 Months
Connector: 3P connector

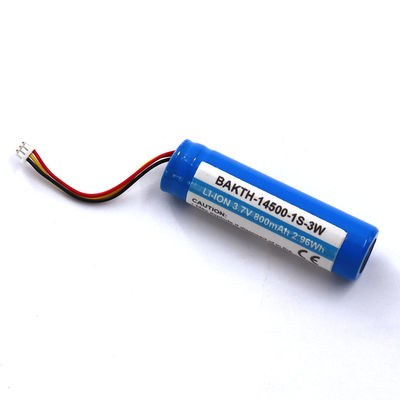

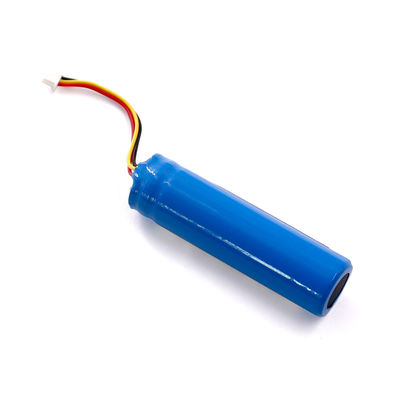

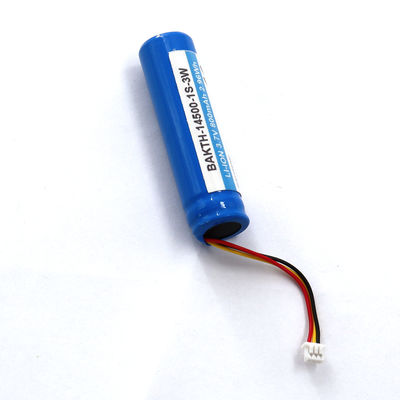

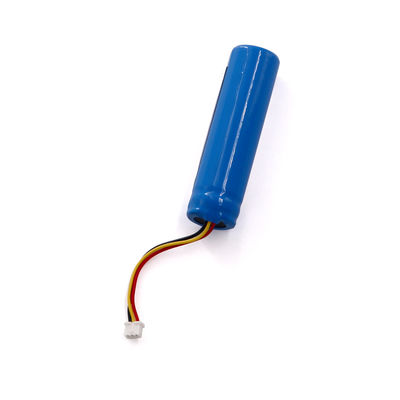

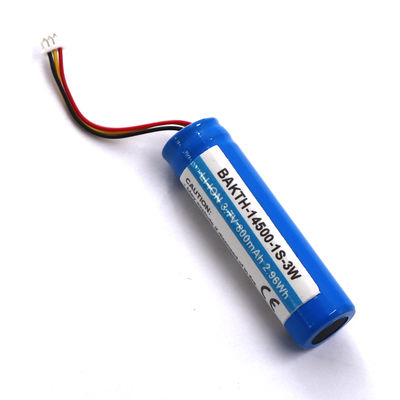

Product Images
