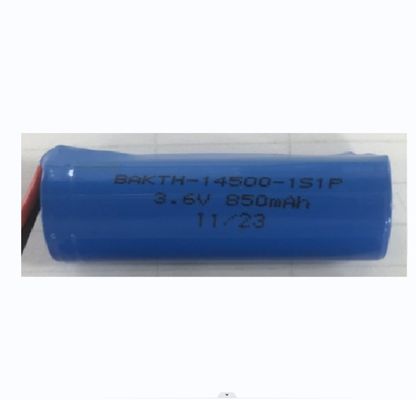

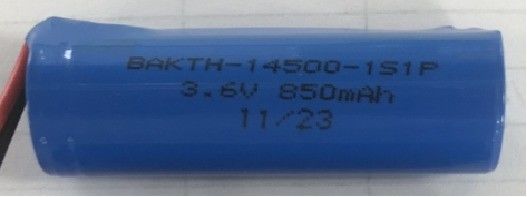

Factory Price OEM High Quality BAKTH-14500-1S1P 3.6V 850mah Lithium Ion Battery Pack Rechargeable Battery Pack
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH/OEM |
| Model Number | BAKTH-14500-1S1P |
| Minimum Order Quantity | 2 pieces |
| Price | CN¥20.19/pieces 2-499 pieces |
Product Details
| Battery Size | 14500 | Application | Toys, Power Tools, Home Appliances, Consumer Electronics, Electric Power Systems |
|---|---|---|---|
| Weight | About 30g | Type | Li-ion |
| Max Charge Voltage | 4.2V | Discharge Cut Off Voltage | 2.75V |
| Standard Charge Current | 0.2C | Max Charge Current | 1C |
| Charging Mode | CC/CV | Charging Temperature | 0-45℃ |
| Discharging Temperature | -20 ~ 60℃ | Warranty | 12 Months |
| Anode Material | LNO | The Charging Ratio | 0.5C |
| The Discharge Rate | 0.5C | Storage Type | Normal Storage |
| Electric Energy | 3.06 Wh | ||
| Highlight | lithium ion battery pack rechargeable,oem lithium ion battery pack |
||
Product Description
Factory Price OEM High Quality BAKTH-14500-1S1P 3.6V 850mAh Lithium Ion Battery Pack
Product Overview
High-quality rechargeable lithium-ion battery pack designed for various applications including toys, power tools, home appliances, and consumer electronics. Manufactured using premium materials with automated production processes for consistent quality.
Technical Specifications
Battery Size:
14500
Nominal Voltage:
3.6V
Capacity:
850mAh
Energy:
3.06 Wh
Weight:
Approx. 30g
Dimensions:
14.2 × 52mm
Anode Material:
LNO
Cycle Life:
300 cycles
Electrical Characteristics
| Max Charge Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.75V |
| Standard Charge Current | 0.2C |
| Max Charge Current | 1C |
| Charging Mode | CC/CV |
| Standard Discharge Current | 0.2C |
| Max Discharge Current | 1C |
| Internal Resistance | ≤210mΩ |
Environmental Specifications
Charging Temperature:
0-45℃
Discharging Temperature:
-20 to 60℃
Humidity Range:
0-85% (non-condensing)
Storage Conditions
≤1 month:
45-60℃
≤3 months:
25-45℃
≤12 months:
-20-25℃
Long-term storage:
Recharge every 6 months at ≤60% RH
Additional Features
Protection Circuit:
Yes (PCB/PCM)
Connector Type:
2P connector
Branding Options:
BAKTH / Neutral / OEM
Warranty:
12 Months
