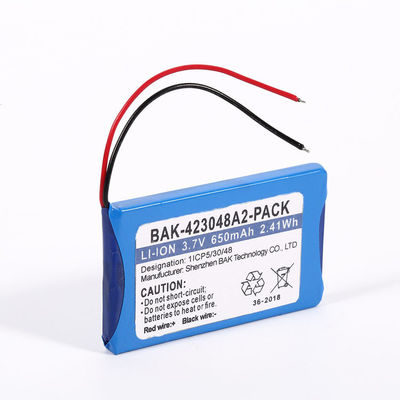

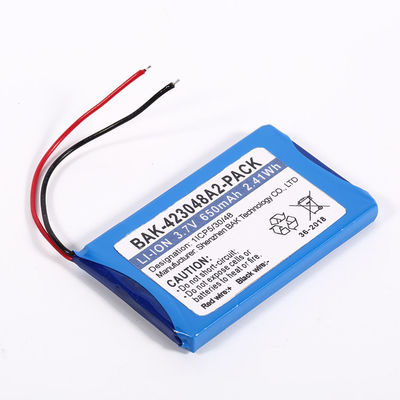

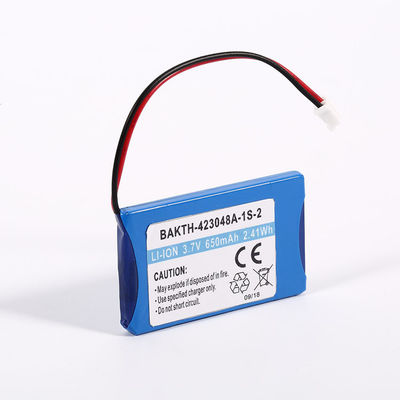

Small Capacity Rechargeable 423048A2 3.7V 650mAh Square Li-Ion Battery Pack for Digital Product

Large Image : Small Capacity Rechargeable 423048A2 3.7V 650mAh Square Li-Ion Battery Pack for Digital Product

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	BAKTH
Model Number:	423048A2

Payment & Shipping Terms:

Minimum Order Quantity:	10000 pieces
Price:	CN¥16.95/pieces 10000-19999 pieces

Contact Now

Detailed Product Description

Battery Size:	423048A2 3.7V 650MAH	Battery Type:	Solid State
Cycle Life:	500 Cycles	Cathode Materials:	LiCoO2
Application:	Consumer Electronics, Toys, Home Appliances	Weight:	About 50g
Operating Temperature(℃):	-20~60℃	Type:	Li-Ion
Size:	70*19.5(mm)	Max Charge Voltage:	4.2V
Discharge Cut Off Voltage:	2.75V	Max Charge Current:	1.5A
Max Dischrge Current:	1.5A	Charging Mode:	CC/CV

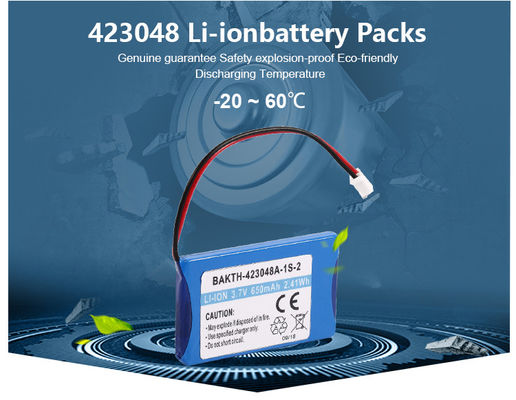

Discharging Temperature:	-20 ~ 60℃	Humidity Range:	0~85% (non-condensing)
Connector:	2P Connector
Highlight:	rechargeable lithium ion battery pack , 3.7v lithium ion battery pack

Product Description

Main product:

Model	Nominal capacity	Nominal voltage	Max discharge current	Cycle life	Dimension	Certificate (Part)	Battery type
N18650CP High energy	3350mAh	3.6V	30A	600cycles	65.0*18 (mm)Max	UN38.3 UL1642 IEC62133	18650 cell
N18650CK High energy	3050mAh	3.6V	2C	500cycles	65.0*18 (mm)Max
N18650CL High energy	3000mAh	3.6V	3C	1000cycles	65.0*18 (mm)Max
N18650CNP stability	2500mAh	3.6V	30A	600cycles	65.0*18 (mm)Max
H18650CIL High rate	2500mAh	3.6V	3C	1000cycles	65.0*18 (mm)Max
H18650CH High rate	2600mAh	3.6V	4C	500cycles	65.0*18 (mm)Max
H18650CC High rate	2150mAh	3.6V	5C	1000cycles	65.0*18 (mm)Max
N21700CB High energy	4800mAh	3.6V	3C	1000cycles	65.0*18 (mm)Max
26650FS2-Fe Stability	3300mAh	3.2V	5C	2000cycles	26*65.5 (mm)Max		LiFEPO4
26650FS3-Fe Stability	3600mAh	3.2V	3C	2000cycles	26*65.5 (mm)Max
26650HP-Fe High rate	2200mAh	3.2V	15C	2000cycles	26*65.5 (mm)Max

Product features	1. production by automatic production line with high quality materials 2. Strictly quality conctrol	Humidity Range	0~85% (non-condensing)
Nominal capacity	650mAh	Dimension	70*19.5(mm)
Nominal voltage	3.6V	Weight	about 100g
Max charge voltage	4.2V	Brand	BAKTH / Neutral / OEM
Discharge cut off voltage	2.75V	Warranty	12 Months
Max charge current	1.5A	PCB/PCM	none
Max dischrge current	1.5A	Connector	2P connector
Charging mode	CC/CV	Battery type	Li-ion
Discharging temperature	-20 ~ 60℃	Rechargeable or not	Yes
Storage temperature	≤1 month: 45~60℃ ≤3 months: 25~45℃ ≤12 months: -20~25℃ ≤60%RH Recharge every 6 months	Sample	available
