3.7V 800mAh LP-573442-1S1P-3 Rechargeable Lithium Polymer Batteries Pack for LED Lights Lithium Ion Batteries
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH/OEM/ODM |
| Model Number | LP-573442-1S1P-3 |
| Minimum Order Quantity | 5 pieces |
| Price | CN¥26.61/pieces 5-499 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Size | 573442 | Application | Toys, Power Tools, Consumer Electronics, SUBMARINES, Electric Bicycles/Scooters |
|---|---|---|---|
| Weight | About 10g | Type | Li-ion |
| Max Charge Voltage | 4.2V | Discharge Cut Off Voltage | 2.75V |
| Standard Charge Current | 0.2C | Max Charge Current | 1C |
| Charging Mode | CC/CV | Charging Temperature | 0-45℃ |
| Discharging Temperature | -20-60℃ | Warranty | 12 Months |
| Anode Material | LCO | The Charging Ratio | 0.5C |
| The Discharge Rate | 1C | Storage Type | 0-45℃ |
| Electric Energy | 2.96 Wh | ||
| Highlight | 3.7v li polymer battery pack,800mah li polymer battery pack |
||
Product Description

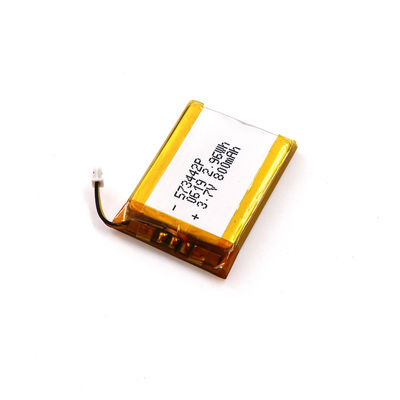

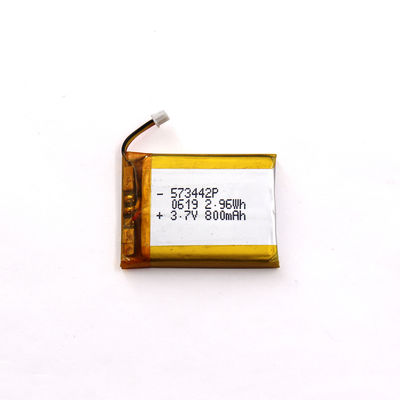

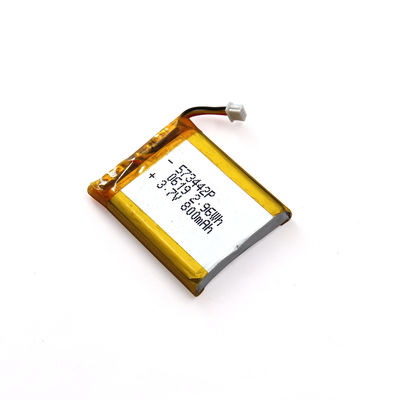

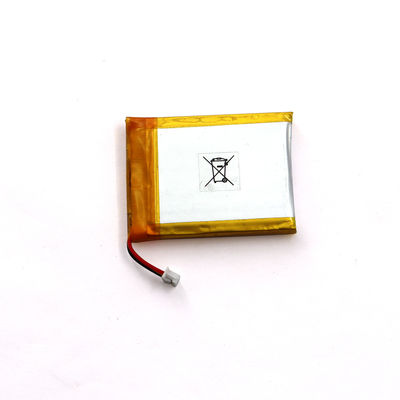

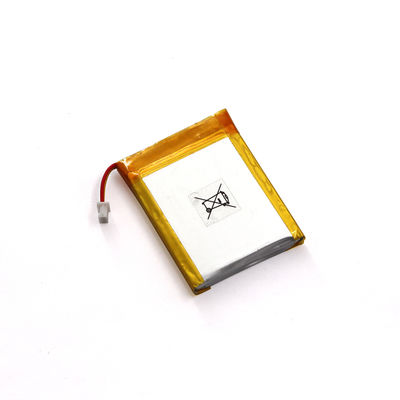

3.7V 800mAh LP-573442-1S1P-3 Rechargeable Lithium Polymer Batteries Pack for LED Lights Lithium Ion Batteries
Product Specifications
| Attribute | Value |
|---|---|
| Battery Size | 573442 |
| Application | Toys, Power Tools, Consumer Electronics, SUBMARINES, Electric Bicycles/Scooters |
| Weight | about 10g |
| Type | Li-ion |
| Max charge voltage | 4.2V |
| Discharge cut off voltage | 2.75V |
| Standard charge current | 0.2C |
| Max charge current | 1C |
| Charging mode | CC/CV |
| Charging Temperature | 0-45℃ |
| Discharging Temperature | -20-60℃ |
| Warranty | 12 Months |
| Anode Material | LCO |
| The charging ratio | 0.5C |
| The discharge rate | 1C |
| Storage Type | 0-45℃ |
| Electric Energy | 2.96 Wh |
Product Features
Production
Automatic production line with high quality materials
Nominal capacity
800mAh
Nominal voltage
3.7V
Max charge voltage
4.2V
Discharge cut off voltage
2.75V
Standard charge current
0.2C
Max charge current
1C
Standard discharge current
0.2C
Max discharge current
1C
Charging mode
CC/CV
Internal resistance
≤210
Cycle life
300 cycles
Charging Temperature
0~45℃
Discharging Temperature
-20 ~ 60℃
Storage temperature
≤1 month: 45~60℃
≤3 months: 25~45℃
≤12 months: -20~25℃
≤60%RH Recharge every 6 months
≤3 months: 25~45℃
≤12 months: -20~25℃
≤60%RH Recharge every 6 months
Humidity Range
0~85% (non-condensing)
Dimension
about 6.2*34.5*45(mm)
Weight
about 10g
Brand
BAKTH / Neutral / OEM
Warranty
12 Months
PCB/PCM
yes
Connector
3P connector
Battery type
Li-pol
Rechargeable or not
Yes
