922543 3.7V Li Polymer Battery Pack 1050mAh for Electric Appliance
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH |
| Model Number | 922543P |
| Minimum Order Quantity | 5 pieces |
| Price | CN¥28.84/pieces 5-499 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Size | 922543, 922543 | Battery Type | Solid State |
|---|---|---|---|
| Cycle Life | 300 Cycles | Cathode Materials | LiCoO2 |
| Application | Consumer Electronics, Toys | Weight | About 20g |
| Operating Temperature(℃) | 0-45℃ | Type | Li-pol |
| Standard Charge Current | 0.2C | Max Charge Current | 1C |
| Charging Mode | CC/CV | Charging Temperature | 0-45℃ |
| Discharging Temperature | -20-60℃ | Warranty | 12 Months |
| Anode Material | LCO | The Charging Ratio | 0.5C |
| Highlight | 1050mAh Li Polymer Battery Pack,1050mAh rechargeable li ion polymer,3.7V rechargeable li ion polymer |
||
Product Description
922543 3.7V Li Polymer Battery Pack 1050mAh for Electric Appliance
High-quality rechargeable lithium polymer battery pack designed for consumer electronics and toys. Features solid-state construction with 300 cycle life and comprehensive temperature tolerance.
Technical Specifications
| Attribute | Value |
|---|---|
| Battery Size | 922543 |
| Battery Type | Solid state (Li-pol) |
| Cycle Life | 300 cycles |
| Cathode Materials | LiCoO2 (LCO) |
| Weight | Approximately 20g |
| Operating Temperature | 0-45℃ (charging), -20-60℃ (discharging) |
| Warranty | 12 months |
Performance Characteristics
Electrical Parameters
Nominal voltage: 3.7V
Max charge voltage: 4.2V
Discharge cutoff: 2.75V
Capacity
Nominal capacity: 1050mAh
Standard charge current: 0.2C
Max charge current: 1C
Environmental
Humidity range: 0-85% (non-condensing)
Internal resistance: ≤210
Charging mode: CC/CV
Physical Dimensions
Size: 9.5×27×44mm
Connector: 3P connector
Includes PCB/PCM protection
Storage Conditions
- ≤1 month: 45-60℃
- ≤3 months: 25-45℃
- ≤12 months: -20-25℃
- ≤60%RH - Recharge every 6 months

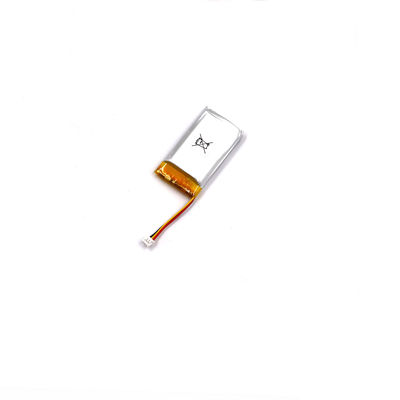

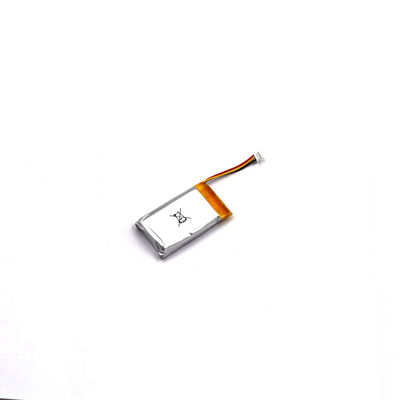

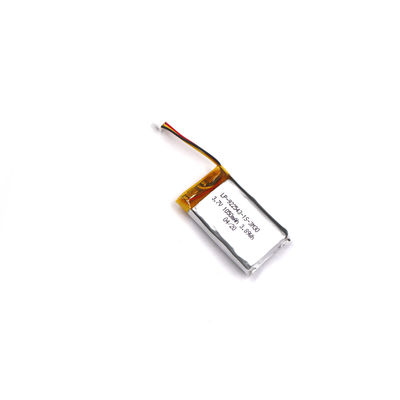

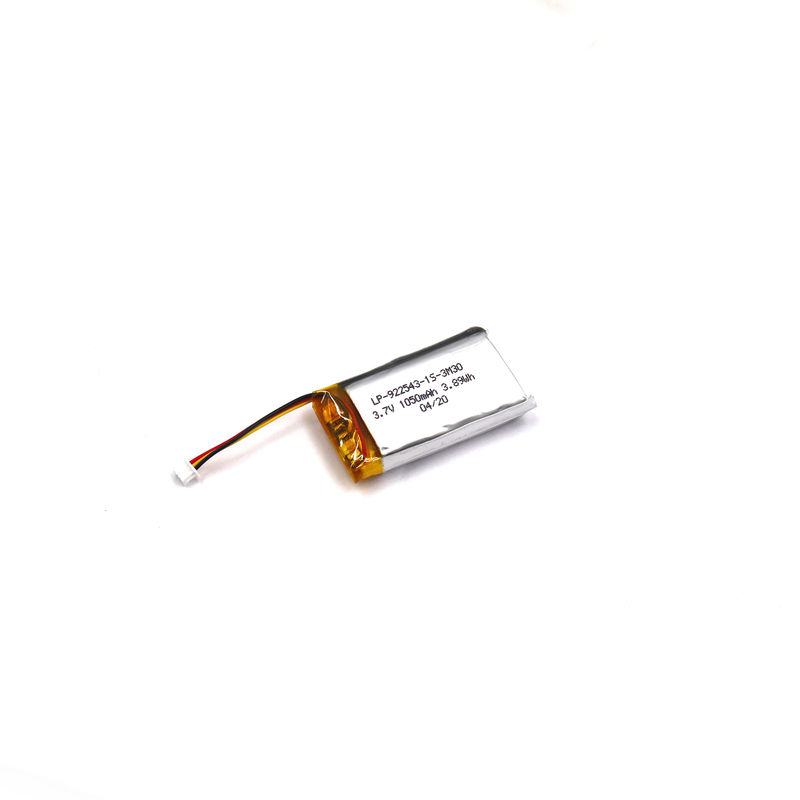

Product Images
