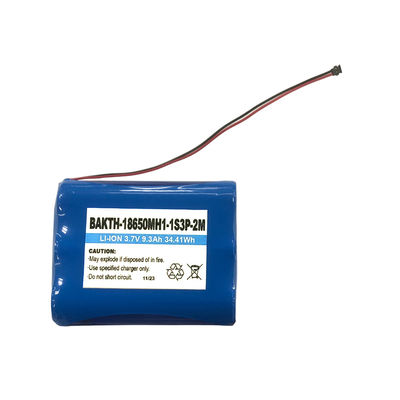

Consumer Electronics Use BAKTH-18650MH1-1S3P-2M 3.7V 9300mAh Rechargeable Lithium Ion Battery Pack
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH |
| Model Number | BAKTH-18650MH1-1S3P-2M 3.7V 9300mAh |
| Minimum Order Quantity | 2 pieces |
| Price | CN¥77.15/pieces 2-99 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Load Quantity(cells) | 3 | Battery Type | Solid State |
|---|---|---|---|
| Cycle Life | 500 Cycles | Dimension (L*W*H) | About 18.5*65.5*54(mm) |
| Application | Power Tools, Consumer Electronics, Toys, Home Appliances | Weight | About 150g |
| Operating Temperature(℃) | -20 ~ 60℃ | Cathode Materials | LiCoO2 |
| Type | Li-Ion | Max Charge Voltage | 4.2V |
| Discharge Cut Off Voltage | 2.75V | Standard Charge Current | 0.2C |
| Max Charge Current | 1C | Charging Mode | CC/CV |
| Charging Temperature | 0~45℃ | Discharging Temperature | -20 ~ 60℃ |
| Warranty | 12 Months | Anode Material | LCO |
| Highlight | rechargeable lithium ion battery pack,3.7v lithium ion battery pack |
||
Product Description
Consumer Electronics Use BAKTH-18650MH1-1S3P-2M 3.7V 9300mAh Rechargeable Lithium Ion Battery Pack
Product Specifications
| Attribute | Value |
|---|---|
| Max Load Quantity (cells) | 3 |
| Battery Type | Solid state |
| Cycle Life | 500 cycles |
| Dimension (L*W*H) | about 18.5*65.5*54(mm) |
| Application | Power Tools, Consumer Electronics, Toys, Home Appliances |
| Weight | about 150g |
| Operating Temperature | -20 ~ 60℃ |
| Cathode Materials | LiCoO2 |
| Type | Li-Ion |
| Max charge voltage | 4.2V |
| Discharge cut off voltage | 2.75V |
| Standard charge current | 0.2C |
| Max charge current | 1C |
| Charging mode | CC/CV |
| Charging Temperature | 0~45℃ |
| Discharging Temperature | -20 ~ 60℃ |
| Warranty | 12 Months |
| Anode Material | LCO |
Detailed Features
Nominal capacity
9300mAh
Nominal voltage
3.7V
Max charge voltage
4.2V
Discharge cut off voltage
2.75V
Standard charge current
0.2C
Max charge current
1C
Standard discharge current
0.2C
Max discharge current
1C
Charging mode
CC/CV
Internal resistance
≤210
Cycle life
300 cycles
Brand
BAKTH / Neutral / OEM
PCB/PCM
yes
Connector
2P connector
Battery type
Li-ion
Rechargeable
Yes
Temperature Specifications
Charging Temperature: 0~45℃
Discharging Temperature: -20 ~ 60℃
Storage temperature:
- ≤1 month: 45~60℃
- ≤3 months: 25~45℃
- ≤12 months: -20~25℃
Note: For long-term storage (≤12 months), recharge every 6 months at ≤60%RH
