Customized Rechargeable Lithium Ion Battery Pack 523450AR 3.7V 2400mAh for Electric Consumer Appliance

All Products

Lithium Ion Battery Pack
(156)

Li Polymer Battery Pack
(66)

Lifepo4 Battery Pack
(51)

Deep Cycle Battery
(8)

BMS PCB PCM
(6)

Customized Battery Pack
(6)

E Bike Battery Pack
(13)

UPS Lithium Batteries
(1)

Nickel Metal Hydride Battery Pack
(14)

Rechargeable Li Ion Battery
(61)

Certification

I'm going to keep this sweet & short! I have never experienced such excellent customer service with a out of country supplier. This company has gone far and beyond to meet the needs of their customers. Their response time with all my concerns were addressed immediately 100%within 1-24 hours and the shipping time was EXCELLENT!

—— Kallista

I'm Online Chat Now

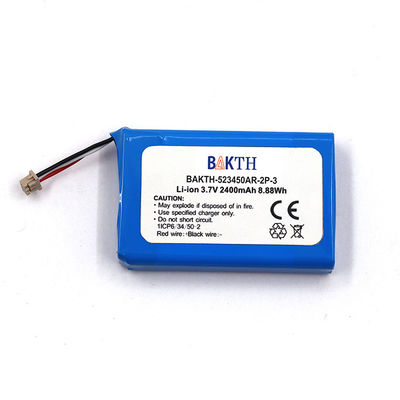

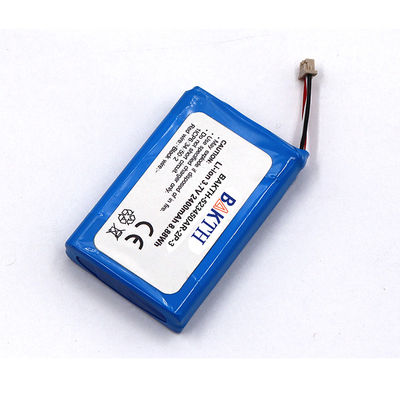

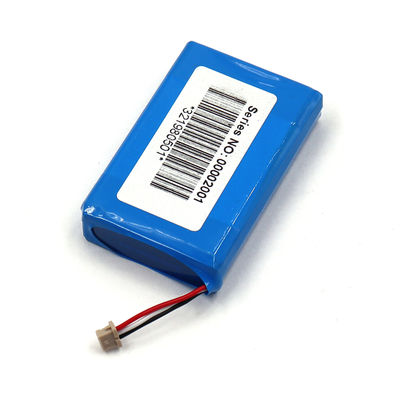

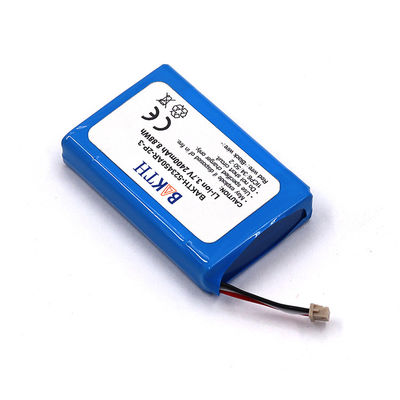

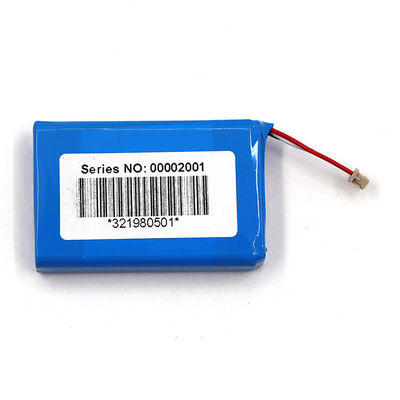

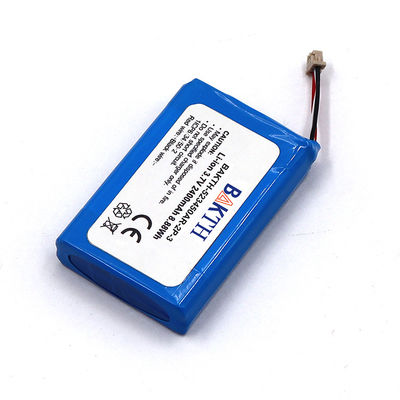

Customized Rechargeable Lithium Ion Battery Pack 523450AR 3.7V 2400mAh for Electric Consumer Appliance

Large Image : Customized Rechargeable Lithium Ion Battery Pack 523450AR 3.7V 2400mAh for Electric Consumer Appliance

Product Details:

Place of Origin:	GUA
Brand Name:	BAKTH/OEM
Model Number:	523450AR-2P-3

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	CN¥44.35/pieces 100-499 pieces
Packaging Details:	meet IATA
Supply Ability:	180000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Application:	Consumer Electronics	Weight:	48g
Voltage:	3.7V	Capacity:	2400mAh
Type:	Li-ion	Charging Mode:	CC/CV
OEM/ODM:	Warmly Welcomed Battery Pack Customized	Apllication:	Portable Electrical Products
Temperature:	-10℃~45℃	Brand:	BAKTH/OEM
Max Discharge Current:	1C	Cycle Life:	300 Times
Anode Material:	LCO	Battery Size:	523450AR
The Charging Ratio:	0.2C	The Discharge Rate:	0.5C
Storage Type:	Normal Storage
Highlight:	rechargeable lithium ion battery pack , lithium ion battery pack 523450ar

Products Description

Product features	production by automatic production line with high quality materials	Charging Temperature	0~45℃
Nominal capacity	2400mAh (0.2C)	Discharging Temperature	-20 ~ 60℃
Nominal voltage	3.7V	Storage temperature	≤1 month: -20~60℃ ≤3 months: -20~45℃ ≤12 months: -20~25℃ ≤60%RH Recharge every 6 months
Max charge voltage	4.2±0.05V (cut off charging current 34mA)	Humidity Range	0~85% (non-condensing)
Discharge cut off voltage	2.75±0.05V	Product Model	523450AR-2P-3
Standard charge current	0.2C	Weight	approx48g
Standard dischrge current	0.2C	Warranty	12 Months
Charging mode	CC/CV	Connector
Cycle life	300 cycles (≥80%)	Rechargeable or not	Yes
Max dischrge current	1C	PCB/PCM	yes

The battery pack can be customized according to customer requirements, please contact the store customer service.

Our Service >>>"Customized" battery voltage,capacity size and case. >>>"Customized" connect plug and socket, Cable, waterproof. >>>“Customized" special battery packs for any applications >>>“Customized"BMS charging and discharging current,balancefunction with communication protocol,etc. Advantages High energy density - potential for yet higher capacities. Does not need prolonged priming when new. One regular charge is all that's needed. Relatively low self-discharge - self-discharge is less than half that of nickel-based batteries. Low Maintenance - no periodic discharge is needed; there is no memory. Specialty cells can provide very high current to applications such as power tools. Safety Passed the below safety tests (Drop shock,Impact,Squeeze,Soak,Bonfire,over-charge,over-discharge). No leakage, no venting, no disassembly, no rupture and no fire with stable chemical structure.

Certifications

Why choose us?

1.There is a risk of safety accidents using unqualified battery, so, adapting qualified battery cells, full function PCB/BMS and with strict QC procedure are key elements of a qualified battery, and these elements are our essential requirements in designing and producing batteries.

2.Strict control for cleanliness in dust-free workshop from IQC,IPQC to OQC, we control every step strictly CE, UL, SGS, FCC, ROHS and ISO9001: 2000 certified.

Company Profile

Founded in 2002,Shenzhen BAK Technology Co.,Ltd is a high tech Enterprise, which is mainlyengaged in designing, developing, manufacturing and marketing Lithium batteries with well-equipped testing facilities and strong technical force. with a wide range, good quality, reasonable prices and timely service, our products are extensivelyused in a variety of electronic devices.We follow ISO 9001:2008 and ISO14001:2004 certified ma-nagement systems for further performance assurance.
