Product Overview

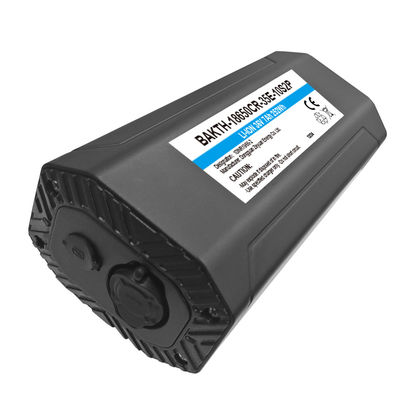

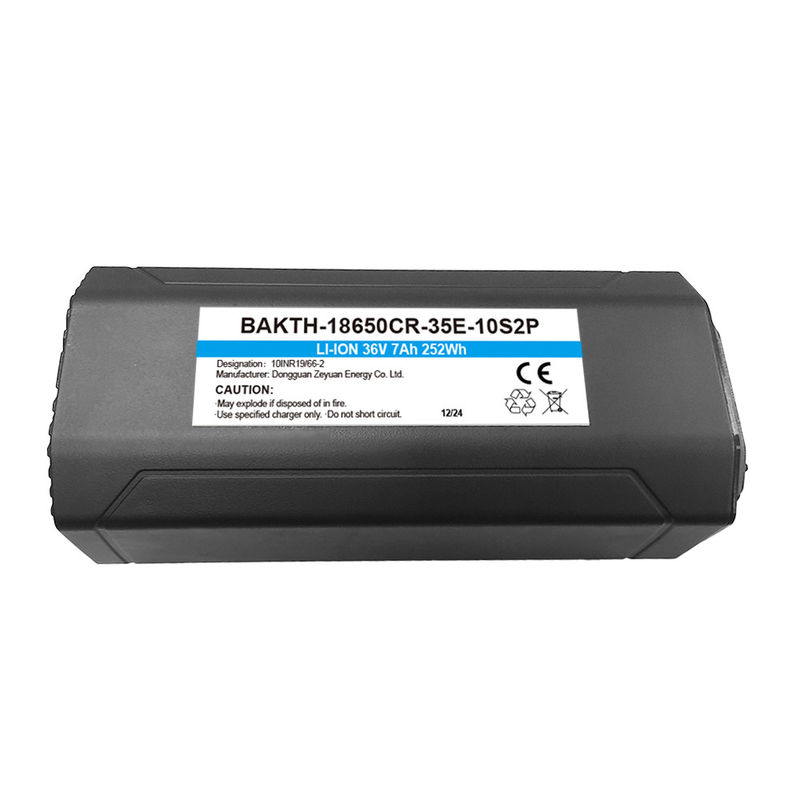

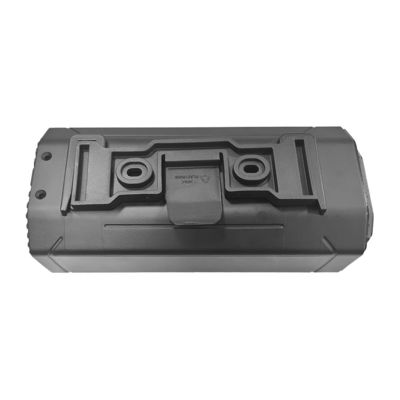

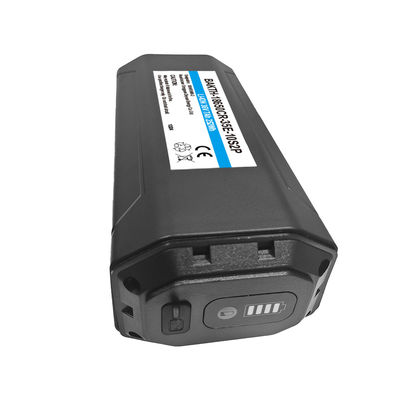

The 18650 10S2P 36V 7Ah Lithium ion Battery Pack features high energy density 18650 cells to deliver stable power output, making it ideal for electric bicycles, e-scooters, electric motorcycles, and portable energy storage systems. The intelligent BMS protection system ensures high safety standards with overcharge, over-discharge, and short-circuit protection. With a long cycle life of over 800 cycles, this battery helps you travel farther and ride safer!
Specification
| Battery Type |
Lithium-ion (Li-ion) |
| Cell Model |
18650CR-35E |
| Configuration |
10S2P |
| Nominal Voltage |
36V |
| Nominal Capacity |
7Ah |
| Energy |
252Wh |
| Charge Voltage |
42V |
| Discharge Cut-off Voltage |
25V |
| Max Discharge Current |
10A |
| Cycle Life |
≥800 Cycles |
| Operating Temperature |
-20°C to 60°C |
| Dimensions |
Approx. 196*87*72.8 mm |
| Weight |
Approx. 1450g |
| BMS Protection |
Overcharge, Over-discharge, Short Circuit, Temperature Protection |
| Certification |
CB, UN38.3, MSDS |
Production & Quality Control
Strict Production & QC Standards – We follow internationally standardized production processes to ensure that each battery undergoes rigorous quality control from raw materials to finished products, guaranteeing consistency, reliability, and optimized production efficiency with minimal defects.
Fully Automated Production Line – Utilizing advanced automated manufacturing equipment, we enhance production efficiency, reduce human errors, and ensure stability, consistency, and high-quality cells, meeting large-scale order demands.
5-Step Quality Inspection – Every battery pack undergoes a rigorous five-step quality inspection, including voltage calibration, capacity testing, charge-discharge cycling, aging tests, and final product inspection, ensuring stable performance, safety, and compliance with international standards.
100% Safety Testing – Each battery undergoes 100% full-scale safety testing before shipment, covering short-circuit protection, overcharge and over-discharge protection, temperature control, and other critical safety measures to ensure compliance with the highest safety standards.
Competitive Advantages
Why Choose Our Battery?
Premium Materials – Uses internationally recognized 18650 / 21700 lithium cells, ensuring high energy density, low internal resistance, and long lifespan, combined with high-conductivity nickel strips and an intelligent BMS for stable and reliable performance.
Factory Direct Sales – Directly from our factory with no middleman markup, offering competitive pricing. With a production capacity of over 5000 battery packs per month, we ensure stable supply and strict quality control throughout material selection, manufacturing, and delivery.
Worldwide Shipping – Supports DHL, FedEx, and UPS express shipping for 5-10 day global delivery, with additional options for air freight, sea freight, and local warehouse shipping. All batteries are UN38.3 and MSDS certified for safe transport and seamless customs clearance.
Customization Available – Customizable voltage and capacity options (e.g., 24V / 36V / 48V / 60V), BMS protection features (e.g., Bluetooth monitoring, balance management, over-temperature protection), and various casing and connector choices (e.g., XT60 / Anderson / custom terminals) to suit different applications.
Supply & Packaging
Supply Ability: 5000 Units Per Month (Bulk orders available upon request)
Packaging: Standard Export Packaging with Protective Foam & Carton Box
Shipping Options: Air, Sea, and Express Delivery Available
For bulk orders or custom requirements, feel free to contact us!
FAQs
Q1: What types of electric vehicles can this 36V 7Ah battery be used for?
A1: This battery is compatible with most 36V-rated electric bicycles, scooters, and light electric vehicles.
Q2: How long is the cycle life of this battery?
A2: The cycle life exceeds 800 cycles at 80% Depth of Discharge (DOD).
Q3: Can I customize the voltage and capacity?
A3: Yes, we offer OEM & ODM services to customize different voltages (24V, 48V) and capacities (10Ah, 15Ah).
Q4: How should this battery be stored properly?
A4: Store in a dry environment at 5°C - 25°C, avoiding high temperatures and humidity to prolong battery life.
