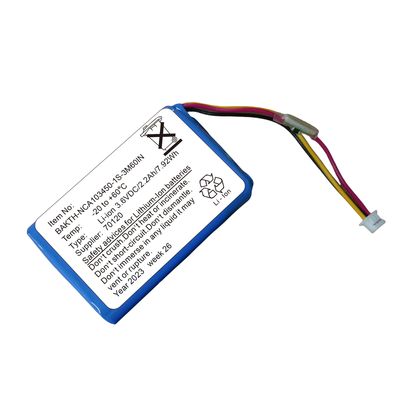

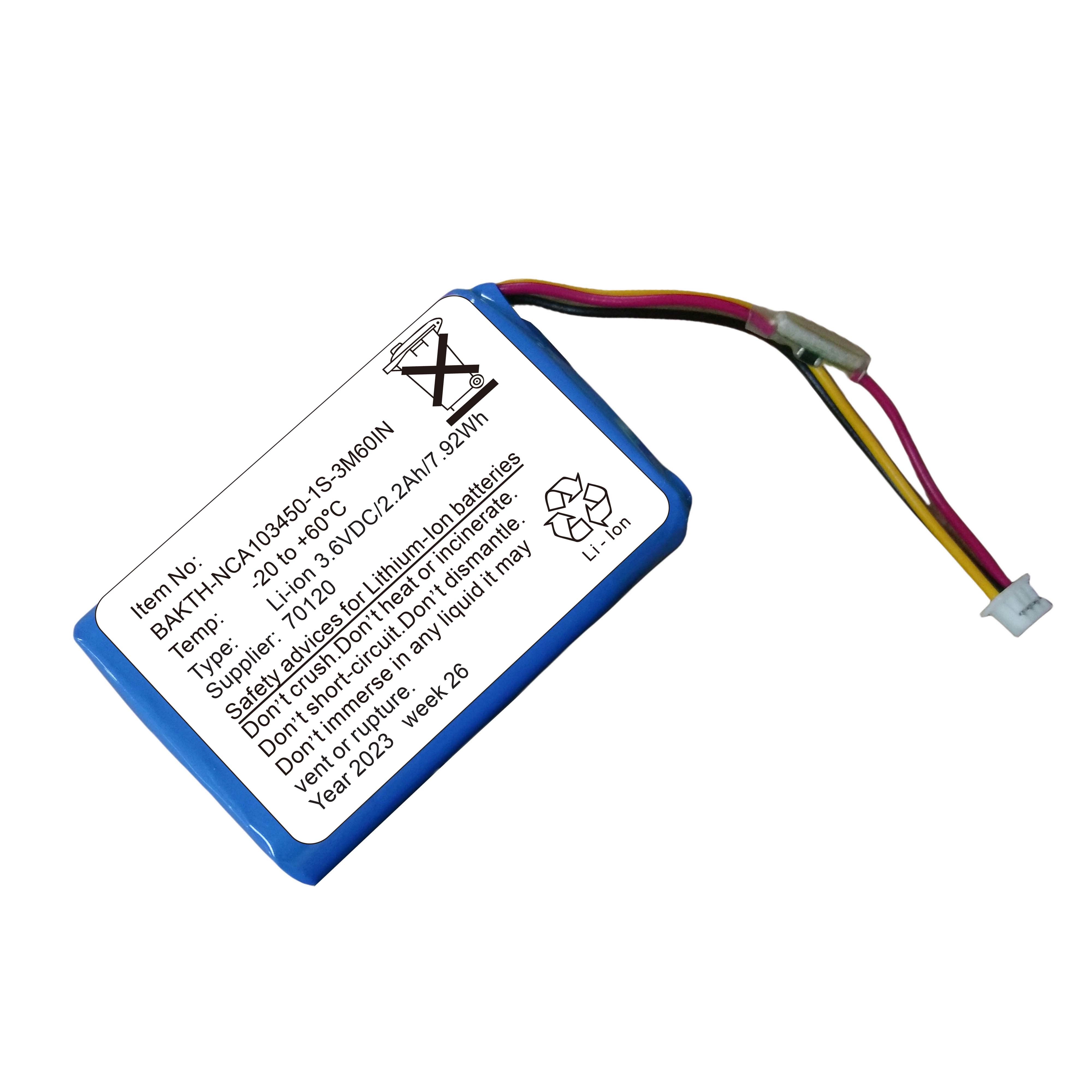

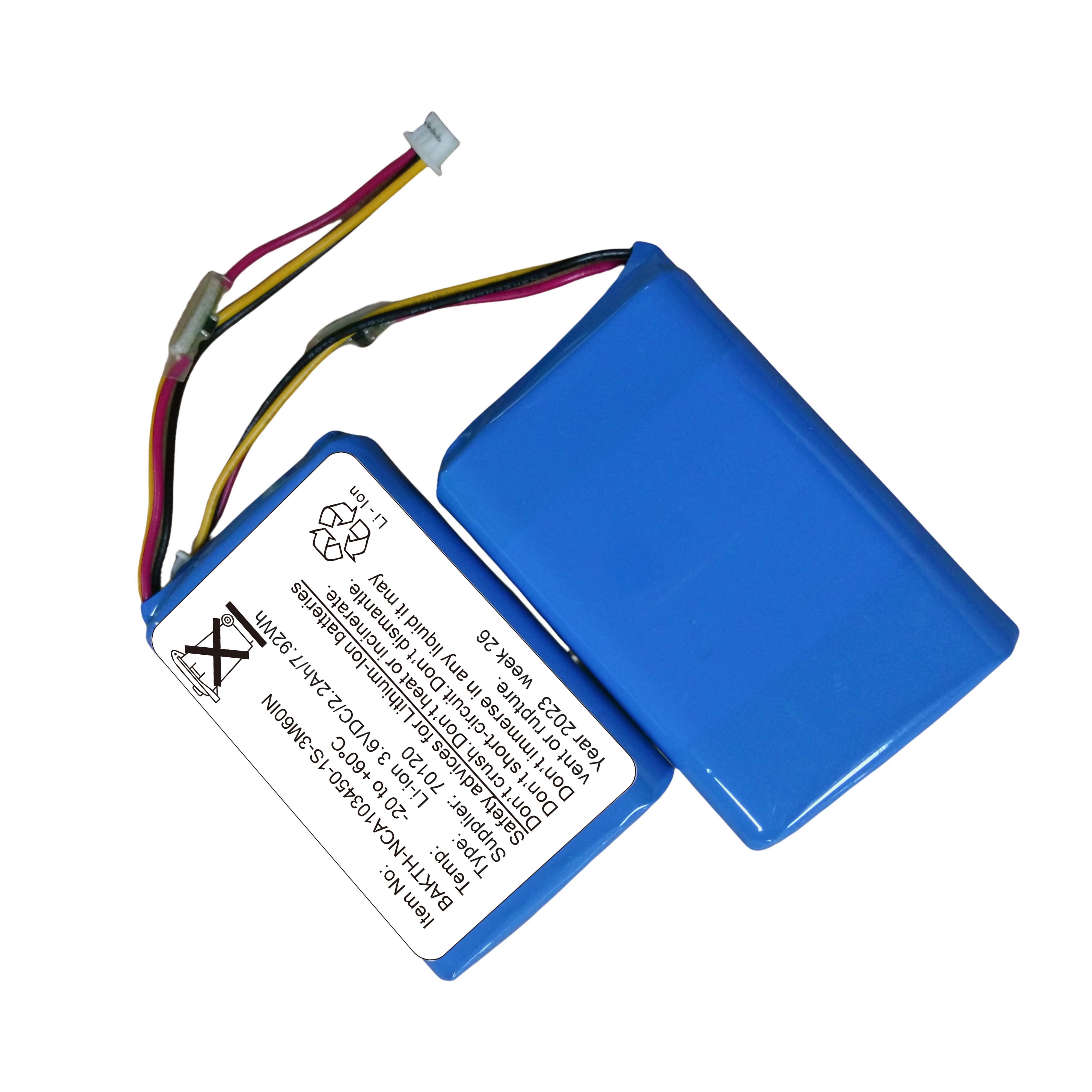

3.6V 2200mAh Rechargeable Li-ion Battery Long-Lasting Lithium Battery Pack

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Capacity	2200mAh	Internal Impedance	≤280mΩ
Max. Discharge Current	1.8A	Voltage	3.6V
Max. Charge Current	0.5C	Dimensions	5334.511mm
Storage Type	-20~45℃
Highlight	3.6V 2200mAh rechargeable lithium battery , long-lasting Li-ion battery pack , high-capacity lithium ion battery

Leave a Message

Product Description

No.	Items	Specification
1	Normal Voltage	3.6V
2	Nominal Capacity	2200mAh	Standard charge & discharge
3	Minimum Capacity
4	Max Charge Voltage	4.2V ( Standard Charging Method CC/CV)
5	Discharge cut-off voltage	2.8V (limited by PCB)
6	Standard Charge	0.2C / CC charge to 4.2V, then CV to 0.02C cut off)	25±2℃
7	Standard Discharge	0.2C (CC Discharge to 2.8V / ) (limited by PCB)	25±2℃
8	Max. Charge Current	0.2C(stand charge) 0.5C Max (rapid charge)	10-45 ℃
9	Max. Discharge Current	1.8A	25±2℃
10	Humidity range	80% RH (non-condensing )
11	Impedance	≤280mΩ (AC Impedance, 1000 Hz)
12	Battery Weight	Approx:40g
13	Battery Dimension	L:53mm Max W:34.5mm Max T:11mm Max
14	As of shipment Voltage	3.48-3.55V (or according to customer’s required)
