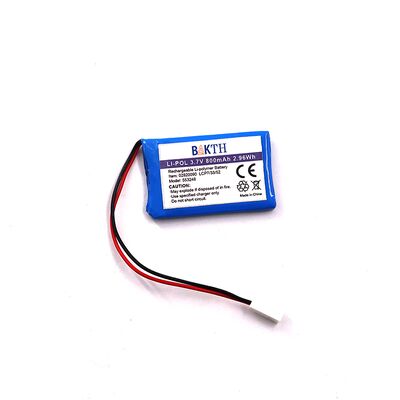

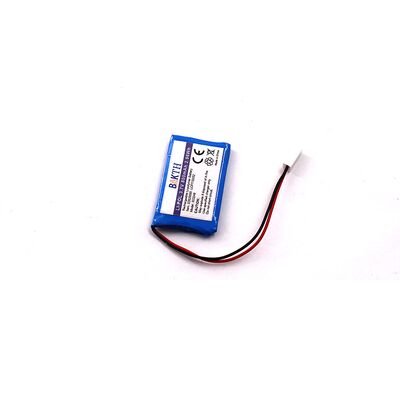

Lithium Ion Polymer Battery Pack LP-553248-1S-2M For Consumer And Medical Devices
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH/OEM/ODM |
| Model Number | LP-553248-1S-2M |
| Minimum Order Quantity | 5 pieces |
| Price | USD6-10 |
Product Details
Product Description
The BAK Technologies LP-553248-1S-2M 3.7 V 800 mAh 2.96 Wh Lithium ion polymer battery pack stands as a testament to modern battery innovation. The batteries have specific dimensions of 5.8 mm by 34 mm by 51 mm. These batteries are typically rectangular, making them ideal for space-efficient designs. They are widely used in portable consumer and medical devices. Their shape and size offer a balance of power and compactness.
Key Specifications
Nominal Capacity
800mAh
Nominal Voltage
3.7V
Battery Size
5.8*34*51
Weight
Approx. 15g
Cycle Life
300 cycles
Warranty
12 months
Technical Specifications
| Attribute | Value |
|---|---|
| Max Charge Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.75V |
| Standard Charge Current | 0.2C |
| Max Charge Current | 1C |
| Charging Mode | CC/CV |
| Internal Resistance | ≤210 |
| Anode Material | LCO |
| Electric Energy | 2.96 Wh |
Environmental Specifications
| Parameter | Range |
|---|---|
| Charging Temperature | 0-45℃ |
| Discharging Temperature | -20-60℃ |
| Storage Temperature | 0-45℃ |
| Humidity Range | 0-85% (non-condensing) |
Applications
Toys
Power Tools
Consumer Electronics
Electric Vehicles
Product Features
- High-quality materials used in automated production line
- Rechargeable lithium-ion battery with 300 cycle life
- Includes PCB/PCM protection
- With standard connector
- Available in BAKTH brand, neutral, or OEM options
