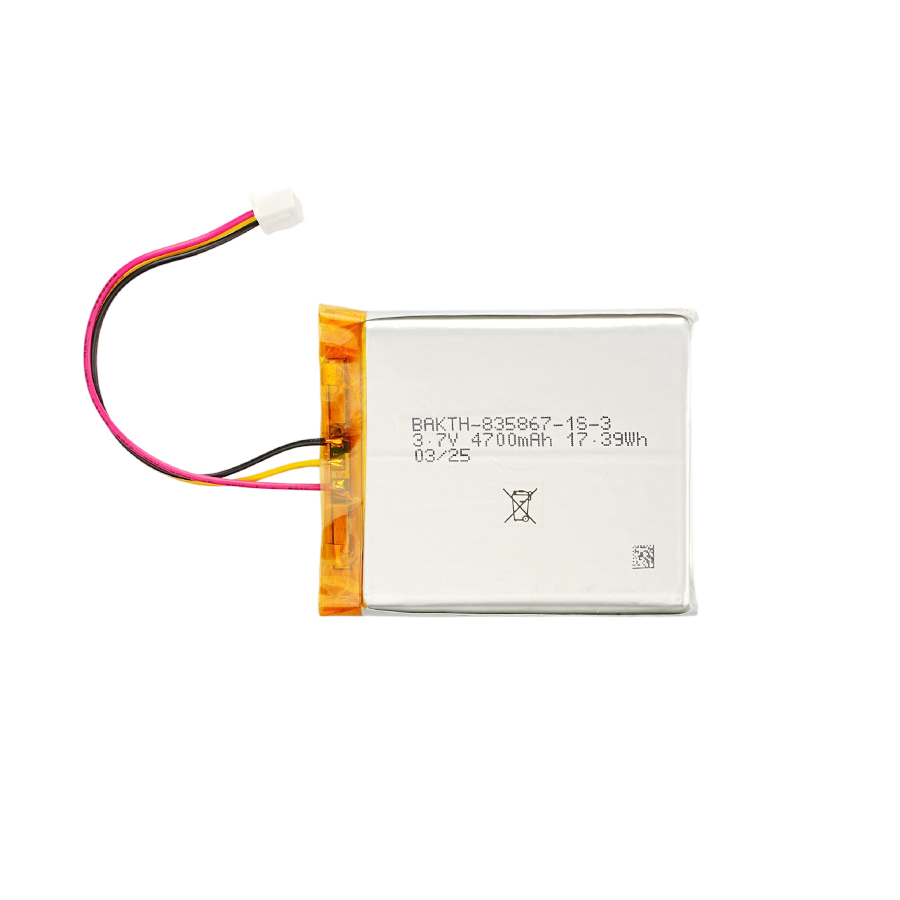

BAKTH-835867-1S-3, 3.7V, 4700mAh, 17.39Wh
| Place of Origin | China |
|---|---|
| Brand Name | BAKTH |
| Certification | UN38.3 |
| Model Number | BAKTH-835867-1S-3 |
| Minimum Order Quantity | 2PCS |
| Price | US$3.89 |
| Packaging Details | Carton |
| Delivery Time | 15~20days |
| Payment Terms | T/T |
| Supply Ability | 100000PCS/Month |
Product Details
| Voltage | 3.7V | Cut-off Voltage | 2.8V |
|---|---|---|---|
| Discharging Temp | 0℃~45℃ | Charge Current | 0.5C |
| Chargeable | Yes | Working Temperature | 0℃ ~45℃ |
| Capacity | 4700mAh | ||
| Highlight | 3.7V Li Polymer battery pack,4700mAh Li Polymer battery,17.39Wh rechargeable battery pack |
||
Product Description
Product Overview:
This is a single lithium-ion cell configuration with a nominal voltage of 3.7V and a high capacity of 4700mAh. The 1S design simplifies device power management, eliminating the need for cell balancing circuitry. The cell chemistry is optimized for high energy density and long cycle life, typically supporting over 800 charge cycles while retaining above 80% of its original capacity under standard use conditions.
Description:
| Model No. | BAKTH-835867-1S-3 |
| Brand Name | BAKTH / Neutral / OEM |
| Compliant certification standards | IEC62133 / UN38.3 / RoHS |
| Discharging temperature | 0~45℃ |
| Electrical Performance | |
| Nominal Voltage | 3.7 V |
| Nominal Capacity | 4700 mAh |
| Power Capacity | 17.39 Wh |
| Max. charging voltage | 4.2 V |
| Cut-off voltage | 2.8 V |
-
Charging & Maintenance Guidelines
Recommended Charging Method: Use a dedicated single-cell (1S) Constant Current/Constant Voltage (CC/CV) lithium-ion charger set to 4.2V ±0.05V.
-
Optimal Charge Current: 0.5C = 2.35A. This rate balances charging speed with maximizing long-term cycle life.
-
Maximum Charge Current: 1C = 4.7A. Suitable for fast charging scenarios, though consistent use at this rate may moderately reduce total cycle count.
-
Balancing Not Required: As a single-cell pack, external balancing is unnecessary. However, using a quality charger with precise voltage regulation is critical.
-
-
Operating Environment:
- Charge temperature: 0°C to 45°C
- Discharge temperature: -20°C to 60°C
- Avoid: Exposure to water, metal contact, crushing, or direct sunlight
Safety Warnings:
- ❌ Never disassemble, puncture, or modify the pack
- ❌ Never charge with non-balanced or NiMH/lead-acid chargers
- ❌ Never expose to temperatures >65°C or < -30°C
- ✅ Always use original or certified replacement chargers
- ✅ Store away from flammable materials and metal objects
Applications & Compliance
- Target Devices: Industrial handheld terminals, portable X-ray units, battery-powered drones, field service tools, smart inventory scanners
- Certifications: UN38.3, CE, RoHS, IEC 62133-2, UL 2054
- Transport Compliance: Meets IATA Section II for air shipment (under 100Wh limit — 45.6Wh is well within)
