Custom Golf Carts Use Li Ion Battery Packs High Power BAKTH-18650-5S5P-3DC 18V 13Ah Rechargeable Lithium Battery Pack
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH |
| Model Number | BAKTH-18650-5S5P-3DC |
| Minimum Order Quantity | 100 pieces |
| Price | CN¥447.01/pieces 100-999 pieces |
Product Details
| Max Load Quantity(cells) | 25 | Battery Type | Solid State |
|---|---|---|---|
| Cycle Life | 500 Cycles | Dimension (L*W*H) | 110*107*70(mm) |
| Application | Electric Wheelchairs, Golf Carts, Electric Vehicles, Home Appliances | Weight | About 1.25Kg, About 1.25Kg |
| Operating Temperature(℃) | -20~60℃ | Cathode Materials | LiCoO2 |
| Type | Li-Ion | Size | 110*107*70(mm) |
| Max Charge Voltage | 21V | Discharge Cut Off Voltage | 13.75V |
| Max Charge Current | 3A | Max Dischrge Current | 3A |
| Charging Mode | CC/CV | Discharging Temperature | -20 ~ 60℃ |
| Connector | 3 DC | ||
| Highlight | 18650 lithium ion battery pack,18v lithium ion battery pack |
||
Product Description

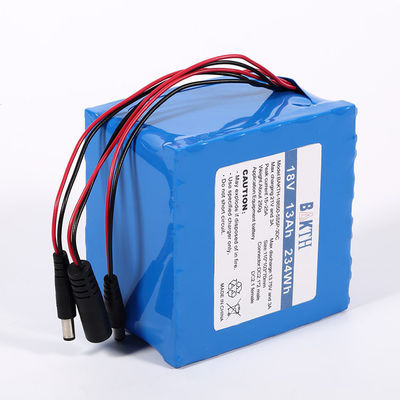

Custom Golf Carts Li-Ion Battery Pack - BAKTH-18650-5S5P-3DC 18V 13Ah
Key Specifications
Nominal Voltage
18V
Capacity
13Ah
Cycle Life
500 cycles
Dimensions
110×107×70(mm)
Weight
Approx. 1.25Kg
Operating Temperature
-20°C to 60°C
Product Overview
This high-performance lithium-ion battery pack is specifically designed for custom golf carts and electric mobility applications. The BAKTH-18650-5S5P-3DC model features a robust 18V 13Ah configuration with reliable power delivery and extended cycle life.
Technical Specifications
| Parameter | Specification |
|---|---|
| Battery Type | Li-Ion (LiCoO2 cathode) |
| Max Charge Voltage | 21V |
| Discharge Cut-off Voltage | 13.75V |
| Max Charge Current | 3A |
| Max Discharge Current | 3A |
| Charging Mode | CC/CV |
| Connector Type | 3 DC |
Key Features
- Automated production line ensures consistent quality
- Strict quality control measures
- High energy density design
- Wide operating temperature range (-20°C to 60°C)
- 12-month warranty included
- OEM services available
Applications
Ideal for electric wheelchairs, golf carts, electric vehicles, and various home appliances requiring reliable power solutions.
