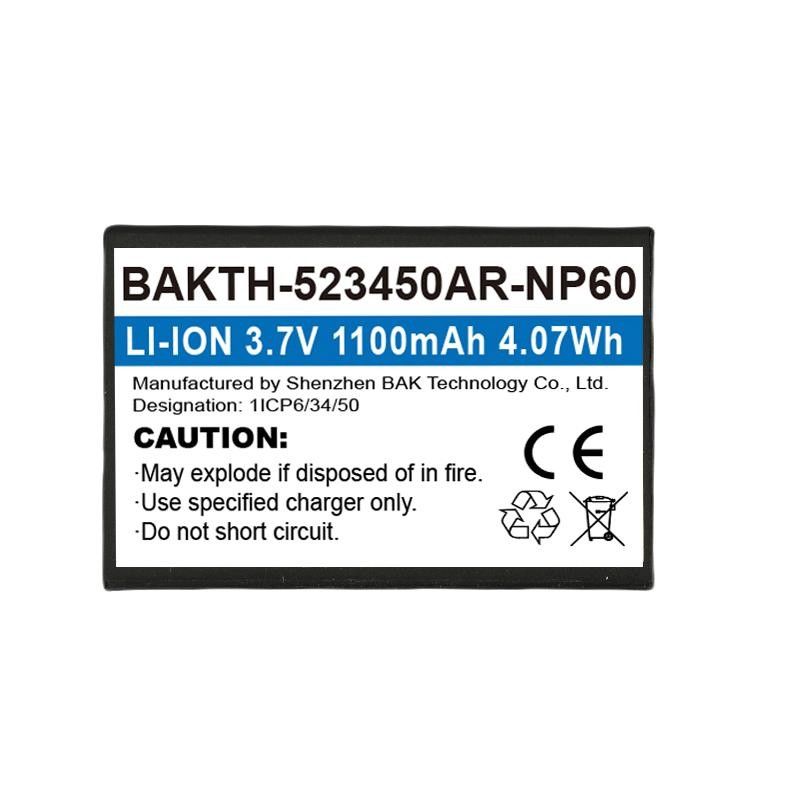

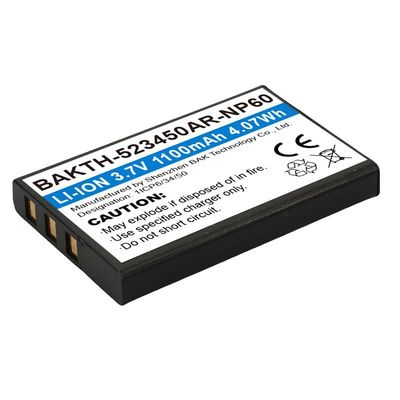

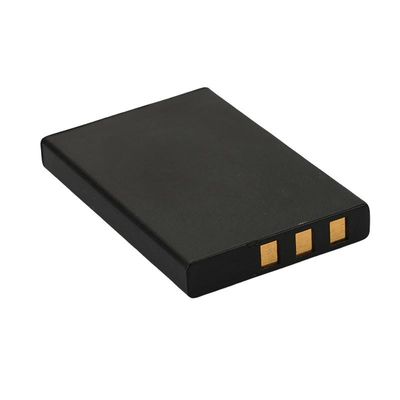

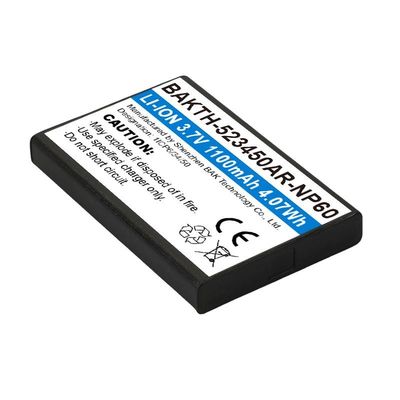

1200mAh Lithium Ion Battery Pack 523450A NP60 For Camera Marketing
| Place of Origin | CN |
|---|---|
| Brand Name | BAKTH/OEM |
| Certification | IEC62133-2:2017 Adm1:2021, UL2054, UN38.3, CE, UKCA, C-TICK |
| Model Number | BAKTH-523450AR-NP60 |
| Minimum Order Quantity | 10KPCS |
| Price | US$2.0~US$4.0/PC |
| Packaging Details | 300PCS/Carton |
| Delivery Time | 4-6 weeks |
| Payment Terms | T/T |
| Supply Ability | 100KPCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Discharging Temp | -20-45℃ | Service | OEM/ODM Accpeted |
|---|---|---|---|
| Warranty | 1 Year | Safety | With Secondary Protection BMS, Pass UL2054 |
| Battery Type | Li Ion Battery Pack | Charge Cycles | 300 Times |
| Max Discharge Current | 1.2A | Charge Temperature | 0°C To 45°C |
| Highlight | 1200mAh Lithium Ion Battery Pack,1200mAh custom li ion battery pack,523450A Lithium Ion Battery Pack |
||
Product Description
1200mAh Lithium Ion Battery Pack 523450A NP60 For Camera Marketing
Product Attributes
| Discharging Temp | -20-45℃ |
| Service | OEM/ODM accpeted |
| Warranty | 1 Year |
| Safety | With secondary protection BMS, pass UL2054 |
| Battery Type | Li ion Battery Pack |
| Charge Cycles | 300 times |
| Max Discharge Current | 1.2A |
| Charge Temperature | 0°C to 45°C |
Product Description
Lithium Battery 3.7V 1200mAh 523450A for Camera for US marketing
Product Overview
The lithium ion battery pack is rechargeable high capacity in limited dimensions, with many advantages, such as high energy density, long cycles and self-discharging consumption, quick charging, etc. This battery has passed IEC62133, UN38.3, UL2054, UKCA, C-TICK certificates, comply with ROHS&REACH standard.
As custom battery pack manufacturer, our factory have 100Kpcs/monthly production ability to meet customer's custom battery pack need. From battery pack design, BMS (battery management system) design, battery assemble, all finished in our factory. As the professional lithium ion battery pack manufacturers, we mainly focus to improve our production ability, provide customized battery service to meet customers' requirements.
Specification
| 1 | Normal Voltage | 3.7V |
| 2 | Nominal Capacity | 1200mAh (Standard charge & discharge) |
| 3 | Minimum Capacity | 1150mAh |
| 4 | Max Charge Voltage | 4.2V (CC/CV) |
| 5 | Discharge cut-off voltage | 2.4V (limited by PCB) |
| 6 | Standard Charge | 0.2C (CC charge to 4.2V, then CV to 0.02C cut off) |
| 7 | Standard Discharge | 0.2C (CC Discharge to 2.5V) (limited by PCB) |
| 8 | Max. Charge Current | 0.2C(0℃~10℃) 0.5C Max (0℃~10℃) |
| 9 | Max. Discharge Current | 1C |
| 10 | Humidity range | 45-75% RH (non-condensing) |
| 11 | Impedance | ≤230mΩ (AC Impedance, 1000 Hz) |
| 12 | Rechargeable lithium cell | 523450AR (almunium case battery) |
| 13 | Battery Weight | Approx:30g |
| 14 | Battery Dimension | 53*35.6*7.3mm Max |
Features
- Certifications and Safety - Passed the IEC62133-2:2017 Adm1:2021, UL2054, UN38.3, CE, UKCA, C-TICK certificates.
- Compliant with RoHS, REACH standards, ensuring environmental safety and global market accessibility.
- Stable chemistry resists thermal runaway.
- Portable battery pack with case, suitable for camera, electronic device, and other medical devices.
Qualification
Guarantee
- Warranty Policy - 1 year warranty.
- Technology Guidance - Offering technology support service.
- Custom battery pack design: Support available.
