Universal Lithium Ion Battery Pack Portable 3.7V 3600mAh With Large Capacity
| Place of Origin | DongGuan,China |
|---|---|
| Brand Name | BAKTH |
| Model Number | BAKTH-874080 PACK |
| Minimum Order Quantity | 2PCS |
| Price | USD3.00~20.00/PC |
| Packaging Details | Standard Export packing |
| Payment Terms | T/T,Western Union,MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Normal Voltage | 3.7V | Nominal Capacity | 3600mAh |
|---|---|---|---|
| Max Charge Voltag | 4.2V | Discharge Cut-off Voltag | 2.75V (limited By PCB) |
| Max. Charge Current | 0.2C（10~20℃） 0.5C (20~45℃ | Size | 85x43x9.5mm |
| Weight | 80g | ||
| Highlight | Universal Lithium Ion Battery Pack,Universal 3.7 v rechargeable battery,Portable 3.7 v rechargeable battery |
||
Product Description
Universal Lithium Ion Battery Pack Portable 3.7V 3600mAh With Large Capacity
Key Specifications
| Attribute | Value |
|---|---|
| Normal Voltage | 3.7V |
| Nominal Capacity | 3600mAh |
| Max Charge Voltage | 4.2V |
| Discharge cut-off voltage | 2.75V (limited by PCB) |
| Max. Charge Current | 0.2C（10~20℃） 0.5C (20~45℃) |
| Size | 85x43x9.5mm |
| Weight | 80g |
Detailed Technical Specifications
| Product type | Lithium ion battery |
|---|---|
| Nominal capacity | 3600mAh |
| Nominal voltage | 3.6V |
| Max charge voltage | 4.2V |
| Discharge cut off voltage | 2.75V (limited by PCB) |
| Standard charge current | 0.2C |
| Standard discharge current | 0.2C |
| Max discharge current | 1C |
| Cycle life | 300 cycles |
| Charging Temperature | 10~45℃ |
| Discharging Temperature | -20 ~ 60℃ |
| Storage temperature |
≤1 month: 45~60℃ ≤3 months: 25~45℃ ≤12 months: -20~25℃ ≤60%RH Recharge every 6 months |
| Humidity Range | 0~85% (non-condensing) |
| Dimension |
L:85±0.15mm W:43±0.15mm T:9.5±0.15mm |
| Max charge current | 0.2C(10~20℃) 0.5C (20~45℃) |
| Warranty | 12 Months |
| Impedance | ≤220mΩ (AC Impedance, 1000 H) |
| Rechargeable or not | Yes |

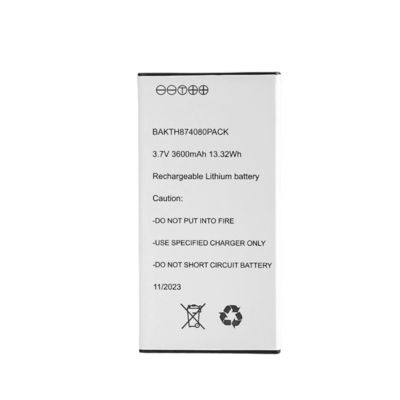

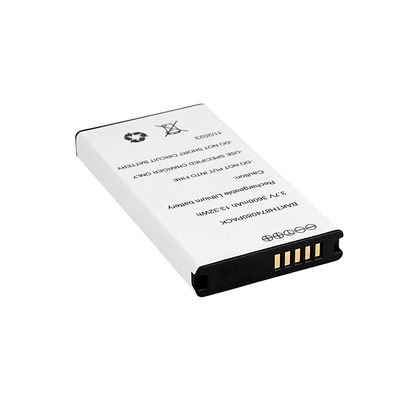

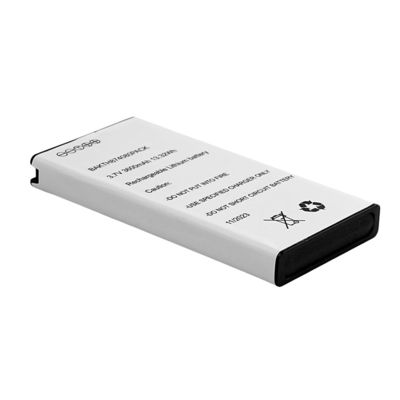

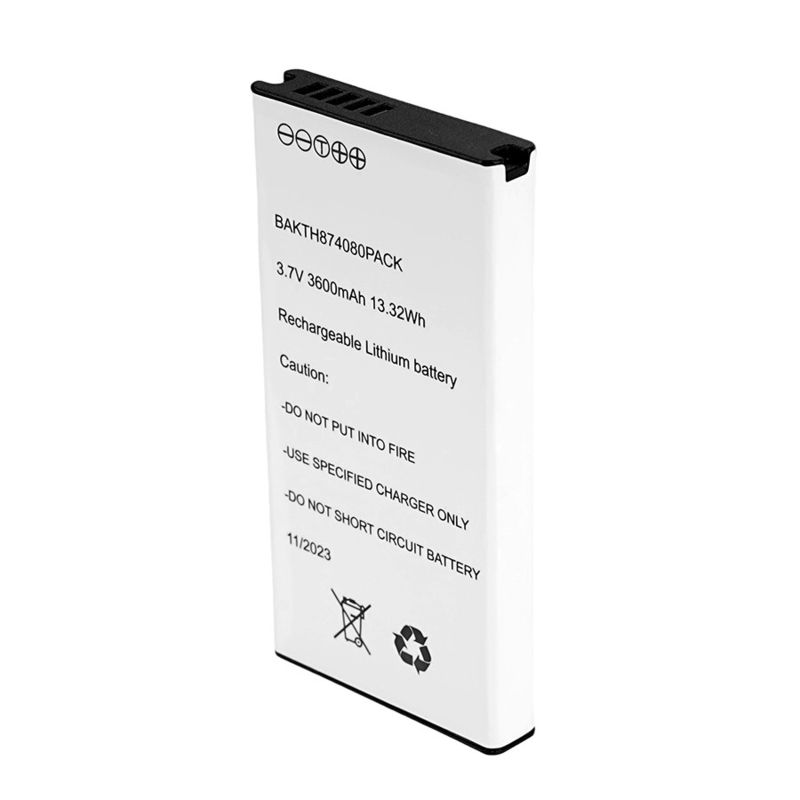

Product Images
