10S 30A Smart BMS With Adjustable Temperature Protection For Multi-Device Compatibility
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH/OEM/Neutral |
| Certification | Certified with RoHS / IEC62133/UL2054 certification |
| Model Number | BAKTH-0080200041 -01 |
| Minimum Order Quantity | 1-200PCS |
| Price | USD15.0-USD30.0/PCS |
| Packaging Details | Standard Export Packing |
| Delivery Time | 10-15 working days |
| Payment Terms | ,T/T |
| Supply Ability | Daily Delivery Capability: Approx. 1,800 units/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | BAKTH-0100400032-01 | Series Supported | 10S |
|---|---|---|---|
| Continuous Discharge Current (A) | 30A | Balancing Type | Active Balancing / Passive Balancing (Optional) |
| Over Charge Detection Voltage(Cell) | 4.250V±0.050V （Adjustable） | Over Discharge Detection Voltage(Cell) | 2.50V±0.050V（Adjustable） |
| Customization Available | Yes | Warranty | 12 Months |
| Highlight | 10S 30A BMS PCB,30A battery management system,10S BMS with warranty |
||
Product Description

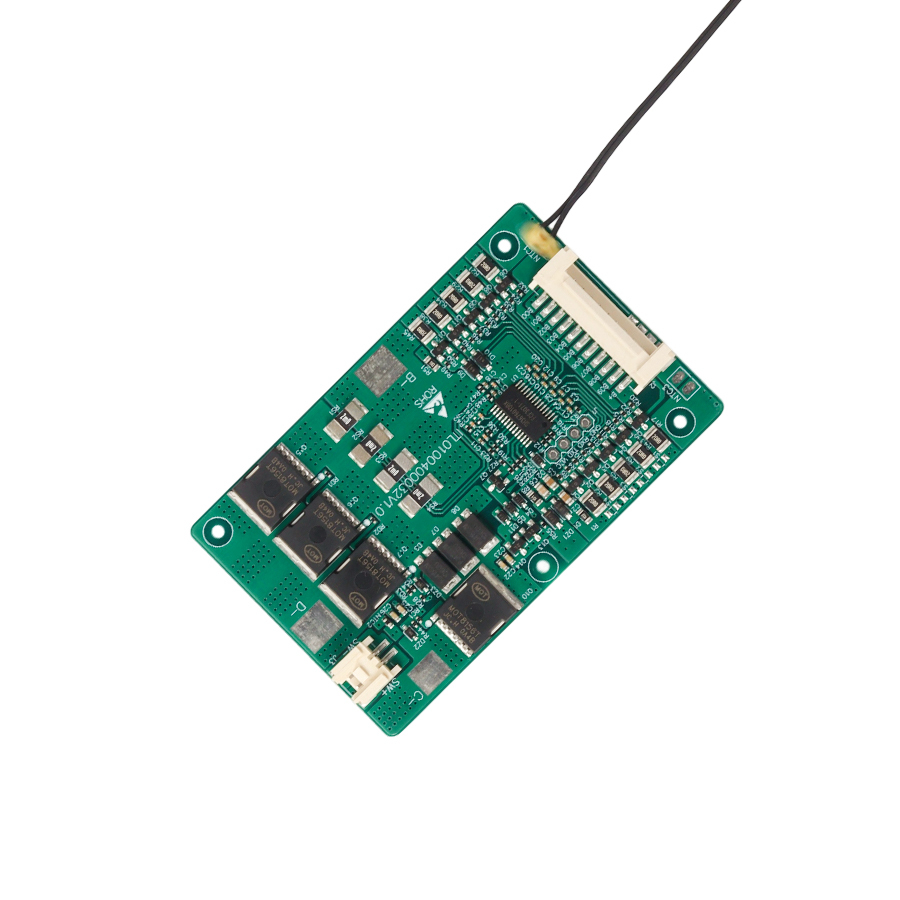

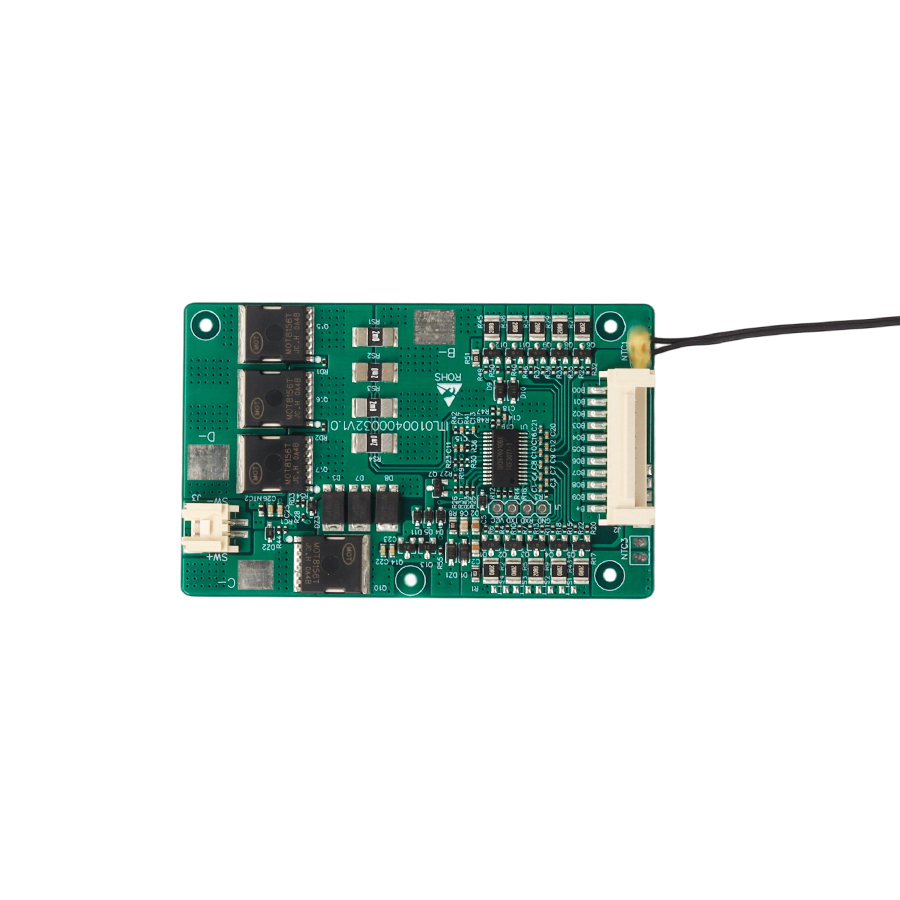

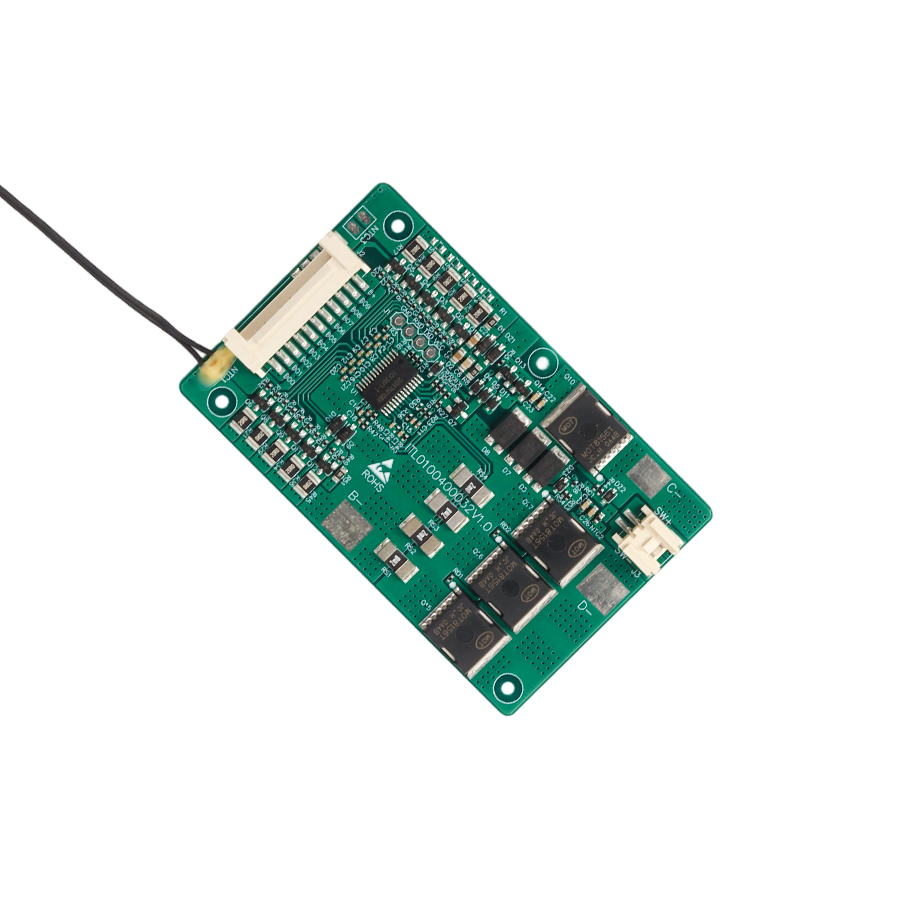

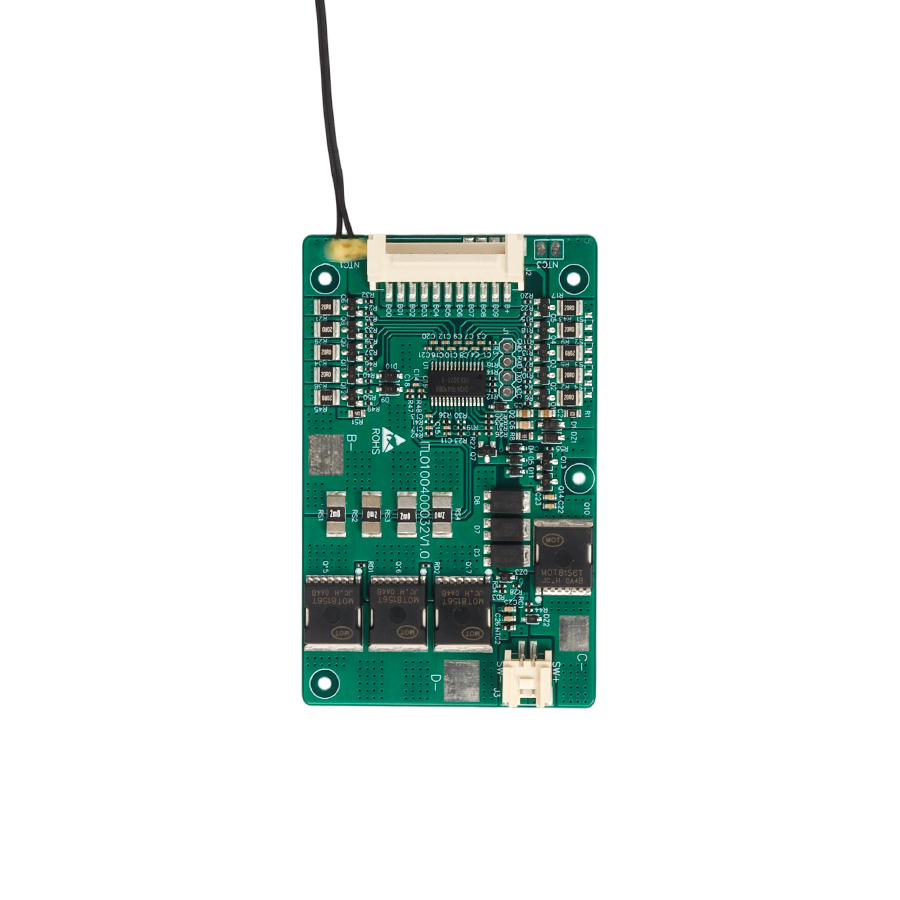

10S 30A Smart BMS With Adjustable Temperature Protection For Multi-Device Compatibility
Product Specifications
| Attribute | Value |
|---|---|
| Model Number | BAKTH-0100400032-01 |
| Series Supported | 10S |
| Continuous Discharge Current (A) | 30A |
| Balancing Type | Active Balancing / Passive Balancing (Optional) |
| Over charge detection voltage(Cell) | 4.250V±0.050V （Adjustable） |
| Over Discharge Detection Voltage(Cell) | 2.50V±0.050V（Adjustable） |
| Customization Available | Yes |
| Warranty | 12 months |
Technical Details
| Compatible Interface | / | Continuous Discharge Current | 30A |
| Over charge detection voltage(Cell) | 4.250V±0.050V Adjustable | Dimensions | Length 80 mm Width 50 mm Height 9.0 mm |
| Over Discharge Detection Voltage(Cell) | 2.50V±0.05V Adjustable | Compliant certification standards | IEC62133 |
| Over Current Discharge | 45.0A±60.0A Adjustable | Type of Protective Board | 10S LiFe-PO4 battery protection board |
| Over Current Charge | 10.0A±20.0A Adjustable | Protection | OV, UV, OC, SC, OT, Balance |
| Discharging Temperature | -20~55℃ Adjustable | Charge Temperature | -5~55℃ Adjustable |
Product Description
The 10S 30A Smart Protection Board offers advanced temperature management, featuring adjustable discharge (-20°C to 55°C) and charge (-5°C to 55°C) ranges to ensure safe operation across diverse environments. Ideal for lithium batteries in drones, electric vehicles, and energy storage systems, this BMS combines robust performance with customizable thermal thresholds, safeguarding your devices under extreme conditions while optimizing charging efficiency.
Key Features
- Built-in protections for over-voltage, under-voltage, short-circuit, over-current, and temperature to ensure safe battery operation
- Supports active balancing function to extend battery pack life and improve consistency
- Modular design for easy integration, suitable for various industrial and solar system applications
Application Scenarios
Energy Storage Systems (ESS)
Electric Power Tools
Home Solar Battery Systems
Drones and DIY Custom Li-ion Battery Packs
Warranty & Support
- 12-month warranty with lifetime technical support
- 100% tested before shipment to ensure safety and reliability
- Dedicated account manager and technical support with 48-hour response
